Place of Origin Zhejiang, China
Brand Name BIGM
Model Number TZ-7310 AZ-7310
Max. Current 10A
Max. Voltage 480V
Operating Temperature 60
Protection Level IP40

Specifications

1.Rated voltage:125V 250V 480V 8VDC 14VDC 30VDC
2.Rated current:10A
3.Taiwan Tend Standard

1.Specification:

Rated Voltage
(V)		Noninductive Load
(A)		Inductive Load
(A)
Resistance LoadLamp LoadInductive LoadMotor Load
NCNONCNONCNONCNO
125VAC
250VAC
480VAC		10
10
3		3
2.5
1.5		1.5
1.25
0.75		10
10
2.5		5
3
1.5		2.5
1.5
0.75
8VDC
14VDC
30VDC
125VDC
250VDC		10
10
8
0.5
0.25		3
3
3
0.4
0.2		1.5
1.5
1.5
0.4
0.2		6
6
6
0.05
0.03		6
6
5
0.05
0.03		5
5
2.5
0.05
0.03

  NOTES:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.



Operation speed0.5mm-50cm/sec
Operating frequencyMechanical: 120 operations/min.
Electrical: 30 operations/min.
Contact resistance15mΩ max. (initial value)
Insulation resistance100mΩ min. (at 500VDC)
Dielectric strength1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration frequency10-55HZ,1.5mm double amplitude
ShockMechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature-5°C to +65°C
Humidity<95% RH
LifeMechanical: 10,000,000 operations above (under rated OT)
Electrical: 500,000 operations above
WeightAbout 60g
Degree of protectionIP65



ModelsTZ-7100TZ-7110TZ-7310TZ-7311TZ-7312TZ-7120
OF Max.600g600g600g600g600g150g
RF Min.100g100g100g100g100g40g
PT Max.2.0mm2.0mm2.0mm2.0mm2.0mm13.5mm
OT Min.0.8mm5.0mm6.0mm6.0mm6.0mm4.0mm
MD Max.0.8mm0.8mm0.8mm0.8mm0.8mm3.2mm
OP30.5 ±0.8mm44 ±1.2mm21.8 ±1.2mm33.3 ±1.2mm33.3 ±1.2mm25 ±1mm
FP     35mm



ModelsTZ-7140TZ-7121TZ-7141TZ-7124TZ-7144TZ-7166
OF Max.220g180g240g200g280g120g
RF Min.60g50g80g60g100g
PT Max.8.5mm11.0mm6.5mm11mm6.5mm250mm
OT Min.2.5mm3.0mm2.0mm3.0mm2.0mm11mm
MD Max.2.0mm2.4mm1.5mm2.4mm1.5mm
OP25 ±1mm40 ±1mm40 ±1mm50 ±1.2mm50 ±1.2mm
FP32mm 46mm 56mm

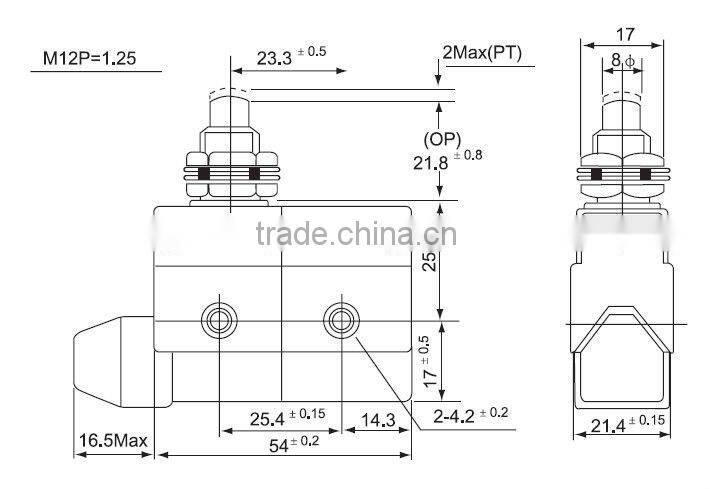

TZ-7310 size

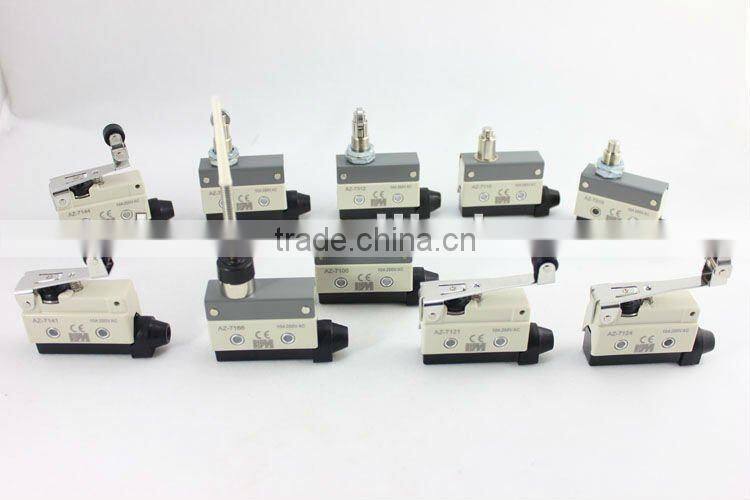

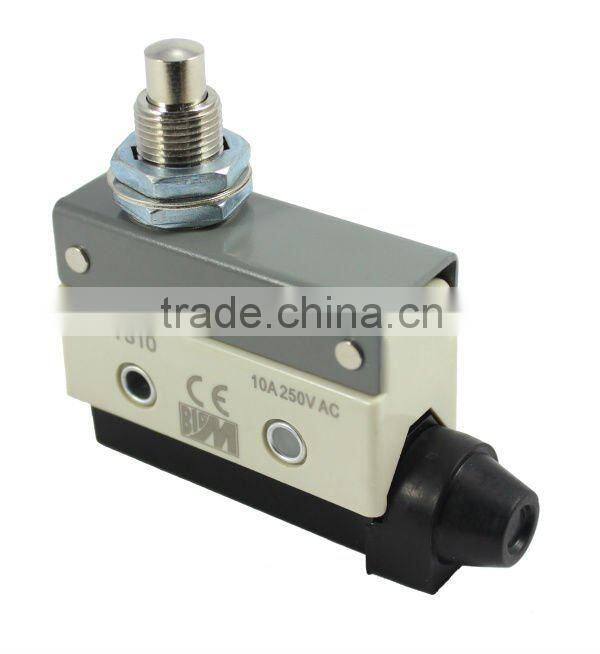

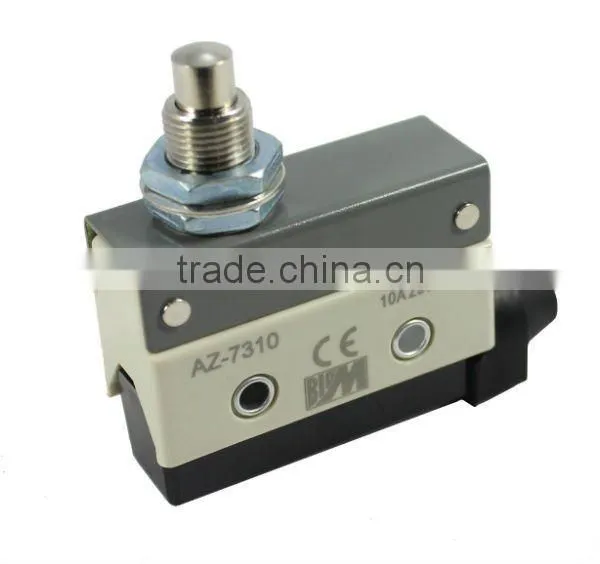

2.Product photo
