YUMO ISC3806-003G2000BZ3-5L 2000PPR Shaft encoder
Incremental pulse encoder: SPC
Absolute pulse coder: APC
Both are generally applied to the detection element speed control or position control system.
Incremental encoder and absolute encoder distinction
According to the working principle can be divided into incremental encoder and absolute categories.
Incremental encoder is to displacement into a periodic electrical signal, and then transform the electrical signal into a counting pulse, represents the magnitude of displacement by the number of pulses. Absolute encoders determine each position corresponds to a digital code, so it only shows the value of the starting and ending position measurement, but not to the middle of the process of measurement.
Incremental rotary encoder output pulse is rotated by counting device to know its location, when the encoder does not move or power outage, counting on internal memory to remember the location of the device. Thus, when the power failure, the encoder does not have any movement, when work calls, the encoder output pulse process, it can not have lost the pulse interference, otherwise, it will count the zero offset memory device, and this bias the amount of shift is no way to know in order to know the results only after the production error appears. shaft encoder
ISC3806 Shaft Encoder
| Product Description |
| Shaft diameter 6 mm ¦ or 8 mm ¦, clamping flange, housing diameter 38 mm ¦. |
| Low price at high performance, small volume, light weight, easy for installing |
| Applications. |
| Measure the distance, stop dog positioning, |
| Curtained door, textile machinery |
| 1. ELECTRICAL SPECIFICATIONS |
| A). Output wave: Square wave |
| B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase) |
| C). Current consumption: d120mA |
| D). Response Frequency: 0~100KHz |
| E). Output phase difference: 90* |
| F. ) Supply voltage: 5V DC, 5-12V DC, 12-24V DC |
| G). Signal leve: LVHe85%Vcc, VLd0.3V |
| H). Number of pulses: 10, 15, 20, 30, 40, 50, 60, 100, 120, 125, 150, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 740, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500(Other number of pulse available on request) |
| I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage |
| 2. MECHANICAL SPECIFICATIONS |
| A). Speed without sealing: 5000rmp |
| B). Rotor moment of inertia: Appraisal 4.5x10-6Kgm2 |
| C). Starting torque without sealing: d1.5x 10-3Nm (+25*C) |
| D). Maximum load permitted on shaft: Radial: 20N; Axial: 10N |
| E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ |
| F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ |
| G). Working life: MTBFe25000h (+25*C, 2000rpm) |
| H). Weight: Appraisal: 130g (with 1 meter cable) |
| 3. ENVIRONMENTAL SPECIFICATIONS |
| A). Working humidity: 30~85% (No condensation) |
| B). Storage temperature: -40*C~100*C |
| C). Working temperature: -25*C~85*C |
| D). Protection class: IP54 |

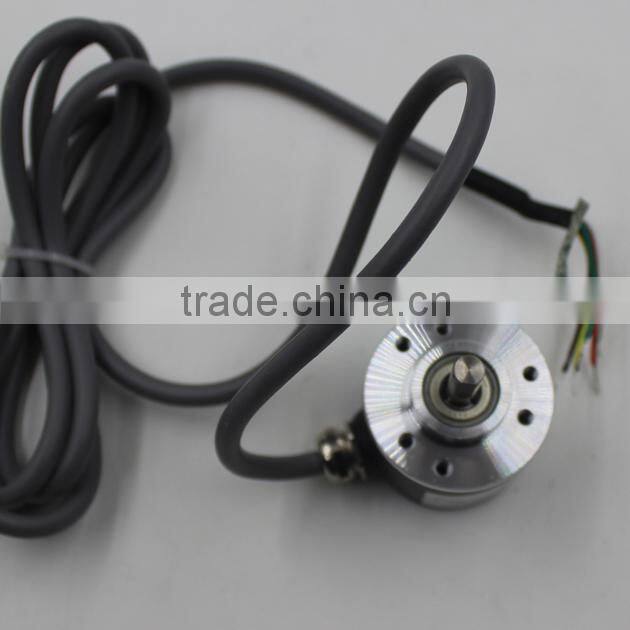

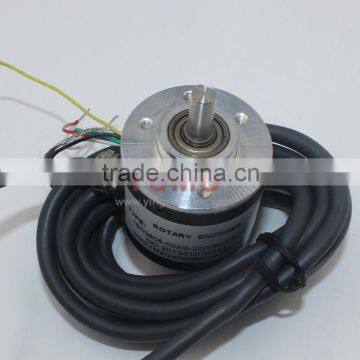

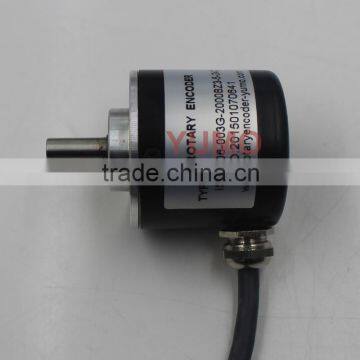

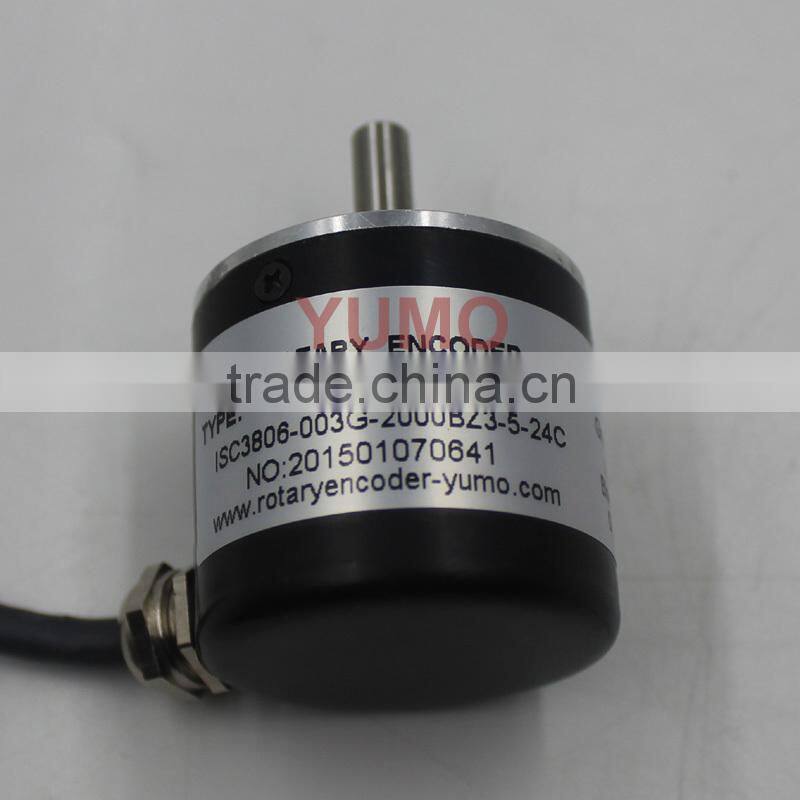

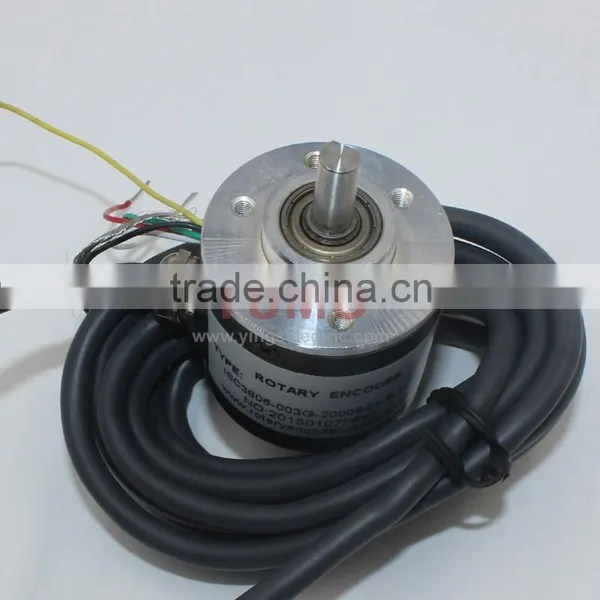

YUMO ISC3806 2000PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 2000PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 2000PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder
