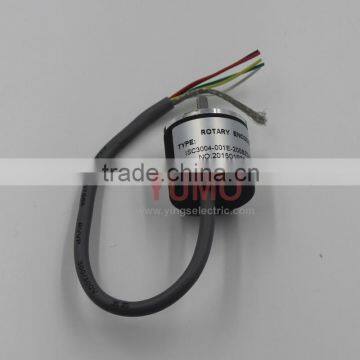

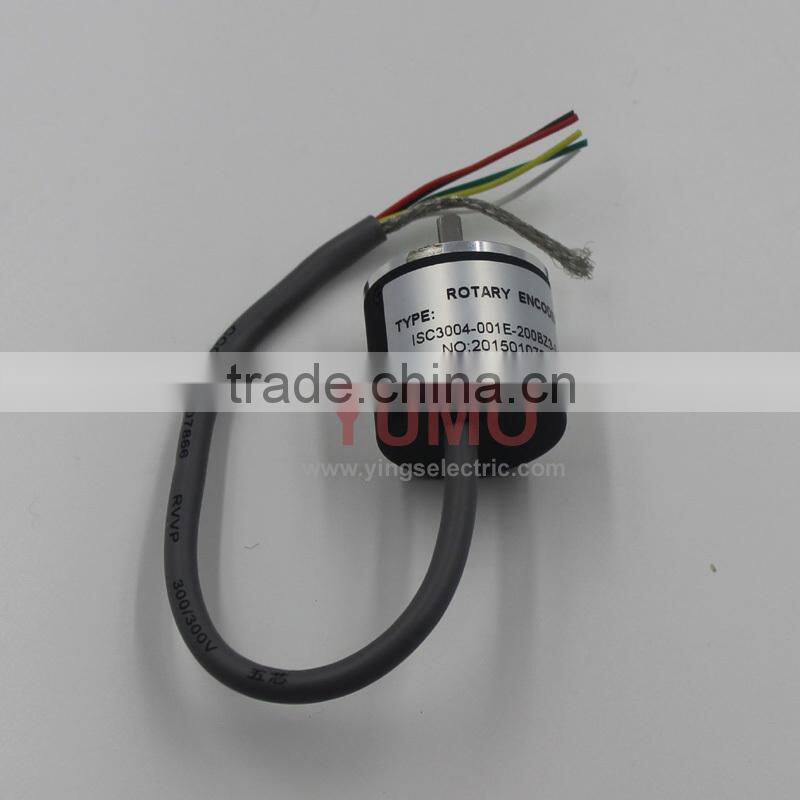

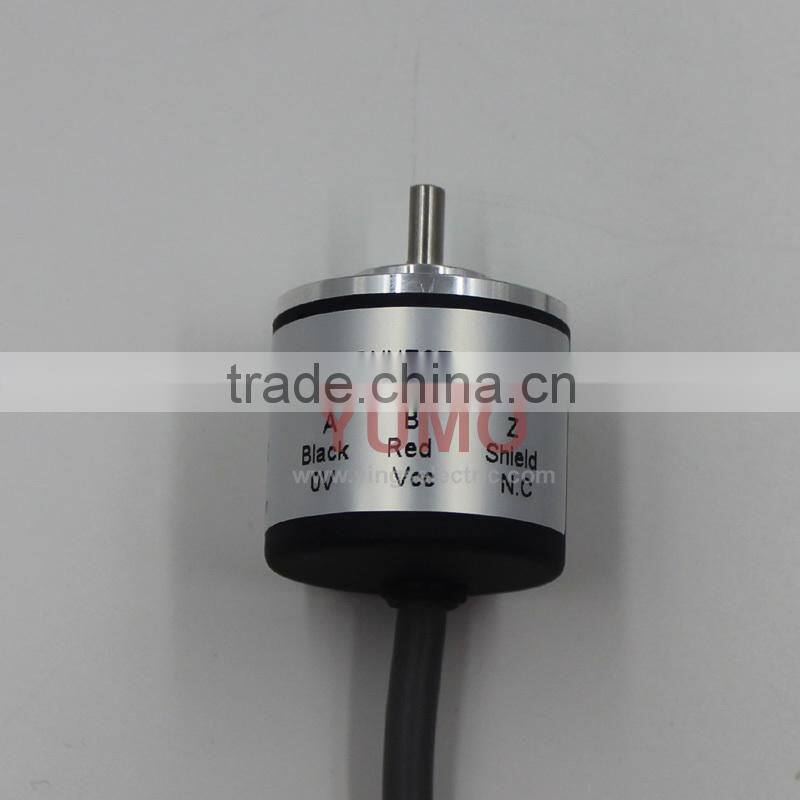

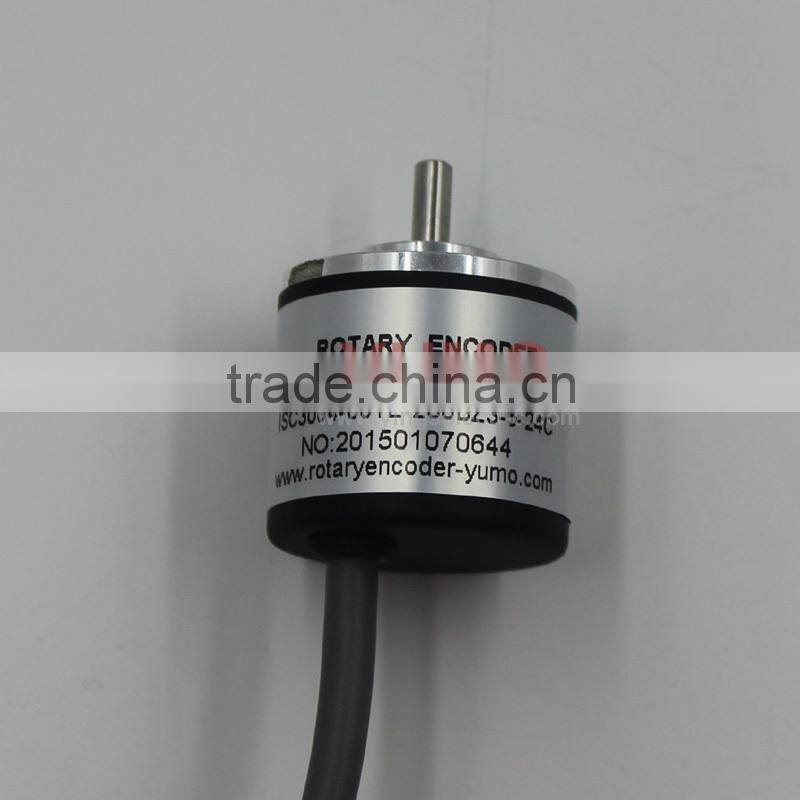

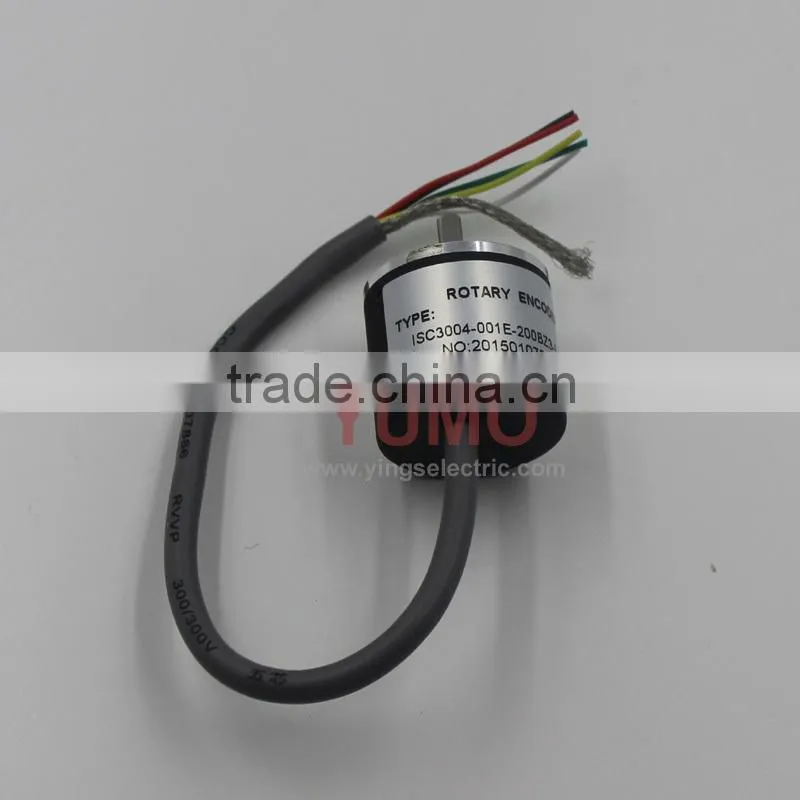

ISC3004-001E-200BZ3-5-24C  Shaft encoder

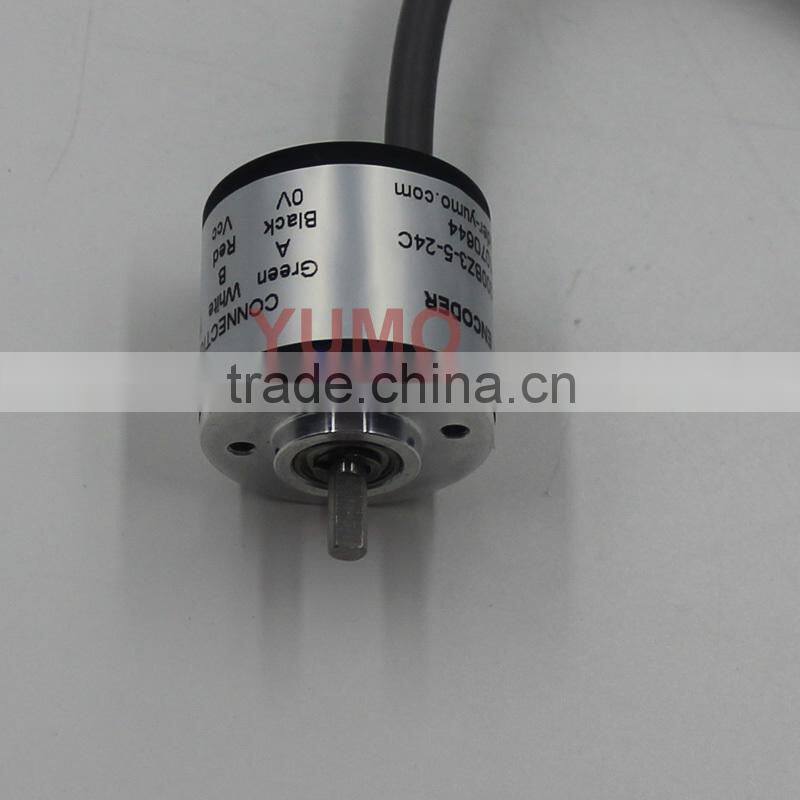

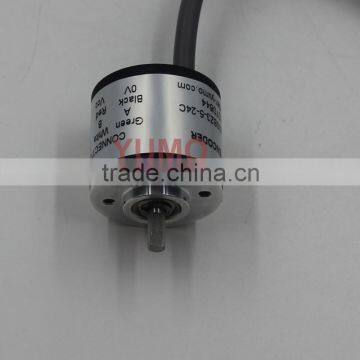

Shaft diameter 4mm or 6mm ¦, clamping flange, housing diameter 30 mm ¦.

Low price at high perfor mance, small volume, light weight, easy for intalling.

Connector:

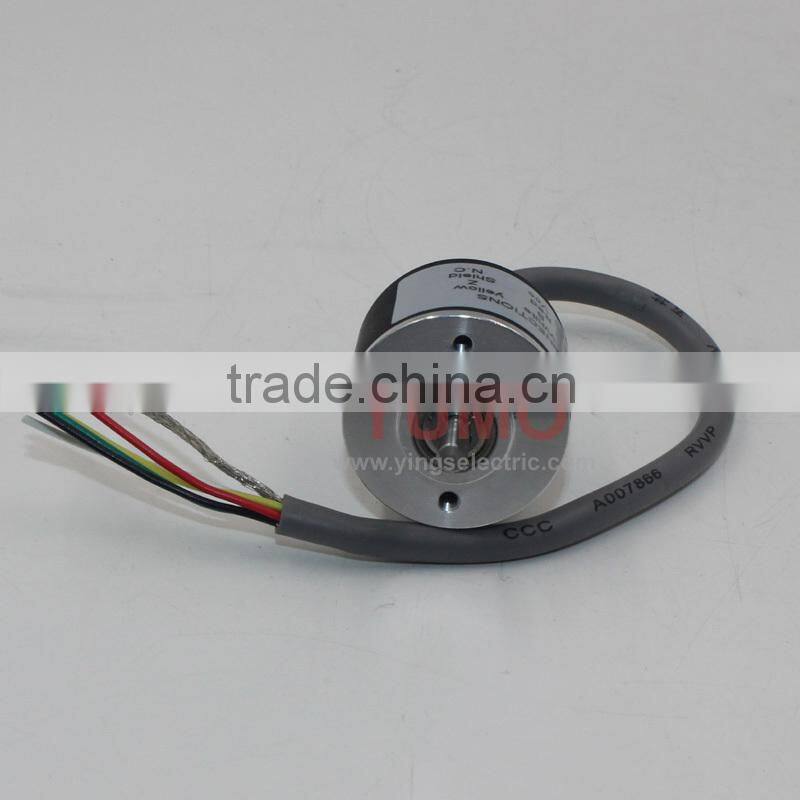

Cable axial, Cable radial, Plug axial, Plug radial.

Applications:
Control of transport vehicles, print machinery,
Fork truck, CNC- tooling- machinery,

1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave
B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase)
C). Current consumption: d120mA
D). Response Frequency: 0~80KHz
E). Output phase difference: 90+_45
F). Supply voltage: 7V DC,7-12V DC, 12-24V DC
G). Signal leve: LVHe85%Vcc, VLd0.3V
H). Number of pulses: 100, 200, 300, 360, 500 (Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage


2. MECHANICAL SPECIFICATIONS
A). Speed without sealing: 3000rmp
B). Rotor moment of inertia: Appraisal 3.5x10-6Kgm2
C). Starting torque without sealing: d6.0x 10-3Nm (+25*C)
D). Maximum load permitted on shaft: Radial: 35N, Axial: 10N
E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
G). Working life: MTBFe20000h (+25*C, 2000rpm)
H). Weight: Appraisal 60g (9 pin plug radial)

3. ENVIRONMENTAL SPECIFICATIONS

A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -40*C~100*C
C). Working temperature: -25*C~85*C
D). Protection class: IP54

 Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

     2).We make the PI for you.

     3).After you confirm the PI, we arrange the order for you after receiving your payment.

     4).After the goods finished, we send the goods out to you and tell you the tracking number.

     5).We will track your goods until you receive the goods.

Q: Is sample available and free?
A:Sample is available , but the cost should be paymentby you.
    The cost of sample will be refund after further order.

Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...

Q: What's your warranty ?
A: 1years.
Q: What's the delivery time ?
A: It usually takes 2-5 days after we confirm the payment,
     but specific time should be based on the order quantity.
