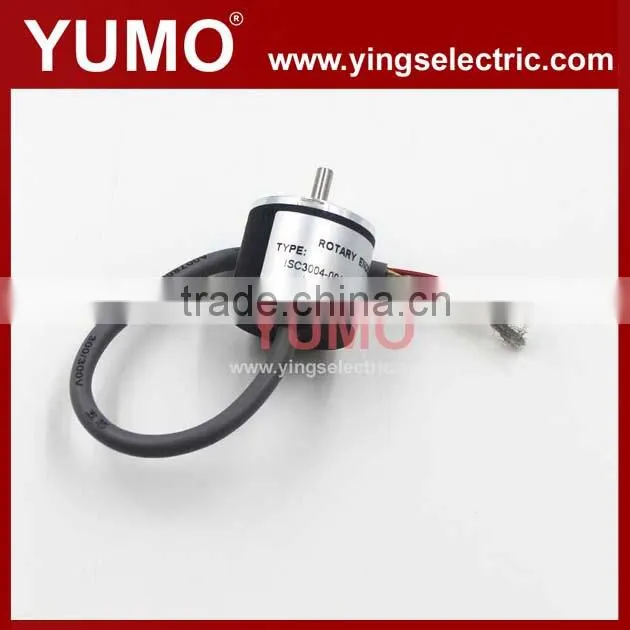

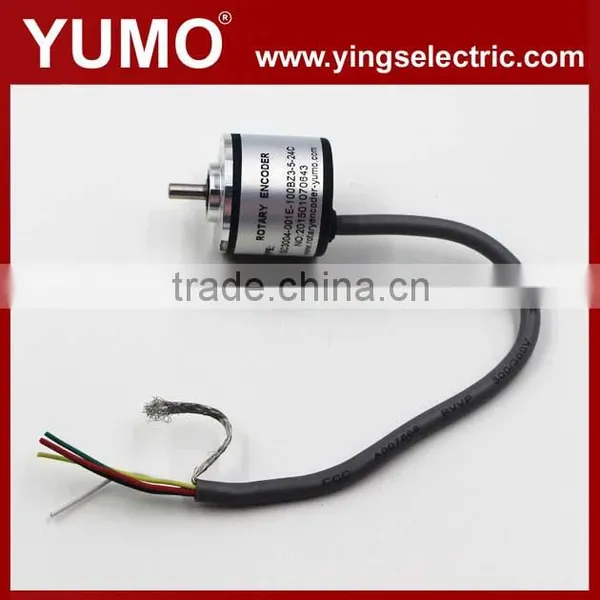

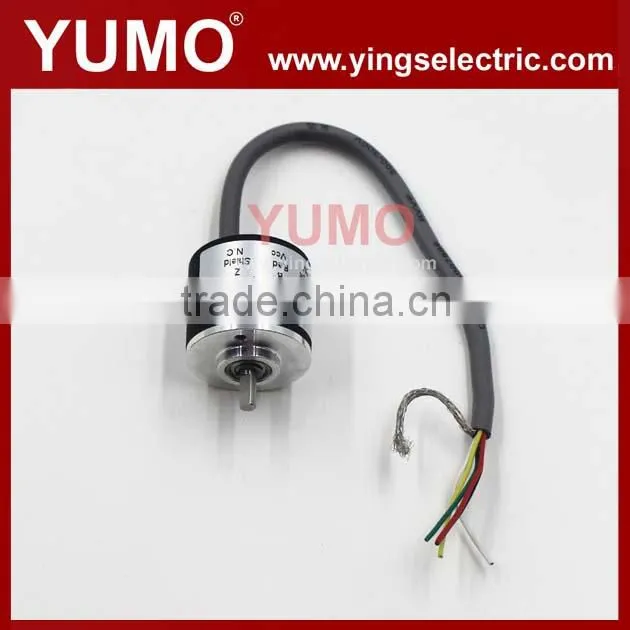

YUMO ISC3004 diameter 30mm shaft 4mm 100 pulse A B Z phase mini solid shaft price incremental rotary encoder
m 100
| ELECTRICAL SPECIFICATIONS | |
| Output wave | Square wave |
| Output signals | A,B, (Line driver output A,A(_),B,B(_), phase) |
| Current consumption | ≤120mA |
| Response Frequency | 0~80KHZ |
| Output phase difference | 90º±45º |
| Supply voltage | 5V DC,5-12V DC,12-24V DC |
| Signal level | VH≥85% Vcc, VL.≤0.3V |
| Number of pulses | 100,200,300,360,500 |
| (Other number of pulse available on request) | |
| Output circuit | Open collector NPN, Push pull Line driver,(5V DC only) |
| MECHANICAL SPECIFICATIONS | |
| Speed without sealing | 3000rmp |
| Rotor moment of inertia | Appr.3.5×10-6Kgm² |
| Starting torque without sealing | ≤2.0×10-3NM (+25℃) |
| Maximum load permitted on shaft | Radial 20N,Axial 10N |
| Shock resistance | 980m/s²,6ms, 2 times each on XYZ |
| Vibration proof | 50m/s²,10~200Hz,2 hours each on XYZ |
| Working life | MTBF≥20000h(+25℃,2000rpm) |
| Weight | Appr.60g(with 0.5 meter cable) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity | 30~85%(No condensation ) |
| Storage temperature | -40℃~100℃ |
| Working temperature | -25℃~85℃ |
| Protection class | IP54 |

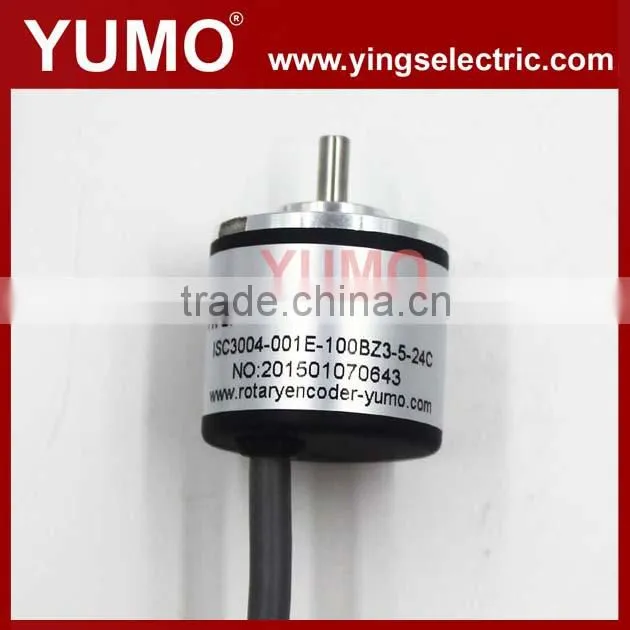

YUMO ISC3004-001E-100BZ3-5-24C Shaft encoder
Shaft diameter 4mm or 6mm ¦, clamping flange, housing diameter 30 mm ¦.
Low price at high perfor mance, small volume, light weight, easy for intalling.

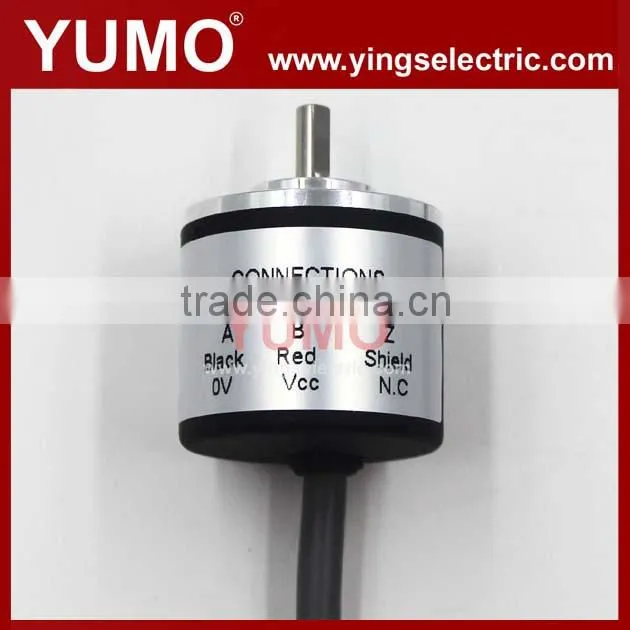

Connector:
Cable axial, Cable radial, Plug axial, Plug radial.
Applications:
Control of transport vehicles, print machinery,
Fork truck, CNC- tooling- machinery,
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
