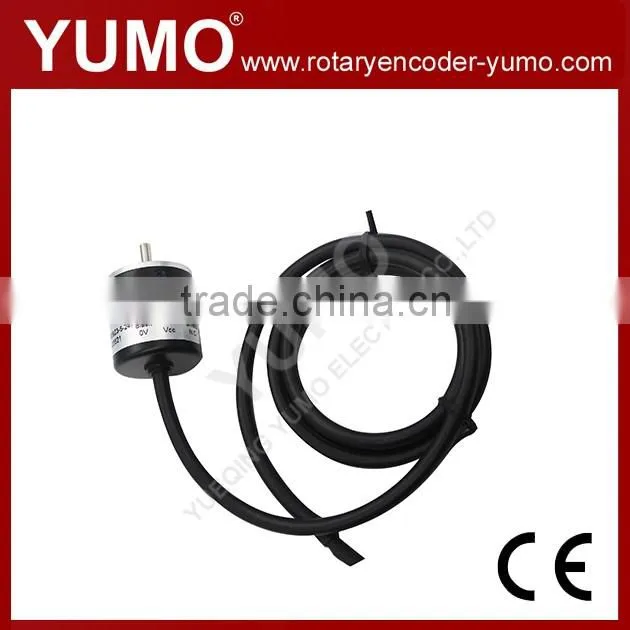

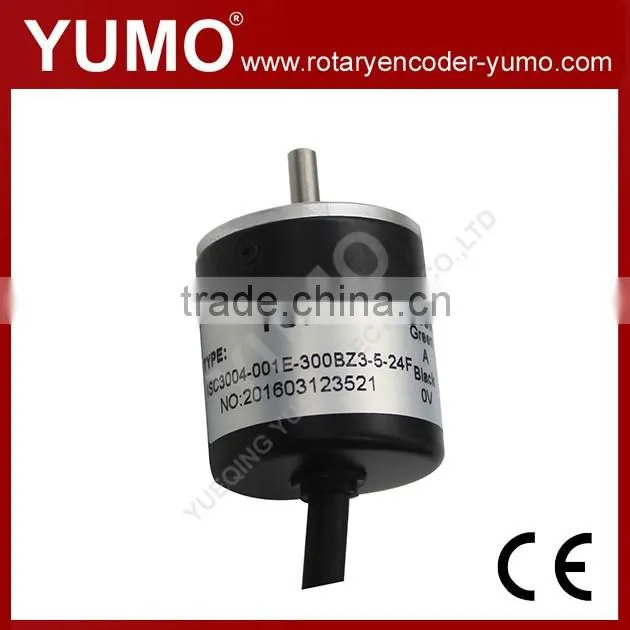

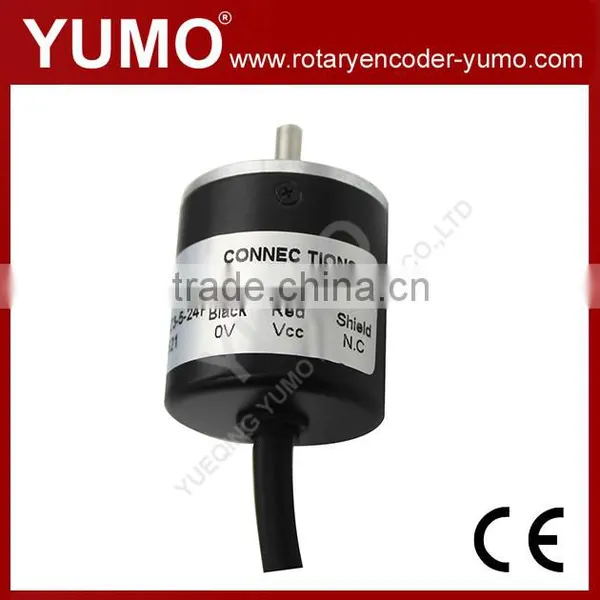

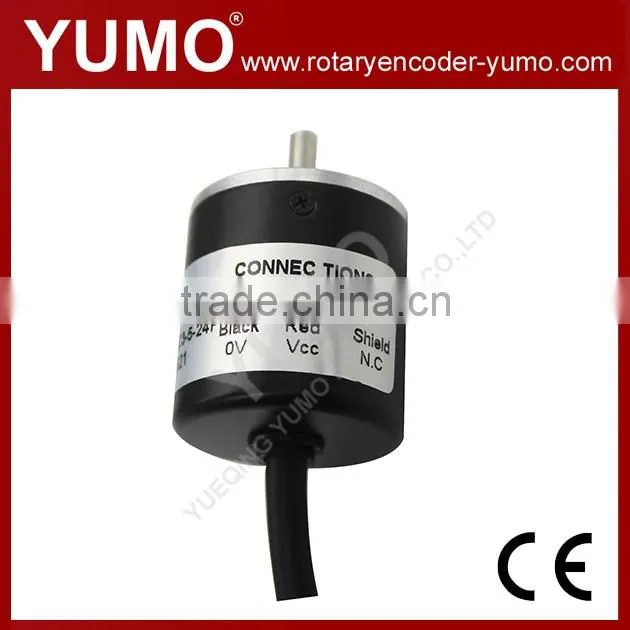

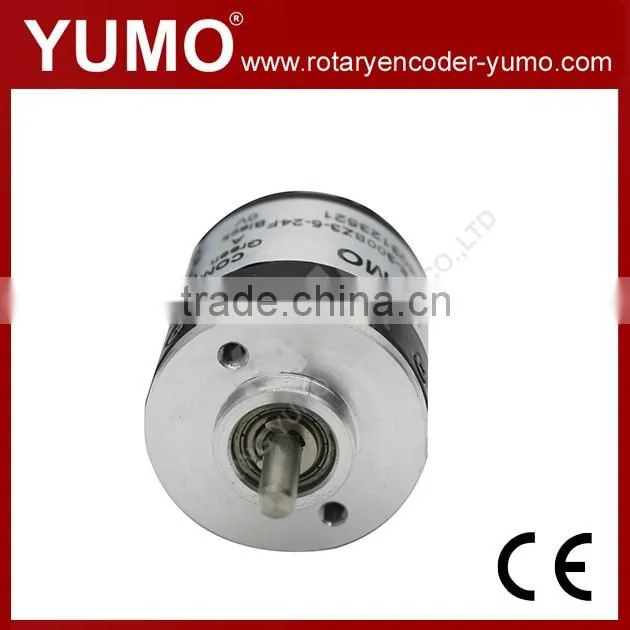

YUMO ISC3004 diameter 30mm 300 pulse A B Z phase mini solid shaft price incremental rotary encoder



Product Description
                                                                 ==      Product Detaile       ==



  VERSION OF TYPE SERIES



  1

I(Incremental encoder)

A(Absolute encoder)

    2

S(Solid shaft)

H(Hollow shaft)

C(Cone shaft)

N(No shaft)



3





C(Common type)

H(Shock resistance type)

M(Manual type)

F(Flameproof type)

T(Wide working temperature range)

A(Through-hole hollow shaft type)

L(Flange adapters type)

R(High response frequency)

N(Synchronous flange type)

W(Sine ware type)

S(Airtight type)

U(With UVW phase type)





















ORDERING CODER



ISC   38    06     401    G    1024    BZ      1   --- 5      L

1        2      3        4      5       6        7        8      9     10



                    1

ISC: Type series

    2

38: housing diameter φ38mm

    3

6: Shaft diameter φ6mm

4

401: Sequence number

5

C: Plug radial

H: Plug axial

G: Cable axial

E: Cable axial

J: Rectangle plug radial

T: Rectangle plug axial

      6

1024: Number of pulses

           7

Output signals

A: A phase

AL: A phase and Z phase

AZ: A phase and Z phase

B: A,B phase

BL: A,B phase and Z phase

BZ: A,B phase and Z phase

      8

Width of Z phase (Tz)

No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T

      9

Supply voltage

5:5V DC

5-12: 5-12V DC

12-24: 12-24V DC

          10

Output circuit

C: Open collector NPN

F: Push pull

E: Voltage

L: Line driver AM26LS31

H: Line driver MC3487

D: Line driver SN75113

T: Line driver 26ET31B





Shaft diameter 4mm or 6mm ¦, clamping flange, housing diameter 30 mm ¦.



ELECTRICAL SPECIFICATIONS
Output wave Square wave
Output signals A,B, (Line driver output A,A(_),B,B(_), phase)
Current consumption  ≤120mA
Response Frequency 0~80KHZ
Output phase difference 90º±45º
Supply voltage 5V DC,5-12V DC,12-24V DC
Signal level VH≥85% Vcc, VL.≤0.3V
Number of pulses  100,200,300,360,500
 (Other number of pulse available on request)
Output circuit Open collector NPN, Push pull Line driver,(5V DC only)
MECHANICAL SPECIFICATIONS
Speed without sealing 3000rmp
Rotor moment of inertia Appr.3.5×10-6Kgm²
Starting torque without sealing ≤2.0×10-3NM (+25℃)
Maximum load permitted on shaft Radial 20N,Axial 10N
Shock resistance 980m/s²,6ms, 2 times each on XYZ
Vibration proof  50m/s²,10~200Hz,2 hours each on XYZ
Working life  MTBF≥20000h(+25℃,2000rpm)
Weight Appr.60g(with 0.5 meter cable)
ENVIRONMENTAL SPECIFICATIONS
Working humidity 30~85%(No condensation )
Storage temperature  -40℃~100℃
Working temperature -25℃~85℃
Protection class IP54
