Help CenterDTF450W Hydraulic Drum Machine
Related Products
Specifications
hydraulic drum machine1.Load capacity:450kg
2.Lifting height:600mm
3.Net weight:130kg
Characteristics
1. Heavy-duty design of 450kg loading weight; lift with pedals; Ergonomic handle is easy and safe to
operate with.
2. Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality
oil cylinder, maximum lifting height:600mm.
3. Automatic clamping tight the oil drum during lifting which is safety and reliable.

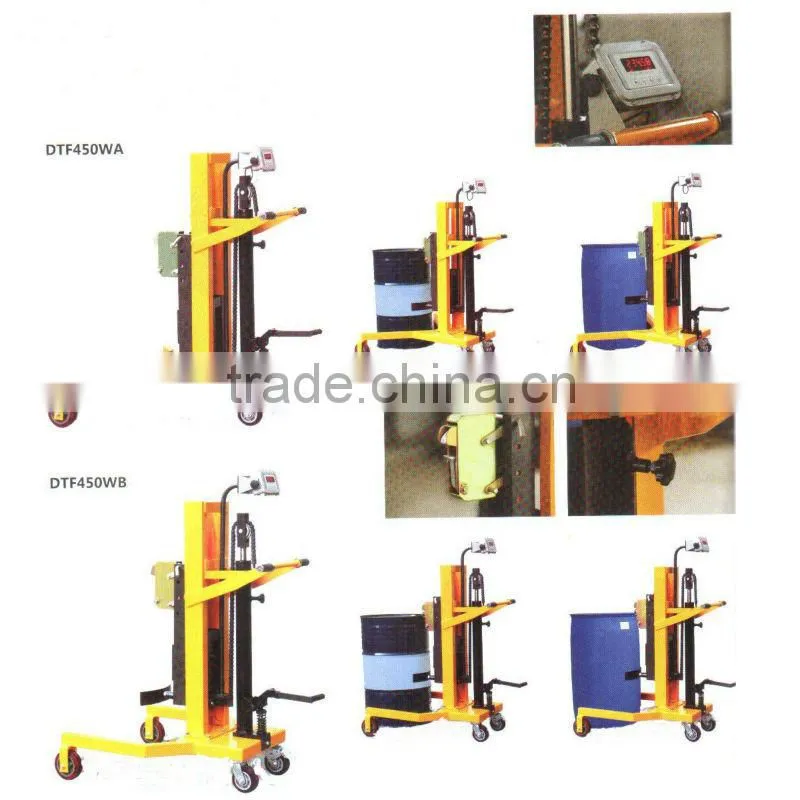

4. DTF450WA with straight legs is fit for handling oil drums placed along edges or corners and carring oil
drums from the direction of diagonal line of pallet.
5. DTF450WB with parallel legs is fit for handling oil drum placed on the floor.
6. With electronic scale built-in; operational
functions include: ZERO,TARE and weighting, of accuracy: ±3‰.
7. Applicable for transferring, weighting and pallet loading & unloading of all kinds of oil drums.
Specificaations
| Model | DTF450WA | DTF450WB | |
| Load Capacity | (kg) | 450 | 450 |
| Eagle mouth underlip height | (mm) | 850(superior hole),620(inferior hole) | 850(superior hole),620(inferior hole) |
| Lifting height | (mm) | 600 | 600 |
| Bottom height | (mm) | 170 | 170 |
| inner width of the front wheels | (mm) | 915 | 665 |
| Wheel specification(PU) | (mm) | Φ120Orientation wheel,Φ125Omni-directional wheel | Φ120Orientation wheel,Φ125Omni-directional wheel |
| Net weight | (kg) | 130 | 125 |

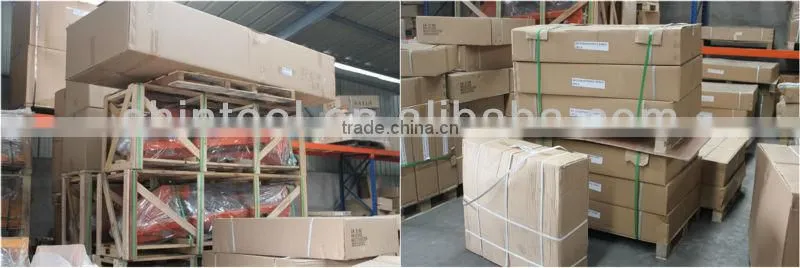

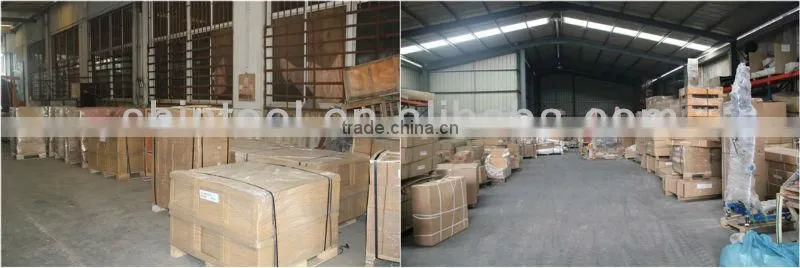

Packing & Shipping
Each set of product would be packed in standard way. New, clean and protective.
Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to DTF450WA Hydraulic Drum Truck with Scale, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of
SHINTOOLproduct which proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send quotation for the new replacement parts. Technical questions are welcome to SHINTOOL,SHINTOOL will reply in 24 hours.
