Help CenterDA40C Universal Multi-functional Drum Rotator
Related Products
Specifications

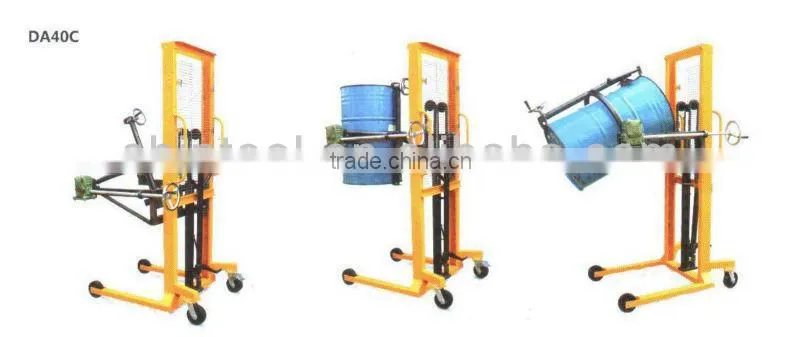

Universal multi-functional drum rotator DA40C1.Load capacity:400kg
2.Lifting height:1450mm
3.Net weight:163kg
Characteristics
1. Easy to lift,transport and tilt 55 gallon drum.
2. Available to carry the drum to rack (lower than 1450mm).
3. Tilt the drum 360° for oil empty.
4. Compact and reliable mechanism system fo fix drum.
5. It can lock a drum in vertical position to avoid spills or horizontal.
6. Position for draining through a faucet.
7. Easily lift with pedal and manual hoisting structure .
8. DA40C is suitable for 55 gallon steel drums.
Specifications
| Model | DA40C | ||
| Load Capacity (kg) | 400 | ||
| Available drum size (mm) | Φ570-600 steel drums or plastic container with thick edges | ||
| Lifting height (mm) | 1450 | ||
| Hand-cranking speed ratio (mm) | 1:60 | ||
| Inside width of the front landing legs (mm) | 630 | ||
| Outside width of the front landing legs (mm) | 810 | ||
| Length of the front landing legs (mm) | 770 | ||
| Dimension (L×W×H) (mm) | 1500×1000×2100 | ||
| Front wheel(Nylon) (mm) | Φ150 | ||
| Rear wheel(Nylon) (mm) | Φ150 | ||
| Net weight (kg) | 163 |
Packing & Shipping
Each set of product would be packed in standard way. New, clean and protective.
Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to Universal multi-functional drum truck DA40C, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of
SHINTOOLproduct which proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send quotation for the new replacement parts. Technical questions are welcome to SHINTOOL,SHINTOOL will reply in 24 hours.
