Home > Products > Tapping chuck > J45 Tapping Chuck
J45 Tapping Chuck
US$ 28.38 - 46.13
/ Set
10 Sets(Min. Order)
- QINGDAO/XINGANG
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | J45 |
Product Description

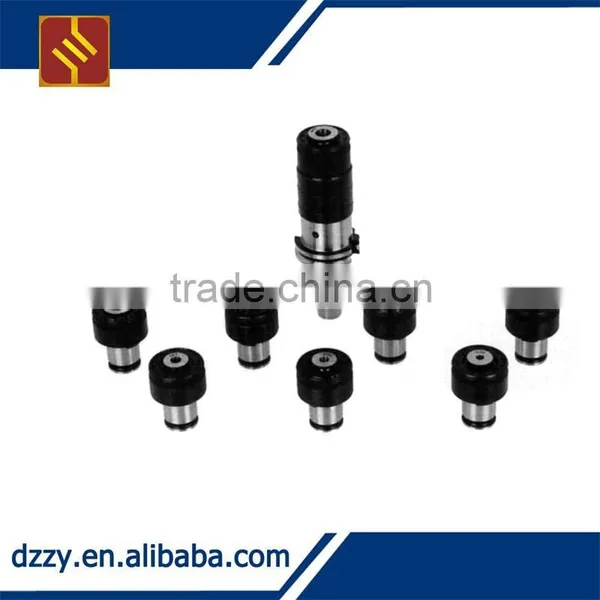

This unit is consisted of chuck and tap collet.The chuck has installled compensating device for thread pitch.There are two different tape collets,one with overload protection and one without.When using the tap collet with overlaod protection,the protection device can automatically release to avoid tap-break.Just nuts and you can get the different release torque quickly and conveninently.

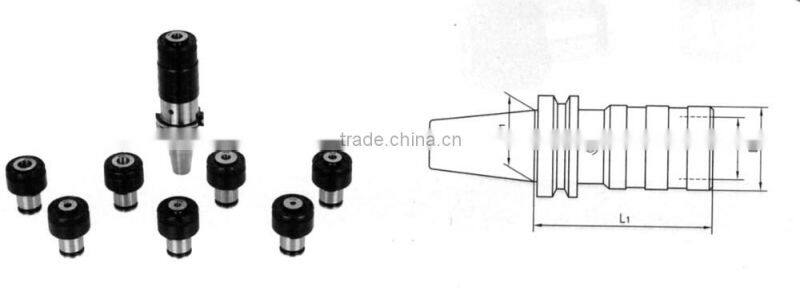

| Order No. | Shank | Tapping Range | D(mm) | D1(mm) | d(mm) | L1(mm) |
| D30-12 | DIN69871-30 | M3-M12 | 36 | 31.75 | 19 | 59 |
| D40-12 | DIN69871-40 | 44.45 | ||||
| D50-12 | DIN69871-50 | 69.85 | 62 | |||
| B30-12 | BT30 | 31.75 | 59 | |||
| B40-12 | BT40 | 44.45 | 64 | |||
| B50-12 | BT50 | 69.85 | 75 | |||
| D30-20 | DIN69871-30 | M7-M20 | 53 | 31.75 | 31 | 97 |
| D40-20 | DIN69871-40 | 44.45 | ||||
| D50-20 | DIN69871-50 | 69.85 | ||||
| B30-20 | BT30 | 31.75 | ||||
| B40-20 | BT40 | 44.45 | ||||
| B50-20 | BT50 | 69.85 | ||||
| D30-36 | DIN69871-30 | M14-M36 | 78 | 31.75 | 48 | 149 |
| D40-36 | DIN69871-40 | 44.45 | ||||
| D50-36 | DIN69871-50 | 69.85 | ||||
| B30-36 | BT30 | 31.75 | ||||
| B40-36 | BT40 | 44.45 | ||||
| B50-36 | BT50 | 69.85 |
| | |
| |
