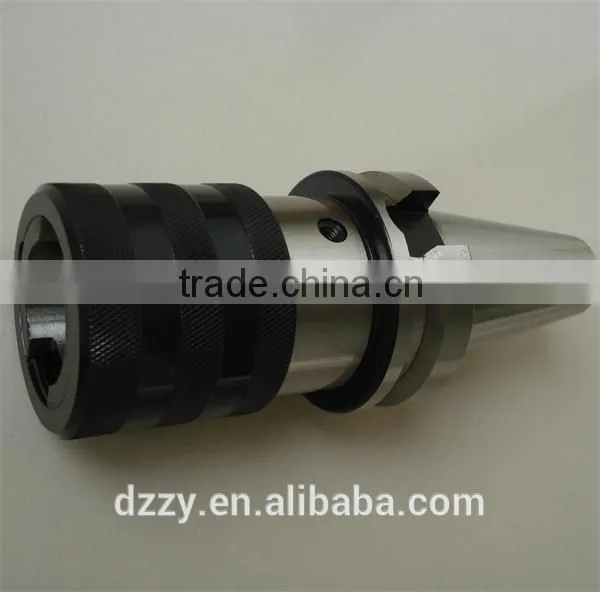

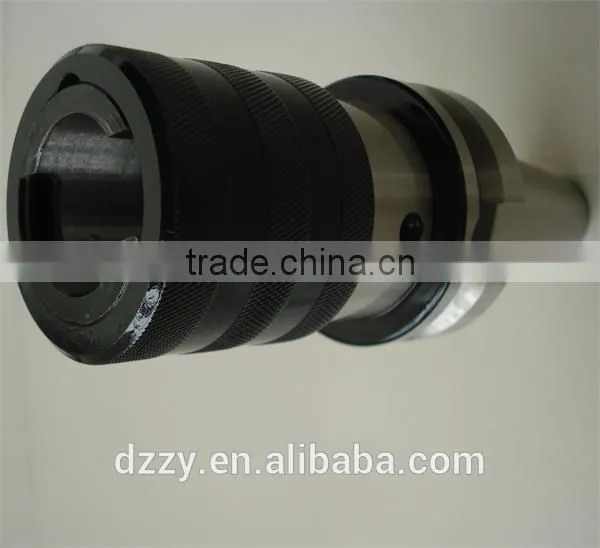

J45 TAPPING CHUCK
- 1000 Piece / Pieces per Month
- QINGDAO XINGANG
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | D30-12,D40-12,D30-20,D40-20 etc |
Product Description
Specifications
J45 tapping chuck1.Made of special elastic steel.
2.Minimum order:5pcs.
3.Din69871 or BT standard.

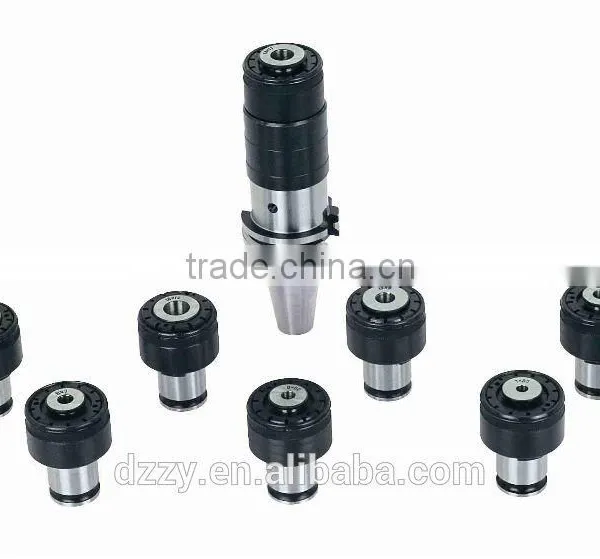

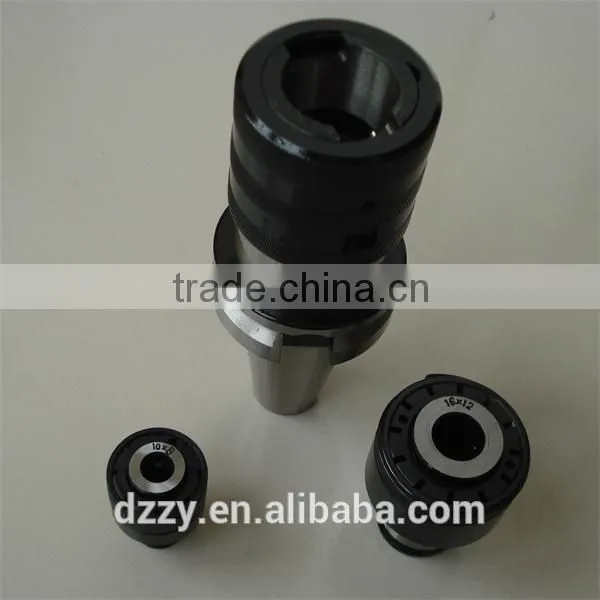

The J45 tapping chuck is consisted of chuck and tap collet.The chuck has installed compensating devise for thread pitch.There are two different tap collets,one with overload protection and one without.When using the tap collet with overload protection,the protection device can automatically release to avoid tap-breaking.Only adjust nuts and you can get the different release torque quickly and conveniently.
| order no. | shank | tapping range | D(mm) | D1(mm) | d(mm) | L1(mm) |
| D30-12 | DIN69871.30 | M3-M12 | 36 | 31.75 | 19 | 59 |
| D40-12 | DIN69871.40 | 44.45 | 59 | |||
| D50-12 | DIN69871.50 | 69.85 | 62 | |||
| B30-12 | BT30 | 31.75 | 59 | |||
| B40-12 | BT40 | 44.45 | 64 | |||
| B50-12 | BT50 | 69.85 | 75 | |||
| D30-20 | DIN69871.30 | M7-M20 | 53 | 31.75 | 31 | 97 |
| D40-20 | DIN69871.40 | 44.45 | ||||
| D50-20 | DIN69871.50 | 69.85 | ||||
| B30-20 | BT30 | 31.75 | ||||
| B40-20 | BT40 | 44.45 | ||||
| B50-20 | BT50 | 69.85 | ||||
| D30-36 | DIN69871.30 | M14-M36 | 78 | 31.75 | 48 | 149 |
| D40-36 | DIN69871.40 | 44.45 | ||||
| D50-36 | DIN69871.50 | 69.85 | ||||
| B30-36 | BT30 | 31.75 | ||||
| B40-36 | BT40 | 44.45 | ||||
| B50-36 | BT50 | 69.85 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 8(eight) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
