JIS Standard Tapping Adaptor Collet
- QINGDAO XINGANG
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | M2,M3,M4,M5,M6 etc |
Product Description

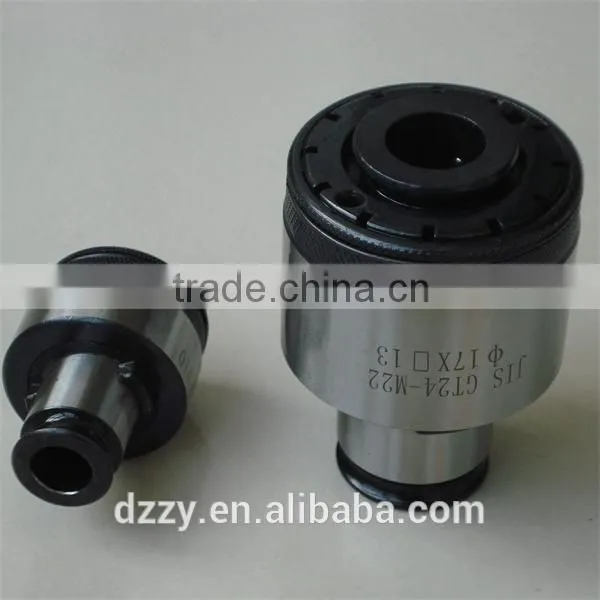

JIS Standard Tapping adaptor collet
1.Made of special elastic steel.
2.Minimum order:5pcs.
3.II type have overload protection.
| model | ISO Dxa | DIN371 Dxa | DIN376 Dxa | JIS Standard Dxa | d(mm) | |
| M2 | 2.8x2.25 | 2.8x2.1 | 2.5x2.1 | 3x2.5 | 19 | |
| M3(1/8) | 3.15x2.5 | 3.5x2.7 | 4x3.2 | 19 | ||
| M4(5/32) | 4x3.15 | 4.5x3.4 | 5x4 | 19 | ||
| M5(3/16) | 5x4 | 6x4.9 | 5.5x4.5 | 19 | ||
| M6(1/4) | 6.3x5 | 6x4.9 | 6x4.5 | 19 | ||
| M8(5/16) | 6.3x5 | 8x6.2 | 6x4.9 | 6.2x5 | 19 | |
| M10(3/8) | 8x6.3 | 10x8 | 7x5.5 | 7x5.5 | 19 | |
| M12 | 9x7.1 | 9x7 | 8.5x6.5 | 19 | 31 | |
| 1/2" | 9x7.1 | 9x7 | 9x7 | 31 | ||
| M14(9/16) | 11.2x9 | 11x9 | 10.5x8 | 31 | ||
| M16 | 12.5x10 | 12x9 | 12.5x10 | 31 | ||
| 5/8" | 12.5x10 | 12x9 | 12x9 | 31 | ||
| M18(3/4) | 14x11.2 | 14x11 | 14x11 | 31 | ||
| M20 | 14x11.2 | 16x12 | 15x12 | 31 | ||
| M22(7/8) | 16x12.5 | 18x14.5 | 17x13 | 31 | ||
| M24 | 18x14 | 18x14.5 | 19x15 | 48 | 31 | |
| M27(1") | 20x16 | 20x16 | 20x15 | 48 | ||
| M30 | 20x16 | 22x18 | 23x17 | 48 | ||
| M33 | 22.4x18 | 25x20 | 25x19 | 48 | ||
| M36 | 25x20 | 28x22 | 28x21 | 48 | ||
| PT1/16-28 | 8X6 | 19 | ||||
| PT1/8-28 | 8x6 | 19 | ||||
| PT1/4-19 | 11x9 | 31 | ||||
| PT3/8-19 | 14x11 | 31 | ||||
| PT1/2-14 | 18x14 | 31 | ||||
| PT3/4-14 | 23x17 | 48 | ||||
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
