Universal Dividing Head:
The universal dividing head has been designed to carry out all types of gear cutting.Precision dividing and spiral word with greater precision and efficiency than ever the dividing head can be tiled from a horiaontal position of 90-down to -10 from vertacil, and inclinations can be read off a scale graduated in degrees.The dividing head is built to highest engineering standards and tested to assure complete satisfaction.The ratio of worm to gear is 1:40,Universal index head can be used with milling,grinding,drilling machine for dividing.3-jaw chuck is to be purchased specially.

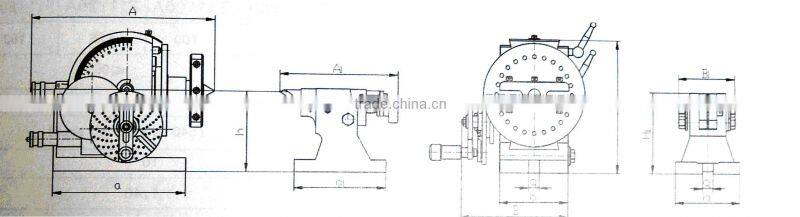

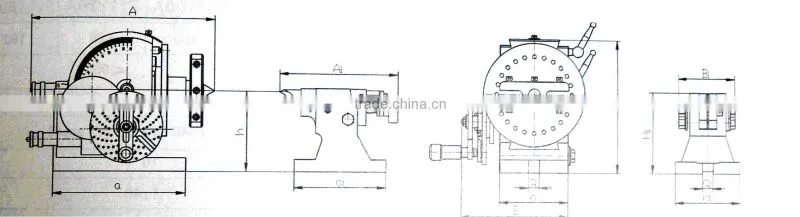

UNIVERSAL DIVIDING HEAD
| Model | A | B | H | h | a | b | g | Spindle hole | N.W.(kg) |
FW12315 FW12315E | 365 | 272 | 236 | 135 | 213 | 134 | 16 | MS4 | 73 |
| 365 | 272 | 236 | 135 | 213 | 134 | 16 | B&SN0.10 |
UNIVERSAL INDEX CENTER (TAIL-STOCK)
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | ||
| FW12315(E) | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dividing Head | |
STANDARD ACCESSORIES
Dividing plate A,B,C.
Numbers of holes of dividing plate(worm gear reduction ratio 1:40)
Unit:mm/in
| Numbers of hole. | Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 31 | 33 | |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |
