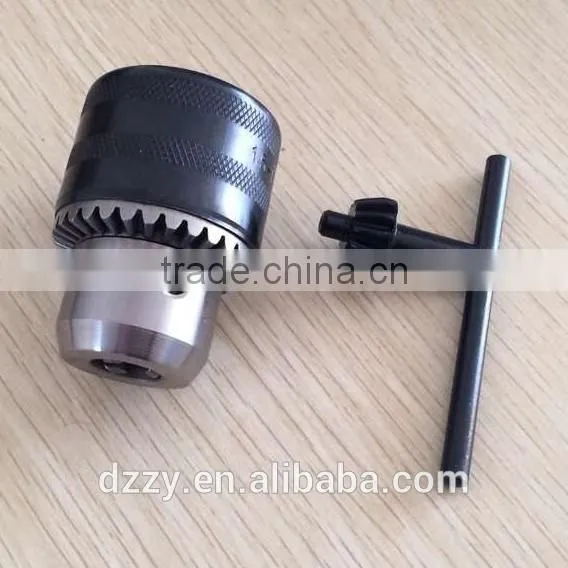

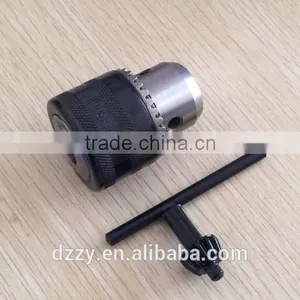

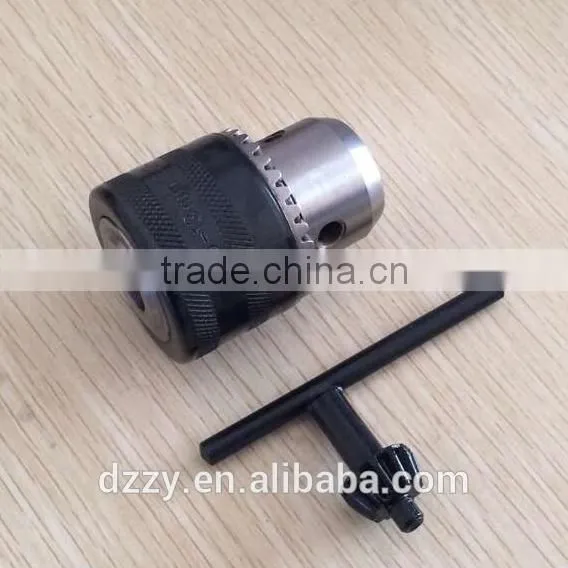

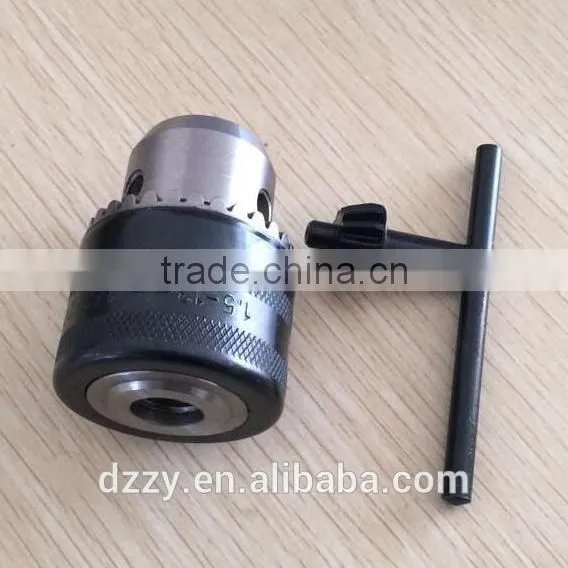

light type Drill chuck with key.
1.Clamping size include:6.5mm,10mm,13mm,16mm.
2.Hole:taper hole or thread hole.
3.Application:impack drill or AC/DC electrical drill.
16mm:
| order no. | clamping size(mm) | connection size |
| J2516 | 3.0-16 | B16 |
| J2516 | 3.0-16 | B18 |
| J2516 | 3.0-16 | B12 |
| J3516 | 3.0-16 | 1/2-20UNF |
| J3516 | 3.0-16 | 3/8-24UNF |
| J3516 | 3.0-16 | M12*1.25 |
10mm:
| order no. | clamping size(mm) | connection size |
| J3510 | 1.5-10 | 3/8-24UNF |
| J3510 | 1.5-10 | 1/2-20UNF |
| J3510 | 1.5-10 | 10x1.5 |
| J2510 | 1.5-10 | B12 |
13mm:
| order no. | clamping size(mm) | connection size |
| J2513 | 1.5-13 | B16 |
| J3513 | 1.5-13 | 1/2-20UNF |
| J3513 | 1.5-13 | 3/8-24UNF |
| J3513 | 1.5-13 | M12*1.25 |
6.5mm:
| order no. | clamping size(mm) | connection size |
| J3506 | 0.6-6.5 | 3/8-24UNF |
| J1306 | 0.6-6.5 | B10 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
