Keyless or keytype drill chuck
Connection type:JT hole, B hole, or threaded hole connection
Clamping sizes as below:
0.5-6mm
0.5-8mm
1-10mm
1-13mm
3-16mm
5-20mm
Grade type:light type,heavy type

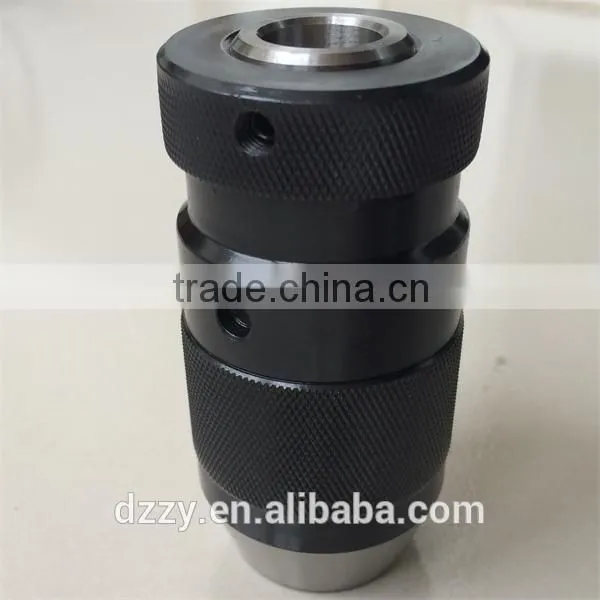

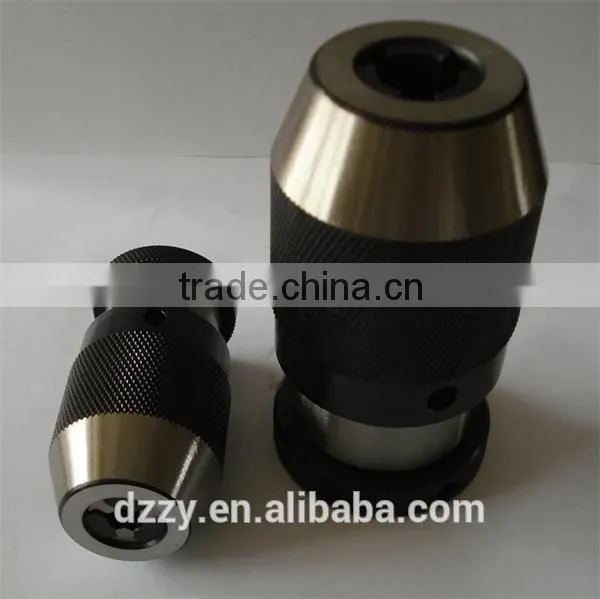

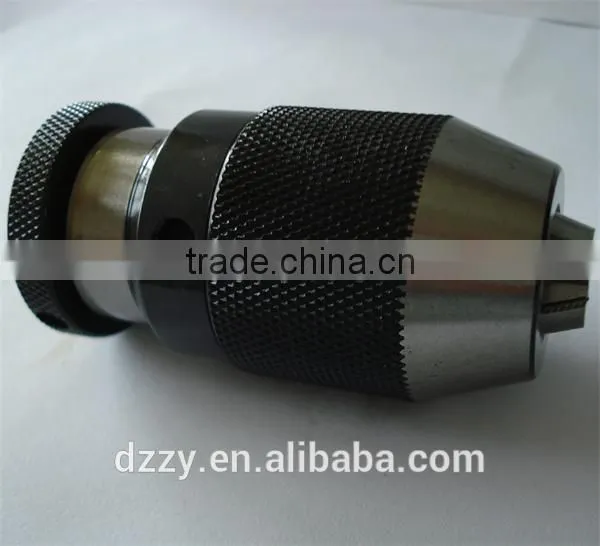

1.Keyless drill Chuck:
| no. | capacity(mm) | taper | d(mm) | h(mm) | D(mm) | L(mm) | l(mm) |
| J0106 | 0.5-6" |
B10 B12 |
10.094 12.065 |
14.5 18.5 |
Ø35 | 67 | 61 |
| J0206 | 1/64"-1/4" |
JT0 JT1 |
6.350 9.754 |
11.112 16.669 |
Ø35 | 67 | 61 |
| J0108 | 0.5-8 |
B12 B16 |
12.065 15.733 |
18.5 24.0 |
Ø42 | 86 | 78 |
| J0208 | 1/64"-5/16" |
JT2 JT33 |
14.199 15.850 |
22.225 25.400 |
Ø42 | 86 | 78 |
| J0110 | 1-10 |
B12 B16 |
12.065 15.733 |
18.5 24.0 |
Ø42 | 86 | 78 |
| J0210 | 1/32"-3/8" |
JT2 JT33 |
14.199 15.850 |
22.225 25.400 |
Ø42 | 86 | 78 |
| J0113 | 1-13 |
B12 B16 |
12.065 15.733 |
18.5 24.0 |
Ø44 | 97 | 88 |
| J0213 | 1/32"-1/2" |
JT2 JT33
|
14.199 15.850
|
22.225 25.400
|
Ø44 | 97 | 88 |
| J0116II |
3-16 |
B16
|
15.733
|
24.0
|
Ø48 | 102 | 92 |
| J0216II |
1/8"-5/8" |
JT6
|
17.170 |
25.400
|
Ø48 | 102 | 92 |
| J0116 | 3-16 |
B18 |
17.780 |
32.0 |
Ø48 | 108 | 98 |
| J0216 | 1/8"-5/8" |
JT3 |
20.599 |
30.956 |
Ø48 | 108 | 98 |
| J0120 | 5-20 |
B22 |
21.3 |
30.5 |
Ø53 | 115 | 103 |
| J0220 | 3/16"-3/4" |
JT3 |
20.599 |
30.956 |
Ø53 | 115 | 103 |

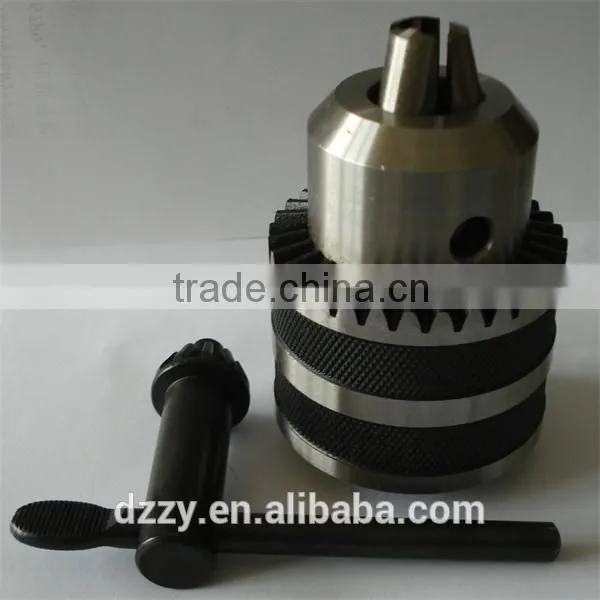

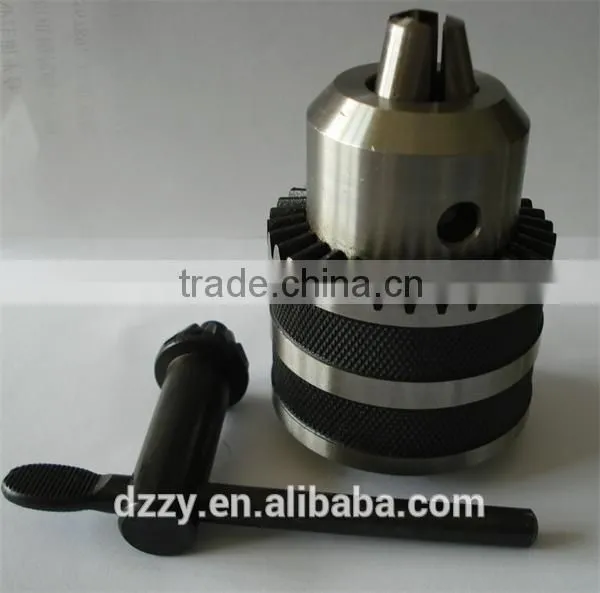

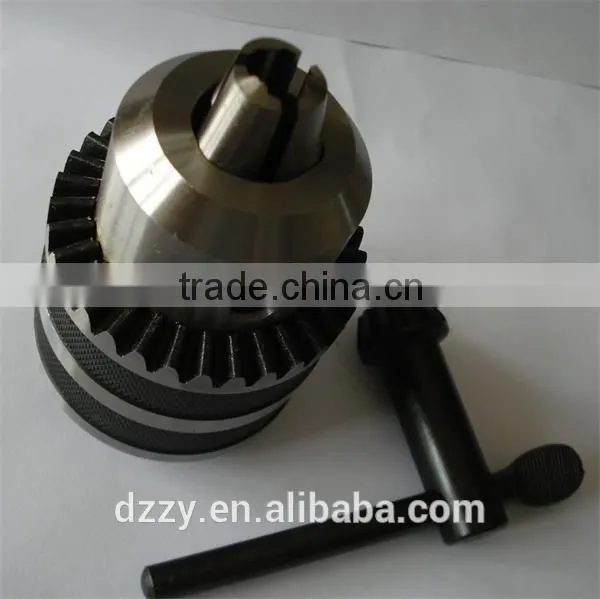

2.Keytype drill chuck
thread mount:
| order no. | capacity | mount | D(mm) | L1(mm) | L(mm) | |
| J3110 | 1-10mm | 1/32-3/8in | 3/8-24UNF | 43.4 | 54 | 69.7 |
| J3110 | 1-10mm | 1/32-3/8in | 1/2-20UNF | 43.4 | 54 | 69.7 |
| J3113 | 1-13mm | 1/32-1/2in | 1/2-20UNF | 53.2 | 67 | 86 |
Taper mount:
| order no. | capacity | mount | D(mm) | L1(mm) | L(mm) | |
| J2110 | 1-10mm | 1/32-3/8in | B12 | 43.4 | 54 | 69.7 |
| J2113 | 1-13mm | 1/32-1/2in | B16 | 53.2 | 67 | 86 |
| J2516 | 3-16mm | 1/8-5/8in | B16 | 53.2 | 67 | 86 |
| J2516 | 3-16mm | 1/8-5/8in | B18 | 53.2 | 67 | 86 |
| J2116 | 1-16mm | 1/32-5/8in | B16 | 57 | 75 | 93 |
| J2116 | 1-16mm | 1/32-5/8in | B18 | 57 | 75 | 93 |
| J2120 | 5-20mm | 3/16-3/4in | B22 | 65.3 | 82 | 110 |
Jacquard taper mount:
| order no. | capacity | mount | D(mm) | L1(mm) | L(mm) | |
| J2210 | 1-10mm | 1/32-3/8in | JT2 | 43.4 | 54 | 69.7 |
| J2213 | 1-13mm | 1/32-1/2in | JT33 | 53.2 | 67 | 86 |
| J2213 | 1-13mm | 1/32-1/2in | JT6 | 53.2 | 67 | 86 |
| J2616 | 3-16mm | 1/8-5/8in | JT3 | 53.2 | 67 | 86 |
| J2616 | 3-16mm | 1/8-5/8in | JT33 | 53.2 | 67 | 86 |
| J2616A | 3-16mm | 1/8-5/8in | JT6 | 53.2 | 67 | 86 |
| J2216 | 1-16mm | 1/32-5/8in | JT3 | 57 | 75 | 93 |
| J2220 | 5-20mm | 3/16-3/4in | JT3 | 65.3 | 82 | 110 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
