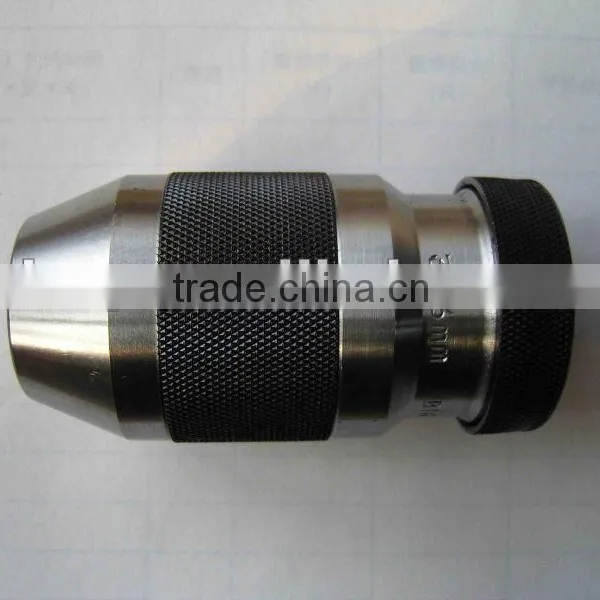

Self-tighting Drill Chuck Thread Mounted
- Qingdao or Xingang
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | J0306 |
Product Description
the self-tighting drill chuck characteristic:
1.Small volume,little weight,extremely safe and easy operation.
2.resistant to impac,excellent performance and reliability.
3.Used for lathe,milling machine,drilling machine,electric hand tool and woodworking machine.
3.Packing:in paper or plastic box.
:

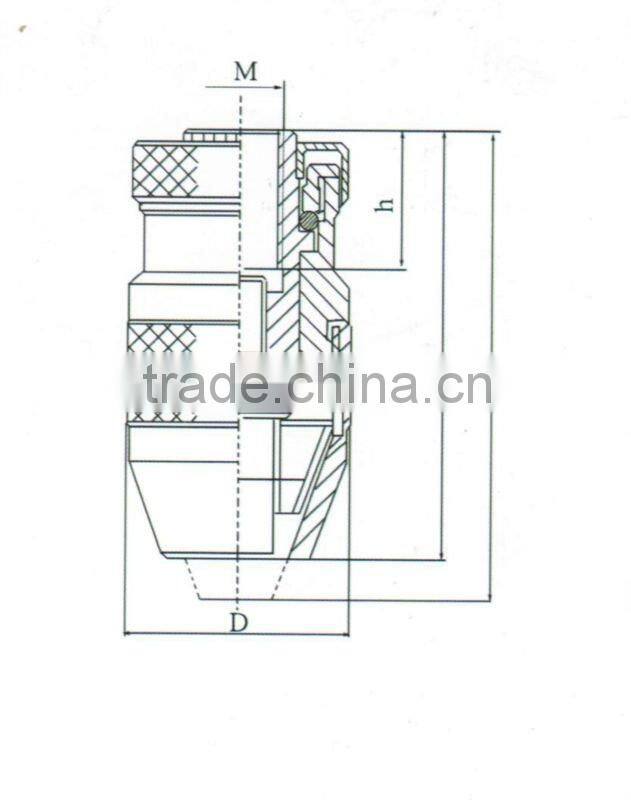

| no. | capacity | thread | h | D | L | l |
| J0306 | 0.5-6 1/64"-1/4" | M10x1 3/8"-24UNF | 14 | Ø 35 | 67 | 61 |
| J0308 | 0.5-8 1/64"-5/16" | M10x1 3/8"-24UNF M12x1.25 1/2"-20UNF | 14 16 | Ø 42 | 86 | 78 |
| J0310 | 1-10 1/32"-3/8" | M10x1 3/8"-24UNF M12x1.25 1/2"-20UNF | 14 16 | Ø 42 | 86 | 78 |
| J0313 | 1-13 1/32"-1/2" | M10x1 3/8"-24UNF M12x1.25 1/2"-20UNF | 14 16 | Ø 44 | 90 | 81 |
| J0316 | 3-16 1/8"-5/8" | M12x1.25 1/2"-20UNF M16x1.5 5/8"-16UNF | 16 18 | Ø 44 | 102 | 92 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
