Home > Products > cnc tool series > JIS B6339-1986 pull stud
JIS B6339-1986 pull stud
- Qingdao xingang
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhongyi | |
| Model Number | IIS B6339-1986 |
Product Description

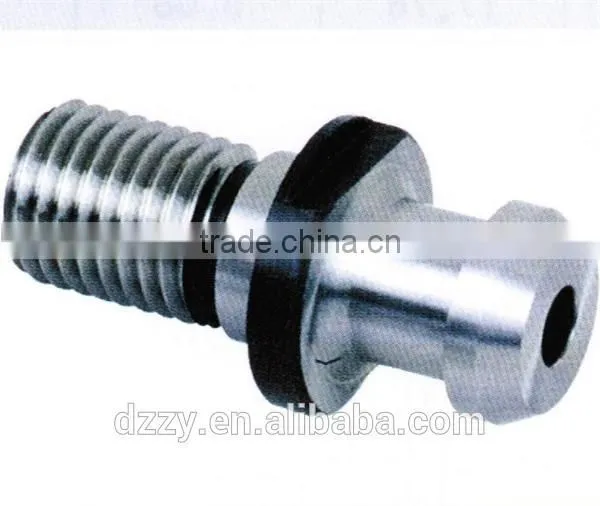

JIS B6339-1986 pull stud:
1.material:high quality alloy steel
2.hardness:HRC44-48 or HRC48-52 as per different material
3.sizes:30,40,45,50 .etc

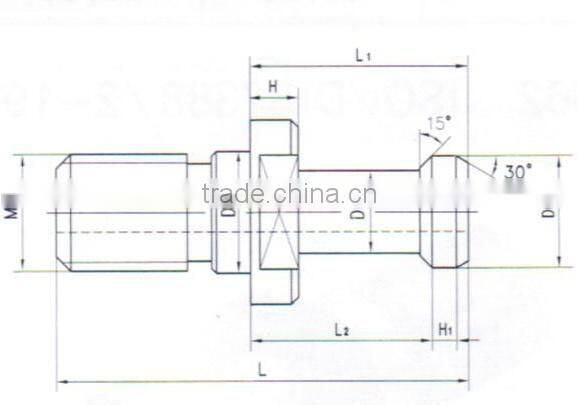

| Model no. | D | D1 | D2 | M | L | L1 | L2 | H | H1 |
| 30 | 12.5 | 8 | 12 | M12 | 43 | 23.4 | 18.4 | 5 | 3 |
| 35 | 12.5 | 11 | 15 | M12 | 44 | 24 | 19 | 5 | 3 |
| 40 | 17 | 14 | 19 | M16 | 54 | 29 | 23 | 7 | 3 |
| 45 | 21 | 17 | 23 | M20 | 60 | 30 | 23 | 7 | 4 |
| 50 | 25 | 21 | 28 | M24 | 74 | 34 | 25 | 7 | 5 |
| 55 | 31 | 27 | 36 | M30 | 98 | 48 | 36 | 11 | 7 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
