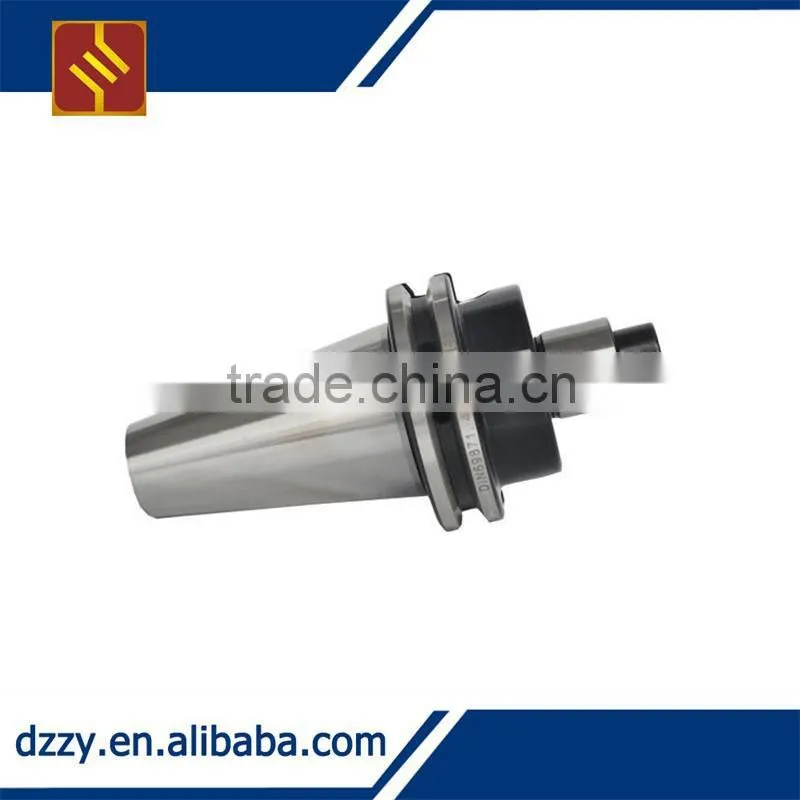

DIN69871 Shell Mill Holders
- 25000 Piece / Pieces per Month
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | DIN69871 |
Product Description
| |

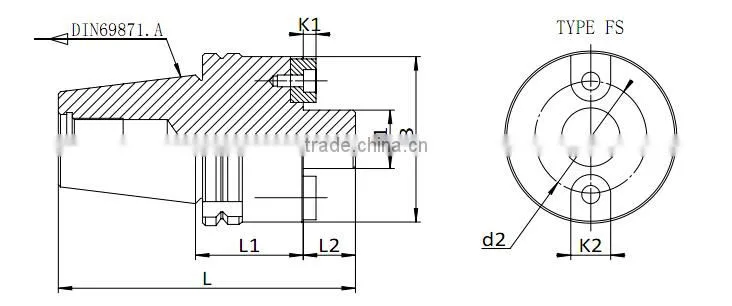

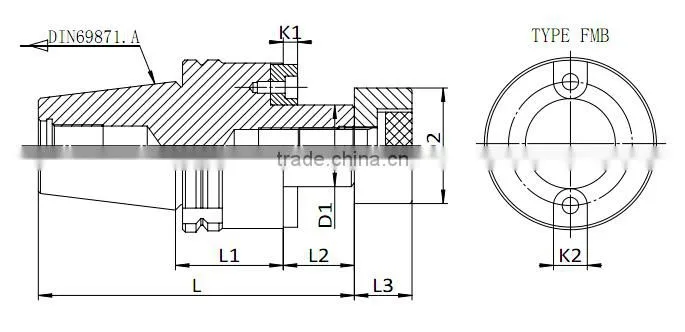

Model No. | L | L1 | L2 | D | d1 | d2 | k1 | k2 | Wt(kg) |
DIN69871.A30xFMB22-35 | 100.8 | 18 | 14 | 26 | 47 | 47 | 4.8 | 10 | 1.00 |
DIN69871.A30xFMB27-35 | 102.8 | 20 | 16 | 31.5 | 58 | 58 | 5.8 | 12 | 1.05 |
DIN69871.A40xFMB22-35 | 121.4 | 18 | 14 | 26 | 47 | 47 | 4.8 | 10 | 1.20 |
DIN69871.A40xFMB27-60 | 148.4 | 20 | 16 | 31.5 | 58 | 58 | 5.8 | 12 | 1.80 |
DIN69871.A40xFMB32-60 | 150.4 | 22 | 16 | 41 | 66 | 66 | 6.8 | 14 | 2.30 |
DIN69871.A40xFMB40-60 | 153.4 | 25 | 20.5 | 48 | 82 | 82 | 8.3 | 16 | 2.58 |
DIN69871.A50xFMB22-35 | 154.75 | 15 | 14 | 26 | 47 | 47 | 4.8 | 10 | 3.40 |
DIN69871.A50xFMB27-35 | 156.75 | 20 | 16 | 31.5 | 58 | 58 | 5.8 | 12 | 3.50 |
DIN69871.A50xFMB32-35 | 158.75 | 22 | 16 | 41 | 66 | 66 | 6.8 | 14 | 3.70 |
DIN69871.A50xFMB40-50 | 189.75 | 25 | 20.5 | 48 | 82 | 82 | 8.3 | 16 | 4.70 |
DIN69871.A50xFMB50-60 | 211.75 | 30 | 25 | 68 | 95 | 95 | 9.7 | 19 | 5.80 |
DIN69871.A50xFMB40F-60 | 158.4 | 30 | 66.7 | M12 | 89 | 89 | 8.3 | 15.9 | 2.90 |
DIN69871.A50xFMB40F-70 | 201.75 | 30 | 66.7 | M12 | 89 | 89 | 8.3 | 15.9 | 5.50 |
DIN69871.A50xFMB60F-70 | 211.75 | 40 | 101.6 | M16 | 129 | 129 | 12.5 | 25.4 | 5.70 |
DIN69871.A50xFS40-60 | 154.4 | 26 | 66.7 | 50 | 110 | 110 | 8.3 | 16 | 3.20 |
DIN69871.A50xFS40-70 | 211.75 | 26 | 66.7 | 50 | 110 | 110 | 8.3 | 16 | 5.70 |
DIN69871.A50xFS60-70 | 196.75 | 25 | 101.6 | M16 | 140 | 140 | 12.5 | 25.4 | 5.50 |
| | |
| |
