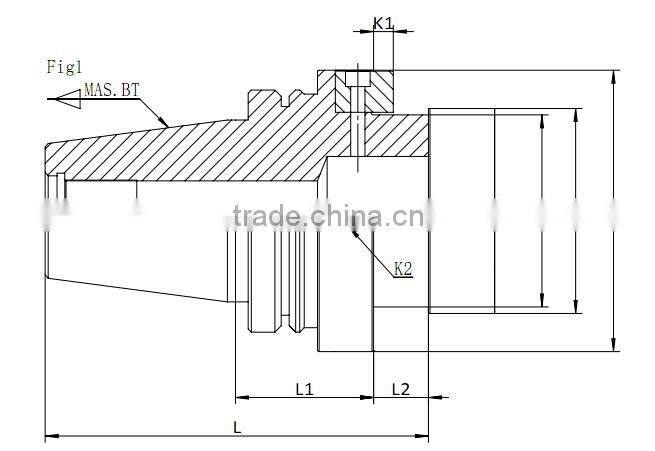

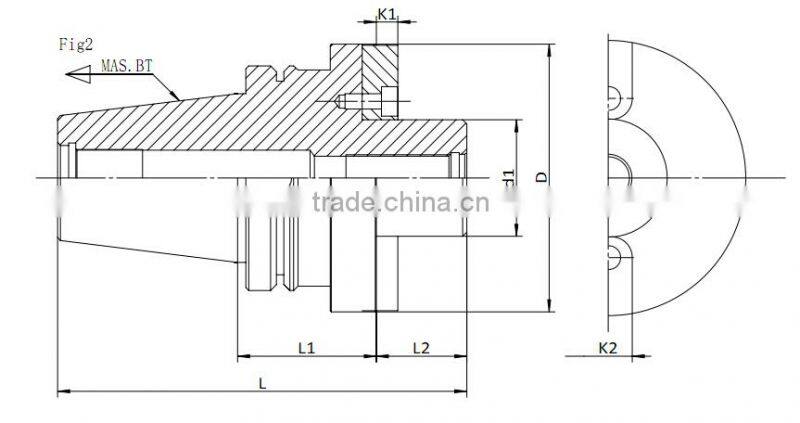

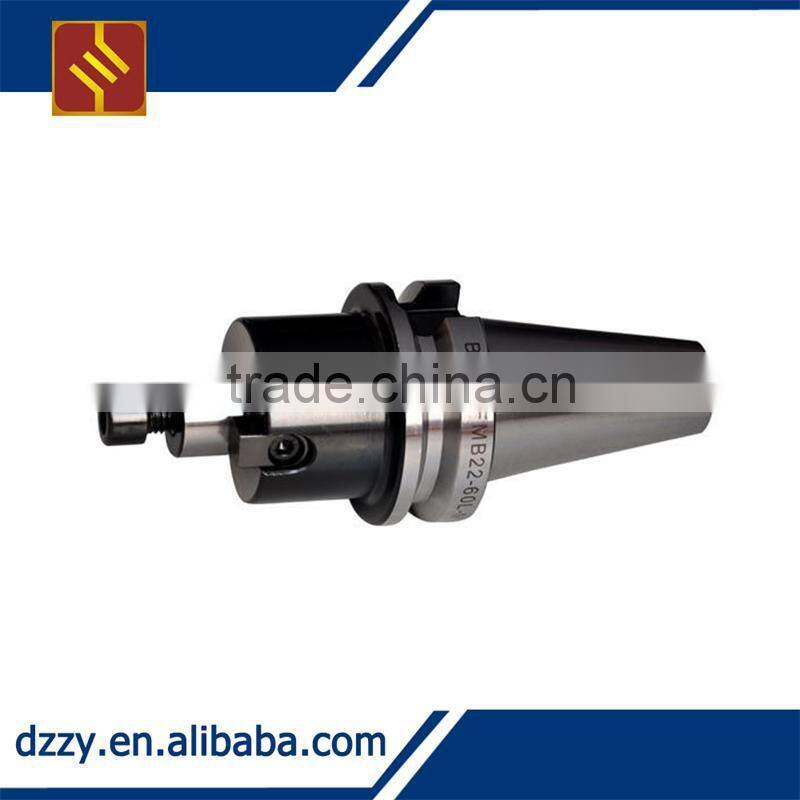

Help CenterBT Shell Mill Holders
Related Products
|
|
Model No. |
L |
L1 |
L2 |
D |
d1 |
d2 |
K1 |
K2 |
Wt.(kg) |
BT30XFMB22-45 |
114.4 |
45 |
18 |
50 |
22 |
26 |
4.8 |
10 |
0.85 |
BT30XFMB22-60 |
126.4 |
60 |
18 |
50 |
22 |
26 |
4.8 |
10 |
1.25 |
BT30XFMB27-45 |
113.4 |
45 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
1.20 |
BT30XFMB27-60 |
128.4 |
60 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
1.35 |
BT30XFMB32-45 |
115.4 |
45 |
22 |
78 |
32 |
41 |
6.8 |
14 |
1.35 |
BT40XFMB22-45 |
128.4 |
45 |
18 |
48 |
22 |
26 |
4.8 |
10 |
1.45 |
BT40XFMB22-60 |
143.4 |
60 |
18 |
48 |
22 |
26 |
4.8 |
10 |
1.70 |
BT40XFMB22-100 |
173.4 |
100 |
18 |
48 |
22 |
26 |
4.8 |
10 |
2.20 |
BT40XFMB27-45 |
130.4 |
45 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
1.60 |
BT40XFMB27-60 |
145.4 |
60 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
2.00 |
BT40XFMB27-90 |
175.4 |
90 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
2.30 |
BT40XFMB27-105 |
190.4 |
105 |
20 |
60 |
27 |
31.5 |
6.8 |
12 |
2.50 |
BT40XFMB32-45 |
132.4 |
45 |
22 |
78 |
32 |
41 |
6.8 |
12 |
1.75 |
BT40XFMB32-60 |
147.4 |
60 |
22 |
78 |
32 |
41 |
8.3 |
14 |
2.10 |
BT40XFMB40-60 |
150.4 |
60 |
25 |
80 |
40 |
48 |
4.8 |
14 |
2.80 |
BT50XFMB22-45 |
164.8 |
45 |
18 |
48 |
22 |
26 |
4.8 |
16 |
4.50 |
BT50XFMB22-90 |
209.8 |
90 |
18 |
48 |
22 |
26 |
4.8 |
10 |
5.10 |
BT50XFMB22-150 |
369.8 |
150 |
18 |
48 |
22 |
26 |
4.8 |
10 |
6.80 |
BT50XFMB27-50 |
171.8 |
50 |
20 |
60 |
27 |
31.5 |
5.8 |
10 |
7.00 |
BT50XFMB27-90 |
211.8 |
90 |
20 |
60 |
27 |
31.5 |
5.8 |
10 |
8.00 |
BT50XFMB27-150 |
271.8 |
150 |
20 |
60 |
27 |
31.5 |
5.8 |
12 |
7.50 |
BT50XFMB32-50 |
173.8 |
50 |
22 |
78 |
32 |
41 |
6.8 |
12 |
9.50 |
BT50XFMB32-90 |
213.8 |
90 |
22 |
78 |
32 |
41 |
6.8 |
12 |
11.0 |
BT50XFMB40-50 |
176.8 |
50 |
25 |
89 |
40 |
48 |
8.3 |
12 |
5.70 |
BT50XFMB40-90 |
216.8 |
90 |
25 |
89 |
40 |
48 |
8.3 |
14 |
5.80 |
BT50XFMB40-105 |
231.8 |
105 |
25 |
98 |
40 |
48 |
8.3 |
14 |
5.20 |
BT50XFMB40F-75 |
202.8 |
75 |
26 |
110 |
40 |
--- |
8.3 |
16 |
6.00 |
BT50XFMB60-75 |
201.8 |
75 |
25 |
140 |
60 |
--- |
12.5 |
16 |
7.20 |
|
|
|
|
|
