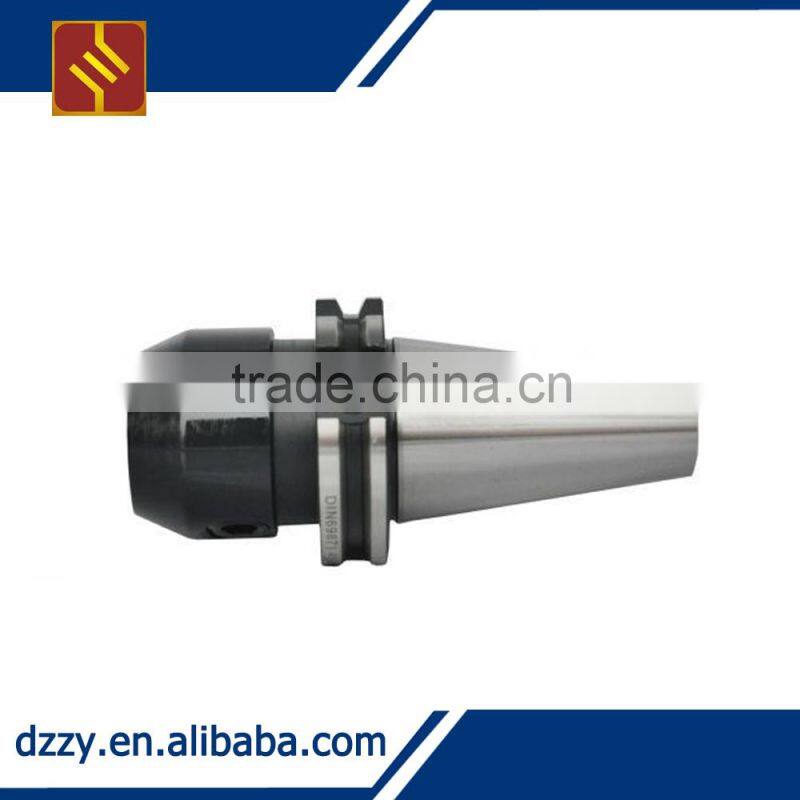

DIN69871 End Mill Adapters
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | DIN69871 |
Product Description

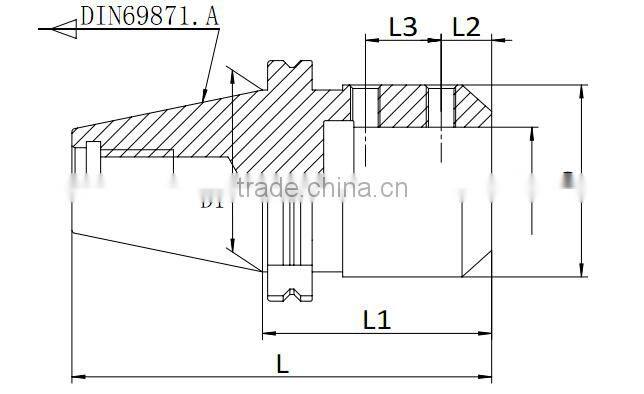

Model No. DIN69871.Axd-L1 | L | D | D1 | L2 | L3 | Wt(kg) |
DIN69871.A30x6-50 | 97.8 | 25 | 31.75 | 18 |
| 0.58 |
DIN69871.A30x8-50 | 97.8 | 28 | 31.75 | 18 |
| 0.64 |
DIN69871.A30x10-50 | 97.8 | 35 | 31.75 | 20 |
| 0.72 |
DIN69871.A30x12-50 | 97.8 | 42 | 31.75 | 22.5 |
| 0.80 |
DIN69871.A30x16-50 | 97.8 | 48 | 31.75 | 24 |
| 0.96 |
DIN69871.A40x6-50 | 118.4 | 25 | 44.45 | 18 |
| 0.92 |
DIN69871.A40x8-50 | 118.4 | 28 | 44.45 | 18 |
| 0.96 |
DIN69871.A40x10-50 | 118.4 | 35 | 44.45 | 20 |
| 2.00 |
DIN69871.A40x12-50 | 118.4 | 42 | 44.45 | 22.5 |
| 1.12 |
DIN69871.A40x14-50 | 118.4 | 44 | 44.45 | 22.5 |
| 1.12 |
DIN69871.A40x16-63 | 131.4 | 48 | 44.45 | 24 |
| 1.20 |
DIN69871.A40x18-63 | 131.4 | 50 | 44.45 | 24 |
| 1.20 |
DIN69871.A40x20-63 | 131.4 | 52 | 44.45 | 25 |
| 1.32 |
DIN69871.A40x25-100 | 168.4 | 65 | 44.45 | 24 | 25 | 2.04 |
DIN69871.A40x32-100 | 168.4 | 72 | 44.45 | 24 | 28 | 2.24 |
DIN69871.A40x40-120 | 188.4 | 90 | 44.45 | 30 | 32 | 2.40 |
DIN69871.A50x6-63 | 164.75 | 25 | 69.85 | 18 |
| 3.30 |
DIN69871.A50x8-63 | 164.75 | 28 | 69.85 | 18 |
| 3.40 |
DIN69871.A50x10-63 | 164.75 | 35 | 69.85 | 20 |
| 3.42 |
DIN69871.A50x12-63 | 164.75 | 42 | 69.85 | 22.5 |
| 3.42 |
DIN69871.A50x14-63 | 164.75 | 44 | 69.85 | 22.5 |
| 3.44 |
DIN69871.A50x16-63 | 164.75 | 48 | 69.85 | 24 |
| 3.46 |
DIN69871.A50x18-63 | 164.75 | 50 | 69.85 | 24 |
| 3.48 |
DIN69871.A50x20-63 | 164.75 | 52 | 69.85 | 25 |
| 4.24 |
DIN69871.A50x25-80 | 181.75 | 65 | 69.85 | 24 | 25 | 4.40 |
DIN69871.A50x32-100 | 201.75 | 72 | 69.85 | 24 | 28 | 4.52 |
DIN69871.A50x40-120 | 221.75 | 90 | 69.85 | 30 | 32 | 4.72 |
| ||||||
| | |
| |
