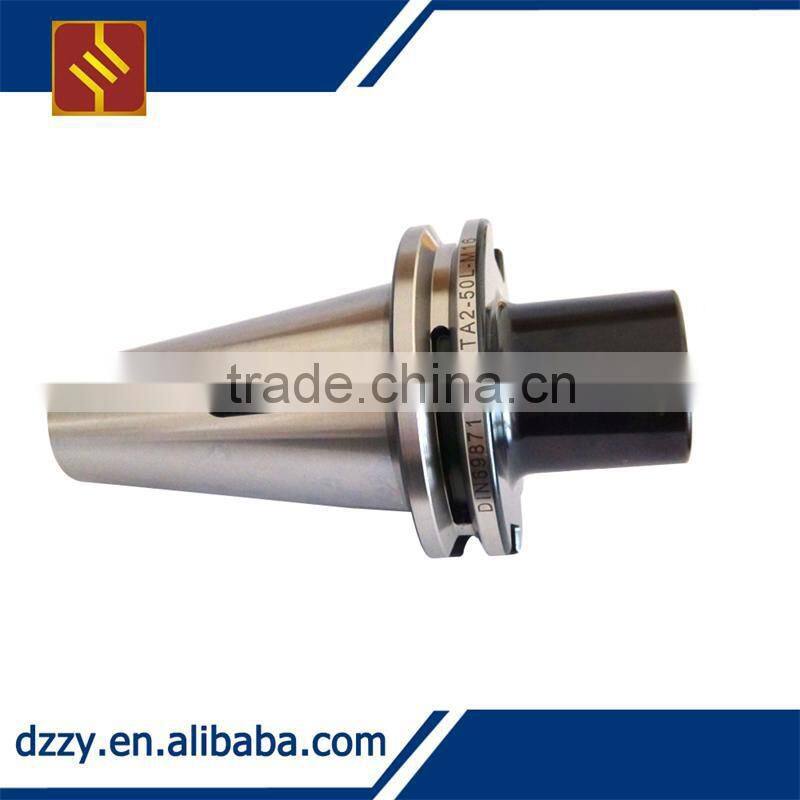

DIN69871 Morse Taper Sleeve with Tang
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | DIN69871 |
Product Description

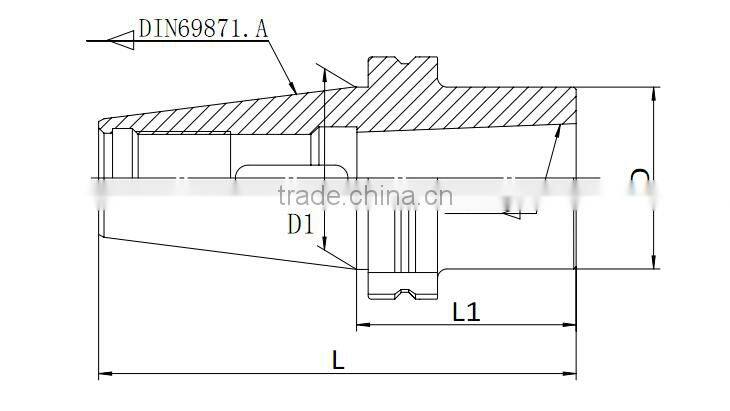

Model No. DIN69871.AX MT NO.-L1 | L | D | D1 | Wt(kg) |
DIN69871.A30xMTA1-50 | 97.8 | 25 | 31.75 | 0.55 |
DIN69871.A30XMTA2-60 | 107.8 | 32 | 31.75 | 0.80 |
DIN69871.A30XMTA3-75 | 122.8 | 40 | 31.75 | 0.85 |
DIN69871.A40xMTA1-45 | 113.4 | 25 | 44.45 | 1.20 |
DIN69871.A40xMTA1-50 | 118.4 | 25 | 44.45 | 1.30 |
DIN69871.A40XMTA2-50 | 118.4 | 32 | 44.45 | 1.50 |
DIN69871.A40xMTA2-60 | 128.4 | 32 | 44.45 | 1.56 |
DIN69871.A40XMTA3-75 | 143.4 | 40 | 44.45 | 1.80 |
DIN69871.A40XMTA4-95 | 163.4 | 48 | 44.45 | 2.40 |
DIN69871.A50XMTA1-45 | 146.75 | 25 | 69.85 | 4.05 |
DIN69871.A50xMTA2-60 | 161.75 | 32 | 69.85 | 4.40 |
DIN69871.A50xMTA3-65 | 166.75 | 40 | 69.85 | 4.50 |
DIN69871.A50xMTA4-95 | 196.75 | 48 | 69.85 | 4.90 |
DIN69871.A50xMTA5-100 | 201.75 | 61 | 69.85 | 5.10 |
DIN69871.A50xMTA5-105 | 206.75 | 61 | 69.85 | 5.15 |
| | |
| |
