Home > Products > cnc tool series > DIN69871-APU Self Fasten Drill Chuck

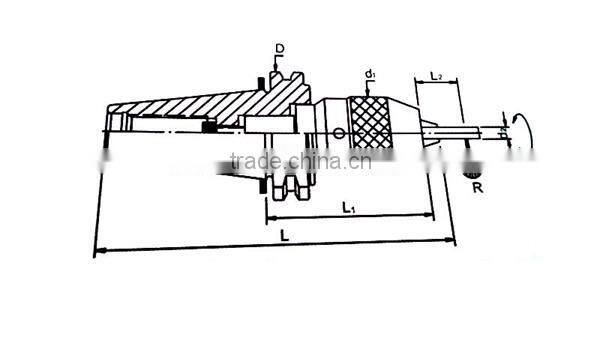

DIN69871-APU Self Fasten Drill Chuck
US$ 25 - 45
/ Piece
10 Pieces(Min. Order)
- Xingang/Qingdao
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | BT30-APU,BT40-APU |
Product Description
Specifications
DIN69871-APU self fasten drill chuck:1.material:hard alloy steel
2.hardness:HRC44-45
3.balance:5000rpm
BT self-fasten drill chuck :
1.material:hard alloy steel
2.hardness:HRC44-45
3.balance:5000rpm
| Model No. | L1 | L | L2 | D | d1 | d2 | R | Wt(kg) |
| BT30XAPU8-80 | 80 | 137.4 | 55 | 46 | 37 | 6 | 0.04 | 0.72 |
| BT30XAPU13-110 | 110 | 170.4 | 75 | 46 | 50 | 13 | 0.04 | 1.85 |
| BT30XAPU16-110 | 110 | 180.4 | 80 | 46 | 57 | 16 | 0.04 | 2.18 |
| BT40XAPU8-85 | 85 | 159.4 | 55 | 63 | 37 | 6 | 0.04 | 1.46 |
| BT40XAPU13-100 | 100 | 177.4 | 75 | 63 | 50 | 13 | 0.04 | 2.00 |
| BT40XAPU16-105 | 105 | 187.4 | 80 | 63 | 57 | 16 | 0.04 | 2.33 |
| BT50XAPU8-90 | 90 | 200.8 | 55 | 63 | 37 | 6 | 0.04 | 4.16 |
| BT50XAPU3-100 | 100 | 213.8 | 75 | 100 | 50 | 13 | 0.04 | 4.70 |
| BT50XAPU16-105 | 105 | 223.8 | 80 | 100 | 57 | 16 | 0.04 | 5.03 |
| Model No. | L1 | L | L2 | D | d1 | d2 | R | Wt(kg) |
| DIN69871.30XAPU8-80 | 80 | 139.8 | 55 | 50 | 37 | 6 | 0.04 | 0.60 |
| DIN69871.30XAPU13-120 | 120 | 179.8 | 75 | 50 | 50 | 13 | 0.04 | 1.45 |
| DIN69871.30XAPU16-125 | 125 | 179.8 | 75 | 50 | 57 | 16 | 0.04 | 1.78 |
| DIN69871.40XAPU8-75 | 75 | 155.4 | 55 | 63.55 | 37 | 6 | 0.04 | 1.46 |
| DIN69871.40XAPU13-100 | 100 | 180.4 | 75 | 63.55 | 50 | 13 | 0.04 | 2.00 |
| DIN69871.40XAPU16-115 | 115 | 195.4 | 80 | 63.55 | 57 | 16 | 0.04 | 2.33 |
| DIN69871.50XAPU8-75 | 75 | 188.75 | 55 | 63.55 | 37 | 6 | 0.04 | 3.86 |
| DIN69871.50XAPU13-100 | 100 | 213.75 | 75 | 97.5 | 50 | 13 | 0.04 | 4.40 |
| DIN69871.50XAPU16-105 | 105 | 218.75 | 80 | 97.5 | 57 | 16 | 0.04 | 4.73 |
