Straight Mounting Square Bite Boring Arbors
- qingdao xingang
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhongyi | |
| Model Number | BT45-TZC25-120 etc |
Product Description

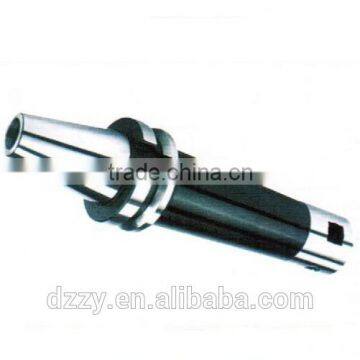

Straight mounting square bite boring arbors:
1.Material:high quality alloy steel.
2.Sizes and specifications as below:

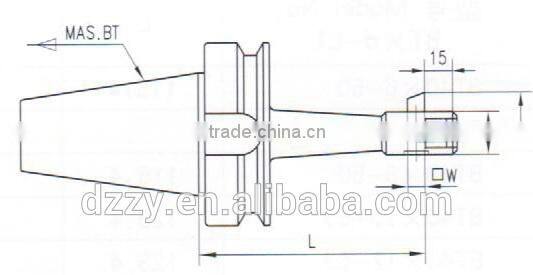

| Model no. | D | D1 | L | W | Type of square cutter | |
| min | max | |||||
| BT45-TZC25-120 | 25 | 40 | 20 | 120 | 8 | F8-82-24 |
| BT45-TZC38-150 | 38 | 60 | 30 | 150 | 10 | F10-82-36 |
| BT45-TZC50-165 | 50 | 70 | 40 | 165 | 13 | F13-82-48 |
| BT45-TZC72-195 | 72 | 100 | 60 | 195 | 19 | F19-82-70 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
