ULPA Hepa Ceiling Filter Modules Filter Box

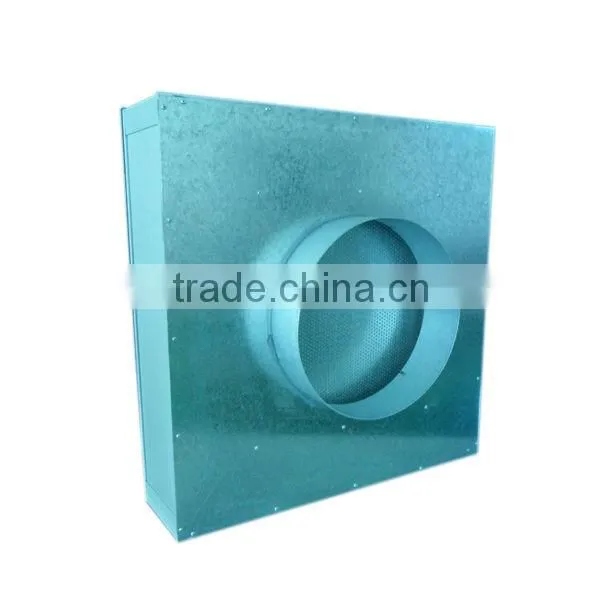

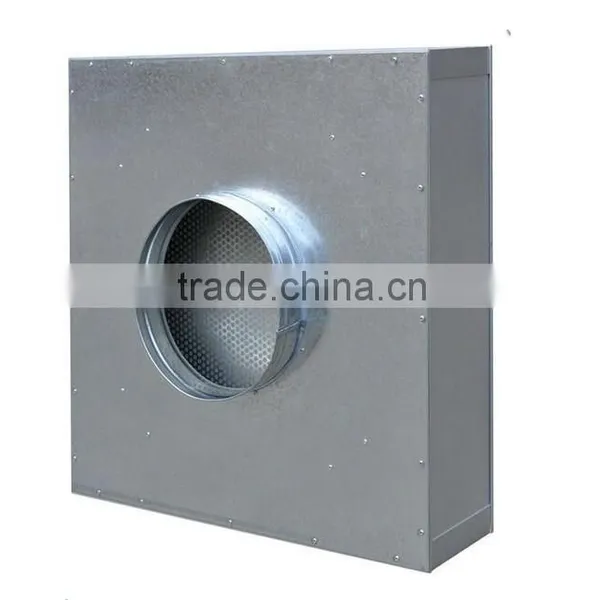

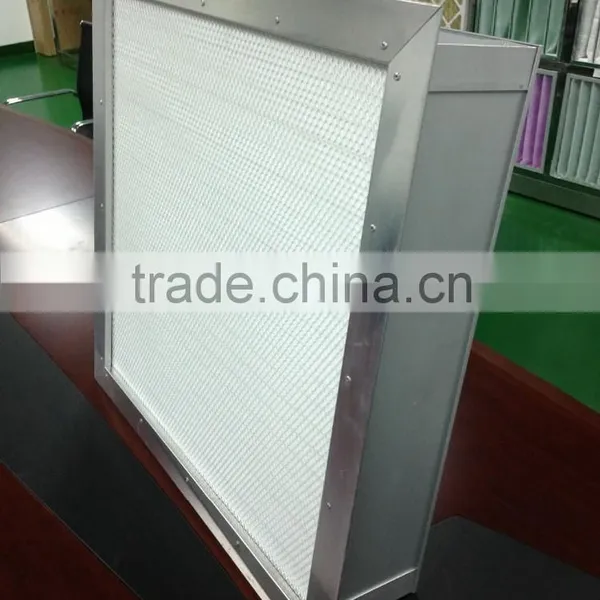

Ducted Ceiling Module .The Gel Seal filters are available in HEPA or ULPA efficiencies. The dimple pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free, tight seal. The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper control and challenge port for the measurement of challenged aerosol. An anodized extruded aluminum center divider with access port provides access for adjustment of the distribution plate and measurement of the resistance and challenge aerosol. A painted expanded metal faceguard on the downstream side protects the media.
Model,dimensions and parameters:
Dimensions(mm) |
Rated air flow at 0.45m/s | Initial Resistance under Standard air flow | |||||
HEPA | ULPA | ||||||
A B C | m3/h | In.W.G. | Pa | In.W.G. (Pa) | |||
600 600 600 600 600 600 | 600 915 1210 600 915 1210 | 150 150 150 175 175 175 | 600 900 1200 600 900 1200 | 0.50 0.50 0.50 0.32 0.32 0.32 | 125 125 125 80 80 80 | 0.58 0.58 0.58 0.36 0.36 0.36 | 145 145 145 90 90 90 |
