ULPA Hepa Ceiling Filter Modules Filter Box
- Shenzhen
- T/T Credit Card
You May Like
-
Industrial Filtration Equipment Hepa Filter Module Box
-
ULPA Air Filter Waterproof Fiberglass Ceiling Filter Modules
-
Light Shell Hepa Filter Modules Ceiling Filter Modules
-
GH HEPA Filter Box Ceiling Filter Module
-
Premium Cooled Steel Plate Material HEPA Air Outlet
-
Cheap Price High Quality Blower Hepa Filter Box
Product Details
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | FM | After-sales Service Provided | No overseas service provided |
Product Description

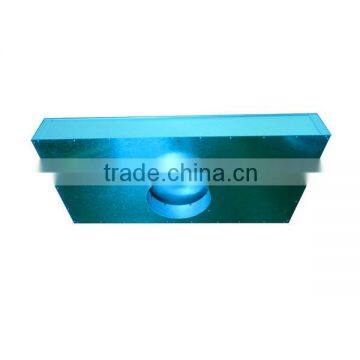

ULPA Hepa Ceiling Filter Modules Filter Box
Ducted Ceiling Module .The Gel Seal filters are available in HEPA or ULPA efficiencies. The dimple pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free, tight seal. The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper control and challenge port for the measurement of challenged aerosol. An anodized extruded aluminum center divider with access port provides access for adjustment of the distribution plate and measurement of the resistance and challenge aerosol. A painted expanded metal faceguard on the downstream side protects the media.
Model,dimensions and parameters:
Dimensions(mm) |
Rated air flow at 0.45m/s | Initial Resistance under Standard air flow | |||||
HEPA | ULPA | ||||||
A B C | m3/h | In.W.G. | Pa | In.W.G. (Pa) | |||
600 600 600 600 600 600 | 600 915 1210 600 915 1210 | 150 150 150 175 175 175 | 600 900 1200 600 900 1200 | 0.50 0.50 0.50 0.32 0.32 0.32 | 125 125 125 80 80 80 | 0.58 0.58 0.58 0.36 0.36 0.36 | 145 145 145 90 90 90 |
