Dongguan factory roll floor fiberglass filter media for spray booth
Product future:
1.Made of long fiberglass in non-woven way ,large ventilation quantity, small resistance ,good efficiency of the dust arrestance for the over-spray
2.PTFE fiberglass fibers provide good all-around chemical and temperature resistance
3.Lightweight fabric design and construction provides excellent dimensional stability, flexibility, and resistance to mechanical
4.High strength fiberglass increasing structure; the windward side is green ,the leeward side is white
5.The low compression performance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust
Nonflammability ,temperature resistance at 170°C
Specification:
| Type: | JOWELL-30 | JOWELL-50 | JOWELL-60 | JOWELL-70 | PJOWELL-100 |
| Composition: | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber |
| Thickness | 30mm | 50mm | 60mm | 70mm | 100mm |
| Max working temperature | 180°C | 180°C | 180°C | 180°C | 180°C |
| Product density | 180g/m2 | 210g/m2 | 230g/m2 | 280g/m2 | 320g/m2 |
| Nominal Velocity(m/s) | 2 m/s | 2 m/s | 1.5m/s | 1.5m/s | 1.5m/s |
| Initial pressure drop | 20 Pa | 20 Pa | 25 Pa | 25 Pa | 30 Pa |
| Final pressure drop | 150 Pa | 150 Pa | 200 Pa | 250 Pa | 250 Pa |
| Dust holding capacity | 2800g/m2 | 3200g/m2 | 3350g/m2 | 3550g/m2 | 3800g/m2 |
| Classification(EN779) | G2 | G2 | G3 | G3 | G4 |
| Flame resistance |
Specialty:
* Paint stop filter also named floor filter, fiberglass media.
* It is applied to high-quality paint spray filter in the surface paint.
* It is processed by long fiberglass fiber in non-woven way, large ventilation quantity and low resistance can keep better filter effect.
* The high performance fiber is in gradual structure (the fiber density increases gradual toward pure air) assuring its high efficiency, Windward side is green, leeward side is white. Low compressibility keeps its shape and benefit for deposit paint, mist, soot, etc.
Application: Paint stop filter applies for many industries, such as: painting industry, pollution prevents and control, air conditioning, electronic, pharmaceutical factory, food sanitation etc.

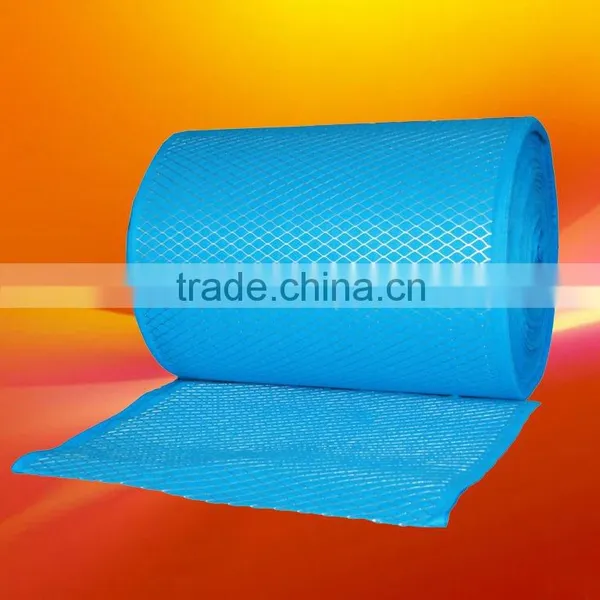

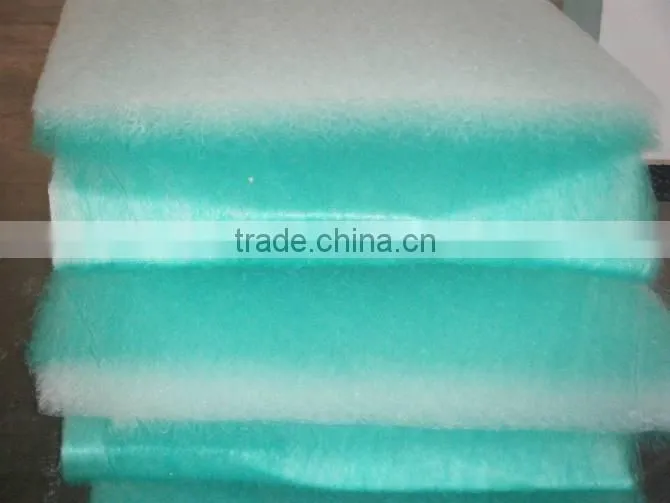

Product photos show

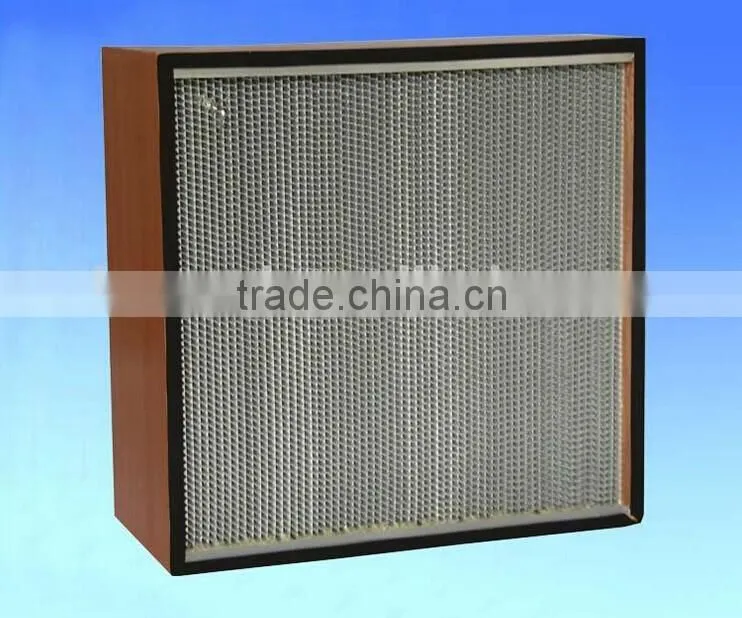

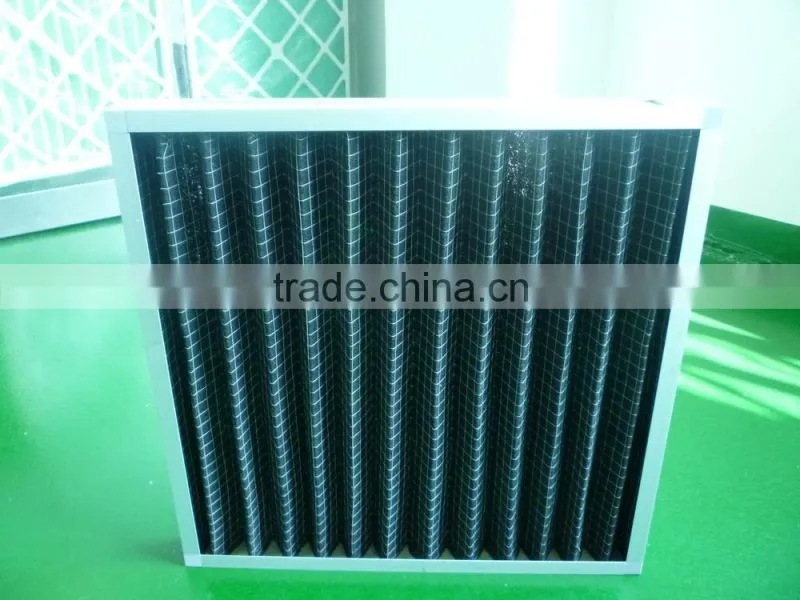

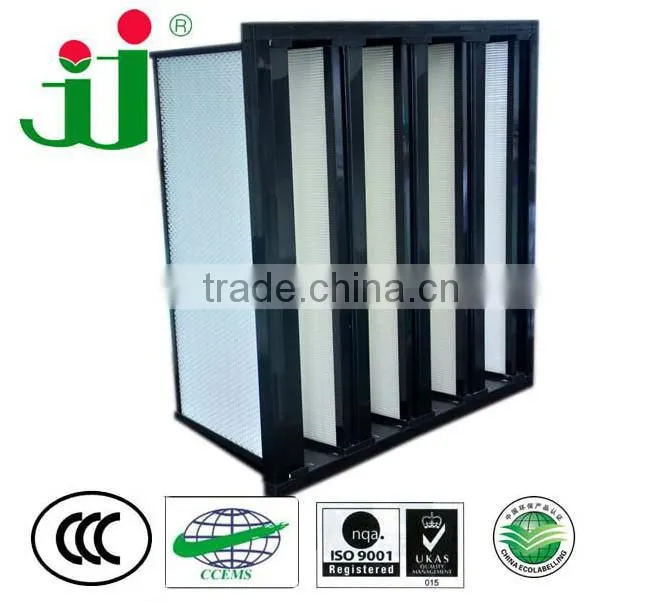

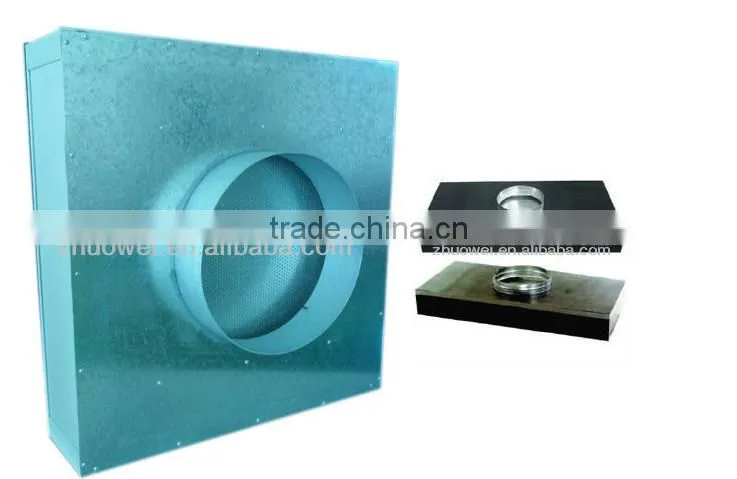

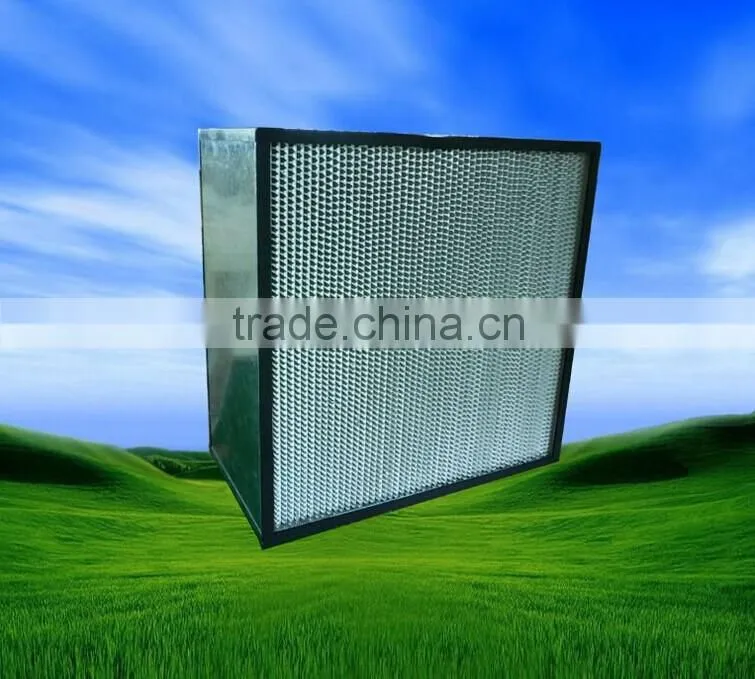

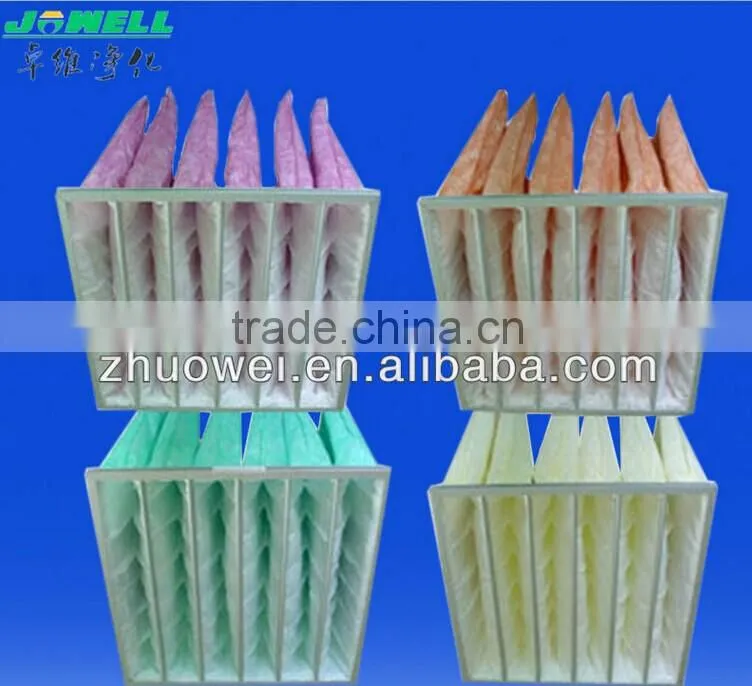

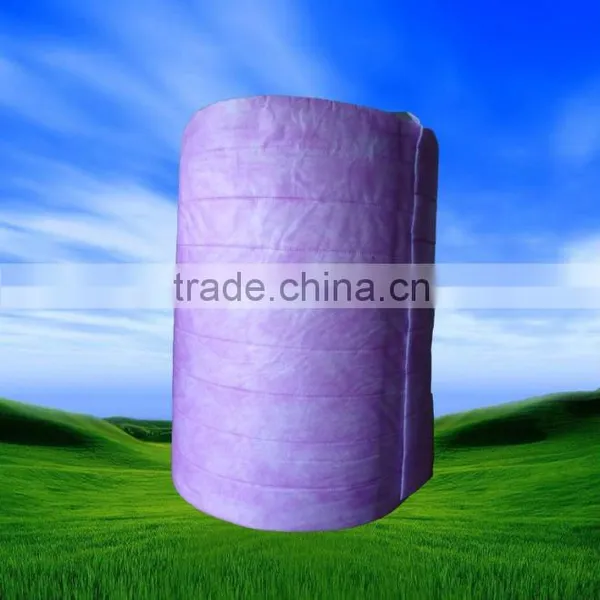

We also offer other type air filter as below
1.Factory direct sale,OEM,ODM avaliable, R&D department availiable.
2.High Production Capability, prompt delivery.
3.Self-produced frame, low costs, competitive price.
4.Strictly testing equipment, full-experienced technicians ,quality garanteed.
quality with good after-sale service.
Q:Are you a manufacturer?
A: Yes,we are professional in producing air filter field for more than 12 years
Q.Can you change the size or color for the goods ?
A: Yes,We can customized for you and welcome to discuss with us.

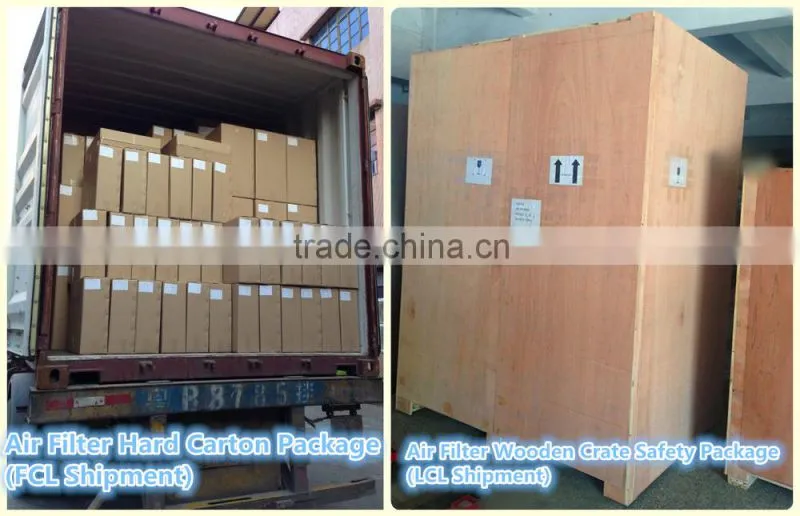

Q.Can you arrange the shipment to us ?
A: Yes,please tell your sea port or air port or your address to us, We will arrange the goods to you by air or by sea.
Q.Do you have certifications for your goods?
A: Yes,We have CE CERTIFICATIONS,ISO9001:2000 quality management system and ISO14000 environmental

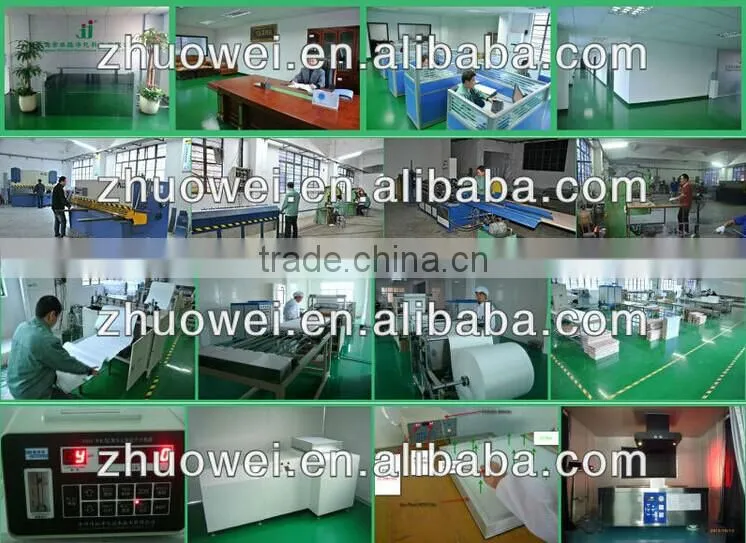

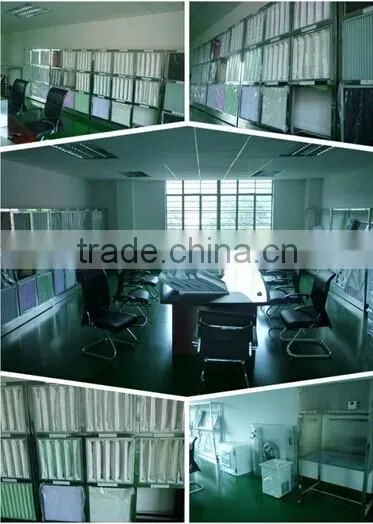

Welcome to visit our factory !
Hope cooperate with you near future !
