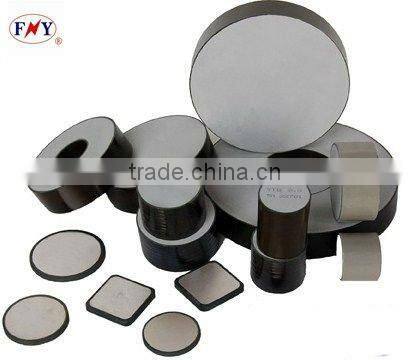

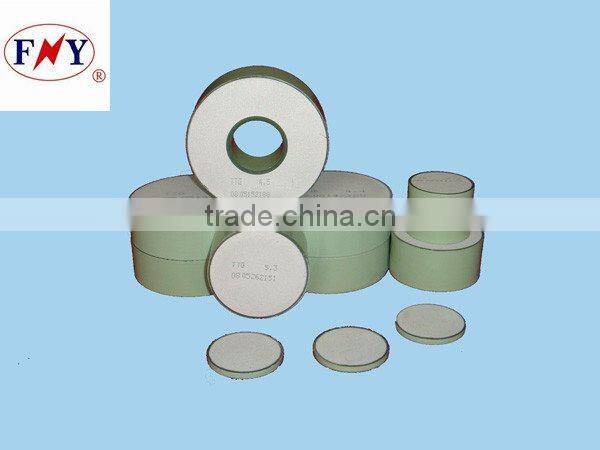

Metal Oxide Varistor
- tianjin/shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | shijiazhuangfayun | |
| Model Number | D3-D8 | Type | Varistor | |
| Technology | Metal Oxide | Package Type | Surface Mount | |
| Resistance | - | Resistance Tolerance | - | |
| Rated Power | - | Temperature Coefficient | - | |
| Operating Temperature | - |
Product Description
Specifications
Metal Oxide Varistor1)Fast response to the rapidly rising surge voltage.
2)Excelllent non-linearity voltage
3)ISO9001:2000
Metal Oxide Varistor is non-linear resistor utilizing as semiconductor electrocnic ceramic element mainly composed of zinc oxide and its resistance change as a function of applied voltage.It's called varistor or mental oxide varistor, just as it is sensitive to voltage's change.
Technical parameters of Zinc Oxide Varistor For HV Arresters | ||||||||
Model No. | Diameter | Height mm | Voltage at 1mA D.C. | Ratio of residual Voltage at 8/20us lightning impulse and 1mA DC | 4/10 μs 2 times high current | 18times of 2μs rectangular current impulse | Usage | |
mm | mm | KV | 5kA | 10kA | kA(max.) | kA(max.) | ||
D3 | 35+0-1 | 24±1 | 5.0±0.5 | 1.85 | 40 | 100 | Distribution Power Station | |
D4 | 42±1 | 24±1 | 5.0±0.5 | 1.8 | 65 | 200 | Power Station Electric machinery Parallel complementary capacitor | |
D5 | 52±1 | 24±0.5 | 4.7±0.5 | 1.72 | 1.79 | 65 | 400 | Power Station Electric machinery |
D6 | 59±1 | 22.5±0.5 | 4.5±0.5 | 1.66 | 1.77 | 100 | 600 | Power Station |
D7 | 71+1-0 | 22.5±0.5 | 4.5±0.5 | 1.58 | 1.70 | 100 | 800 | |
D8 | 81+1-0 | 22.5±0.5 | 4.5±0.5 | 1.60 | 1.65 | 100 | 1000 | |
We can also meet your detailed request,welcome to contact us for any questions.
