All Rating Available Zinc Oxide Varistors for Arrester

Shijiazhuang Fayun Electric Co., Ltd.
All Rating Available Zinc Oxide Varistors for Arrester thumbnail-1
All Rating Available Zinc Oxide Varistors for Arrester photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FY
Model Number:
D3
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name FY
Model Number D3
Type Fuse Resistor
Technology Metal Oxide
Package Type Surface Mount
Resistance -
Resistance Tolerance -
Rated Power -
Temperature Coefficient -
Operating Temperature -

Specifications

zinc oxide varistor
1.Full face metalized electrodes.
2.100% production tested.
3.All rating available.
4.ISO9001:2000

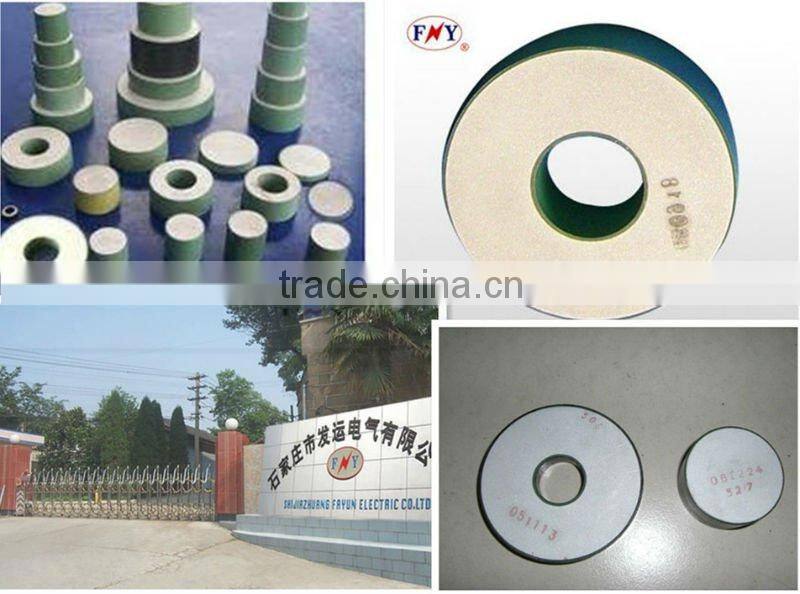

All rating available Zinc Oxide Varistors for arrester

resistor technical parameters

Model:D3,D4,D5,D6,D7,D8

Outside diameter: 28±0.5mm-88±0.5mm

Height:22.5±0.5mm-24±0.5mm

Reference valtage at 1mA DC: 4.0-5.5kv

Leakage current at 0.75U 1mA≤uA: 10/15

Ratio of voltage between residual voltage at 8/20us lightning impulse and 1 mA DC: 5KA:1.60-1.83

10KA:1.65-1.85

Withstand of current impulse: 2ms(A): 100/150/200/250/400/450/500/600/800/900/1000/1500

                                                4/10us(KA): 65/100

Apparent chargeability 85% ageing coefficient: KCT≤1.0
