Product Details
| Place of Origin | Hebei, China | Brand Name | FY | |
| Model Number | MYL10D | Type | Varistor | |
| Technology | Metal Oxide | Package Type | Other, . | |
| Resistance | . | Resistance Tolerance | ±10% | |
| Rated Power | . | Temperature Coefficient | . | |
| Operating Temperature | . |
Product Description
Specifications
ZnO Varistor1.Diameter:60mm
2.Voltage:47-1200V
3.Colour:yellow green.
4.Use:Protection of semiconductor

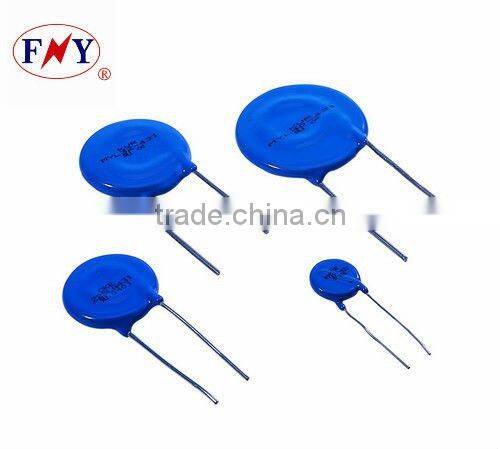

ZnO Varistor
Usage: The metal oxide varistors are non-linear resistors utilize a semiconductor electronic cermaic element mainly composed of Zinc Oxide and ites resistance change as a function of the applied voltage.
Recommended Applications:
Protection of semiconductor
Surge protection of consumer equipment
Surge protection of communication,measuring or controller instrument
Relay of electro magnetic valve surge instrument.
| MODEL NO. | VARISTOR VOLTAGE | MAX. CONTINUOUS VOLTAGE | MAX. CLAMPING VOLTAGE 8/20μS | MAX.ENERGY(J) | MAX. PEAK CURRENT (8/20μS)(A) | |||
| VDC(V) | VACrms(V) | VDC(V) | VXA(V) | IP(A) | 2ms | 1 time | 2 times | |
| MYL-60D201K | 200(180-220) | 130 | 170 | 340 | 350 | 450 | 50000 | 30000 |
| MYL-60D221K | 220(198-242) | 140 | 180 | 360 | 350 | 450 | 50000 | 30000 |
| MYL-60D241K | 240(216-264) | 150 | 200 | 395 | 350 | 530 | 50000 | 30000 |
| MYL-60D271K | 270(243-297) | 175 | 225 | 455 | 350 | 550 | 50000 | 30000 |
| MYL-60D301K | 300(270-300) | 190 | 245 | 495 | 350 | 600 | 50000 | 30000 |
| MYL-60D331K | 330(297-363) | 215 | 275 | 540 | 350 | 650 | 50000 | 30000 |
| MYL-60D361K | 360(324-396) | 230 | 300 | 595 | 350 | 700 | 70000 | 45000 |
| MYL-60D391K | 390(351-429) | 250 | 320 | 650 | 350 | 880 | 70000 | 45000 |
| MYL-60D431K | 430(387-473) | 275 | 350 | 710 | 350 | 950 | 70000 | 45000 |
| MYL-60D471K | 470(423-517) | 300 | 385 | 775 | 350 | 1000 | 70000 | 45000 |
| MYL-60D511K | 510(459-561) | 320 | 415 | 855 | 350 | 1100 | 70000 | 45000 |
| MYL-60D561K | 560(504-616) | 350 | 455 | 945 | 350 | 1200 | 70000 | 45000 |
| MYL-60D621K | 620(558-682) | 380 | 505 | 1025 | 350 | 1300 | 70000 | 45000 |
| MYL-60D681K | 680(612-748) | 420 | 560 | 1120 | 350 | 1500 | 70000 | 45000 |
| MYL-60D751K | 750(675-825) | 460 | 615 | 1240 | 350 | 1600 | 70000 | 45000 |
| MYL-60D821K | 820(738-902) | 510 | 670 | 1355 | 350 | 1800 | 70000 | 45000 |
| MYL-60D911K | 910(819-1001) | 550 | 745 | 1500 | 350 | 2200 | 70000 | 45000 |
| MYL-60D102K | 1000(9000-1100) | 625 | 825 | 1650 | 350 | 2200 | 70000 | 45000 |
| MYL-60D112K | 1100(990-1210) | 680 | 895 | 1815 | 350 | 2350 | 70000 | 45000 |
| MYL-60D122K | 1200(1080-1320) | 705 | 970 | 1980 | 350 | 2600 | 70000 | 45000 |
