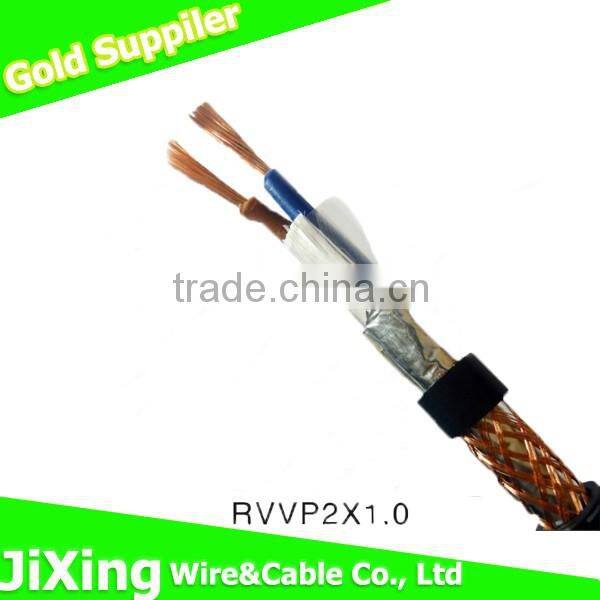

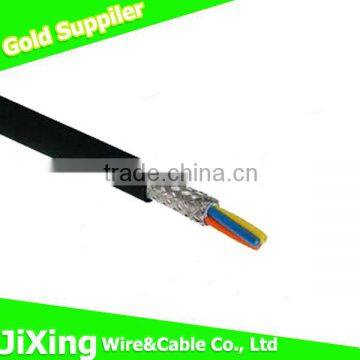

RVVP RVVPS Copper Wire Shielded Twisted Pair Cable

RVVP RVVPS copper wire shielded twisted pair cable

1.ITEM DESCRIPTION:

Model:

RVVP,RVVPS is a kind of soft conductor insulated wire with shielding and PVC jacket,also known as electrical anti-interference flexible connection cable,Rated voltage 300/300V.Common cores from 2-24 cores and section area including 0.12mm,0.2mm,0.3mm,0.4mm,0.5mm,1mm,1.5mm.

Description:Single core and multi-core cables with copper or tinned copper conductor;XLPE insulated and PVC sheathed,Copper wire braid.Cables are rates at 300/300V or 300/500V and conform to IEC 60228.5

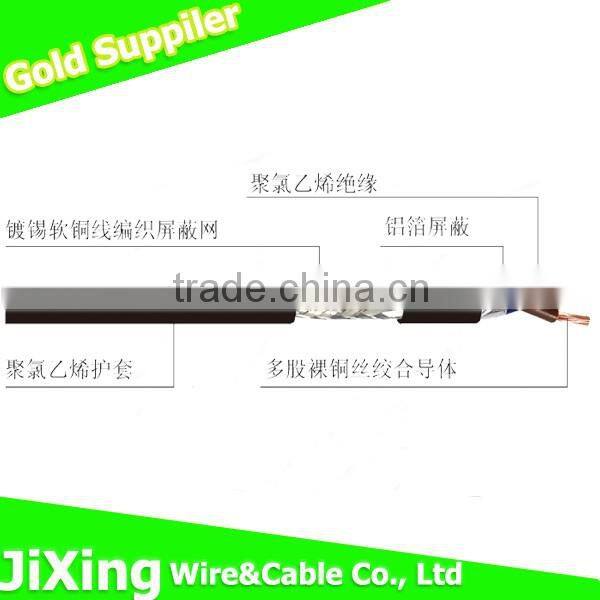

Construction:

Conductor:Plain annealed copper or tinned copper conductor

No. of core:2-24

Cross Section:0.5-25mm

Shape: Circular Compacted or shaped Stranded Conductor (Class 5)

Insulation:PVC

Identification of cores:<=5core,colorful insulation;>5 core,Black insulation with white No. ,including Yellow-Green Wire.

Shielding:Copper wire braid

Sheath:PVC

Assembly:Two,three,four or five insulated conductors are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

Application:

A good EMC for braid screen,it is good at the high EMC and narrow space.Not for use outside closed rooms.It is same with NYSLCY cable and H05VC4V-F cable,for installation in closed conduits and tubes in door.

Standards

International:IEC 60228

China:GB/T 3956

Other standards such as BS,DIN and ICEA upon request

Certificates

CE,RoHS,CCC,SGS,ISO-9001 and more others at request

Technical data

Test Voltage:2000V,5min

Insulation resistance:>20M • Ω *Km

Operating temp.(static):-30~70 ℃

Operating temp.(flexing): -5~70 ℃

Bending Radius:15×O.D.

Flame retardance:IEC 60 332.1

Norminal cross section size of conductor:  0.5mm², 1mm² 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²

Cores available: 2 cores-24 cores.

2.Our factory:

company profile:

Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.

3.Our equipment:

4.Our electric cable and wire:

0.6/1KV PVC,XLPE insulated armored power cable

Environment-friendly LSZH(low smoke halogen free) cable

Flame retardant cable

Branching wire

aluminum cable

Welding cable

Internet Lan cable

control cable

THHN,THW etc UL America standard cable

CCA cable

We can also providing customizing service according to your requirement,your specificantions and sample.
