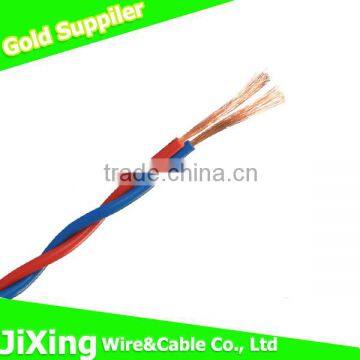

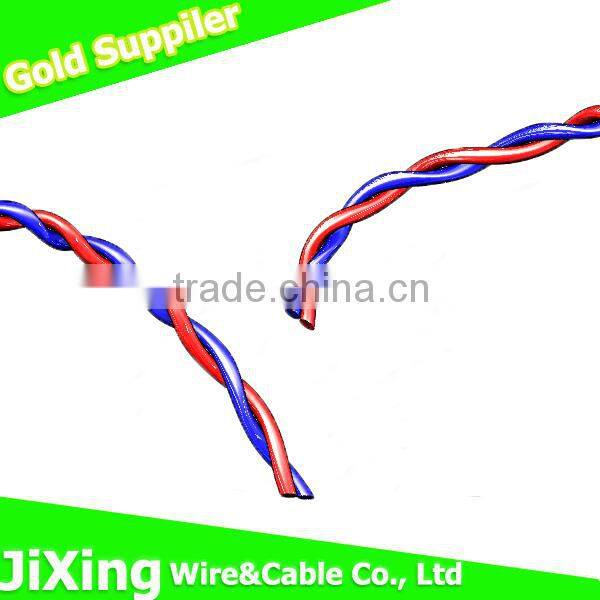

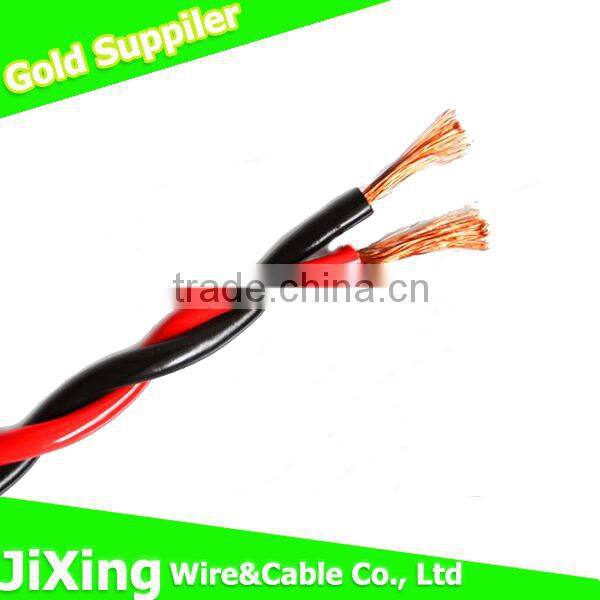

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting

Name: RVS PVC Insulated Double Twisted Alarm Cable for Firefighting
Brand: YONGKUNTAI TIANXIANG
SKU: 133311921
Availability: InStock

Shenzhen Jixing Electric Wire & Cable Co., Ltd.

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-1

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-2

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-3

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-4

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-5

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting thumbnail-6

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-1

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-2

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-3

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-4

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-5

RVS PVC Insulated Double Twisted Alarm Cable for Firefighting photo-6

US$ 0.01 - 10 MOQ: 3 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

YONGKUNTAI TIANXIANG

Model Number:

RVS

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name YONGKUNTAI TIANXIANG

Model Number RVS

Type Insulated

Application Other, instrument or building

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

RVS red blue or red yellow twisted pair fire alarm cable

1.ITEM DESCRIPTION:

Name: RVS red blue or red yellow twisted pair fire alarm cable.

Twisted pair cabling is a type of wiring in which two conductors of a single circuit are twisted together for the purposes of canceling out electromagnetic interference (EMI) from external sources; for instance, electromagnetic radiation from unshielded twisted pair (UTP) cables, and crosstalk between neighboring pairs.

Model:RVS

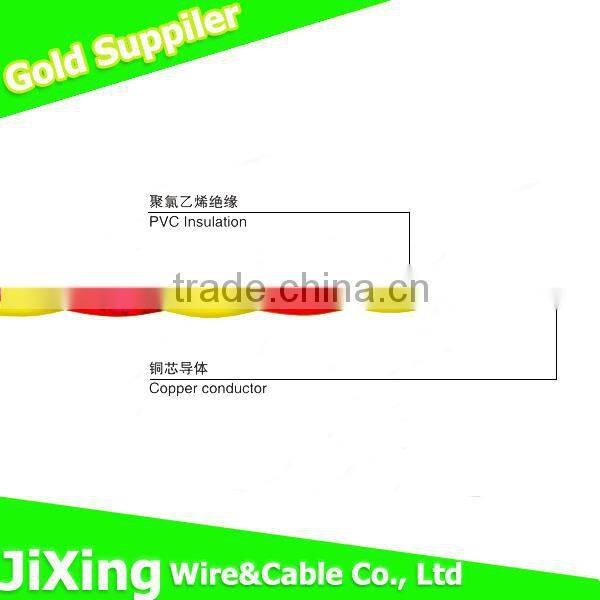

Construction:

RVS

conductor:single solid copper wire or multi-core stranded copper wire

Insulation&sheath:PVC

Specification:

number of cores*section-area of each core(sq mm)

2×0.50, 2×0.75,2×1,2×1.5,2×2.5,2×4,2×6.

Application:

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 300/500V or less.

Service Conditions

Working temperature:Not more than 70oC.

Technical data

PVC insulated PVC sheathed flat wire

Type	Name	Properties
RVS	RVS double color dual core PVC insulated Twisted Pair Cable	In normal case, max. temperature of conductor shall be 70℃

Technical data (RVS)

Norminal Cross-section(mm²)	Number of wires	Average outer diameter(mm)	Condctor resistance at 20 ℃( ≤ Ω.km)	Ampacity(A)	Weight(kg/km)
2*0.5	2*28	6	39	9.5	24
2*0.75	2*42	6.2	26	12.5	31
2*1	2*56	6.5	19.5	15	33.6
2*1.5	2*84	7.5	13.3	19	42.6
2*2.5	2*133	8.5	7.98	26	68
2*4	2*140	10.1	4.95	36	100
2*6	2*210	12.4	3.3	47	144

Pictures Of different Specifications

2.Our factory:

company profile:

Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.

3.Our equipment:

4.Our electric cable and wire:

0.6/1KV PVC,XLPE insulated armored power cable

Environment-friendly LSZH(low smoke halogen free) cable

Flame retardant cable

Branching wire

aluminum cable

Welding cable

Internet Lan cable

control cable

THHN,THW etc UL America standard cable

CCA cable
