China 1.5mm2 2.5mm2 electrical wire 450/750V
- 3000000 Meter / Meters per Month
- Shenzhen
- T/T
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YongKunTai | Model Number: | BVR |
Type: | Insulated | Application: | Overhead | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description
Specifications
1.made-in-China wire2.high purity cooper wire
3.jacket electrical wire
c single core cable
- Application:
- 6491X Cable H07V-R/H07V-U and 60227IEC BV/BVR cable is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
- Standards:
- GB/T 5023.3-2008/IEC 60227-3:1997,JB/T 8734.2-1998,CCC Certification.
- Conductor:
- BVR=(H07V-R): Class 2 stranded plain copper conductors.
- BV= (H07V-U): Class 1 solid plain copper conductor to 60227IEC01
Insulation:
PVC (Polyvinyl Chloride) Type
Insulation Colour:
Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey
- Voltage Rating:450/750V
- Temperature Rating:0°C to +70°C
Noted:

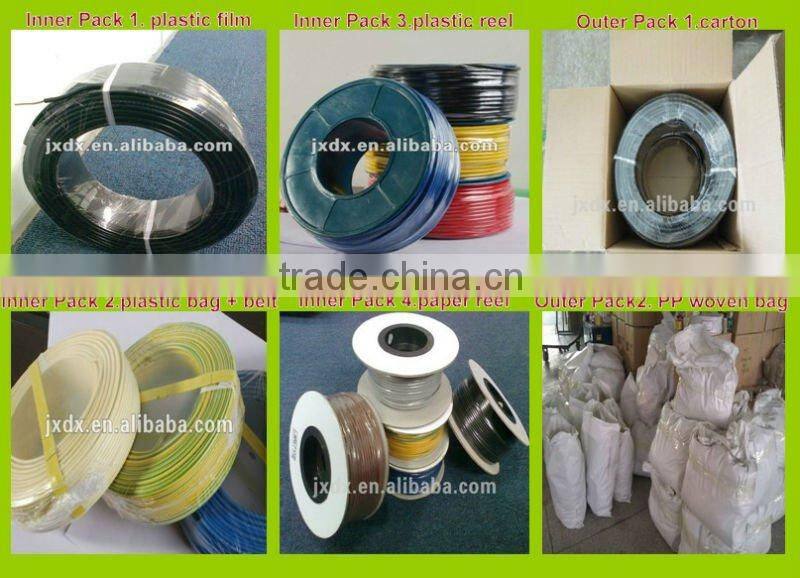

1.A roll of wire length: 100 meters(plus or minus 1 meters);
2. BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 5% of BV,
More Products:B Series
Model | Rated Voltage | Name | Application | Rated Temperature |
60227IEC01 BV | 450/750V |
Copper conductor PVC insulated cable (electrical wire) |
Fixed laid indoors Conduit etc. |
0°C to +70°C
|
60227IEC05 BV | 300/500V | |||
BLV | 450/750V | Aluminum conductor PVC insulated cable (electrical wire) | ||
BVR | 450/750V | Copper conductor PVC insulated flexible cable (electrical wire) | Be for laying permanent place where flexible required. | |
60227IEC10 BVV | 450/750V | Copper conductor PVC insulated PVC sheathed round cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.
| |
BLVV | 450/750V | Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
BVVB | 450/750V | Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
Your requirements: | ||||
1. | ||||
2. | ||||
3. |
Your success is our business.
Move right now, don’t hesitate to write us email, what you want is what we do.
Contact Us
- Shenzhen Jixing Electric Wire & Cable Co., Ltd.
- Contact nameCharles Lin
- Phone86-0755-27536065
- AddressA3 First Floor North, Dadi Industrial Area, Yanchuan,Songgang Street,Bao'an District Shenzhen,Guangdong
