Specifications
1)Use for electric wiring2)pvc copper wire
3)in Electrical Equipment and Supplies
4)single core cable

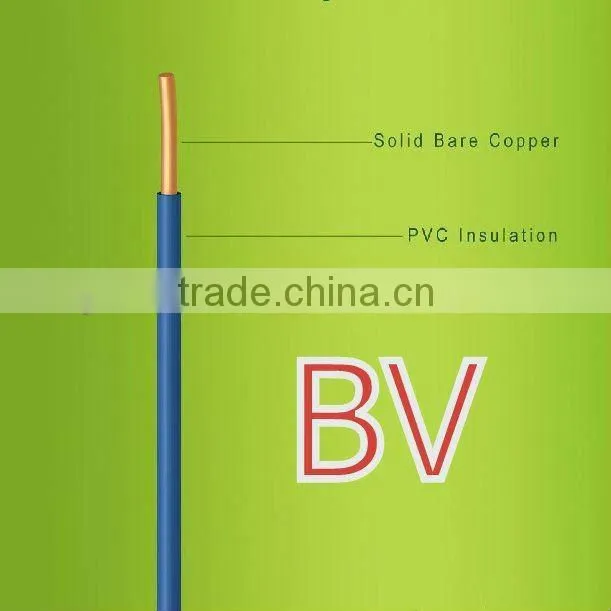

BV Structure
BV in stock
The following specifications are in stock,small quantity is welcome.
Name |
Usage |
Specification |
|
450/750V Copper conductor PVC insulated rigid cable (electrical wire)
|
Building and construction, instrument |
BV 1.5mm² |
BV 2.5mm² | ||
BV 4mm² | ||
BV 6mm² | ||
BV 10mm² | ||
BV 16mm² | ||
BV 25mm² | ||
BV 35mm² | ||
BV 50mm² | ||
BV 70mm² | ||
BV 95mm² | ||
BV 120mm² | ||
BV 150mm² | ||
BV 185mm² |
BV 1.5mm² ( 1 pcs of copper wire)
BV 2.5mm² ( 1 pcs of copper wire)
BV 4mm² ( 1 pcs of copper wire)
BV 6mm² ( 1 pcs of copper wire)
BV 10mm² (7 pcs of copper wires)
BV 16mm² (7 pcs of copper wires)
BV 25mm² (7 pcs of copper wires)
BV 35mm² (7 pcs of copper wires)
BV 50mm² (19 pcs of copper wires)
BV 70mm² (19 pcs of copper wires)
BV 95mm² (19 pcs of copper wires)
BV 120mm² (37 pcs of copper wires)
BV 150mm² (37 pcs of copper wires)
BV 185mm² (37 pcs of copper wires)

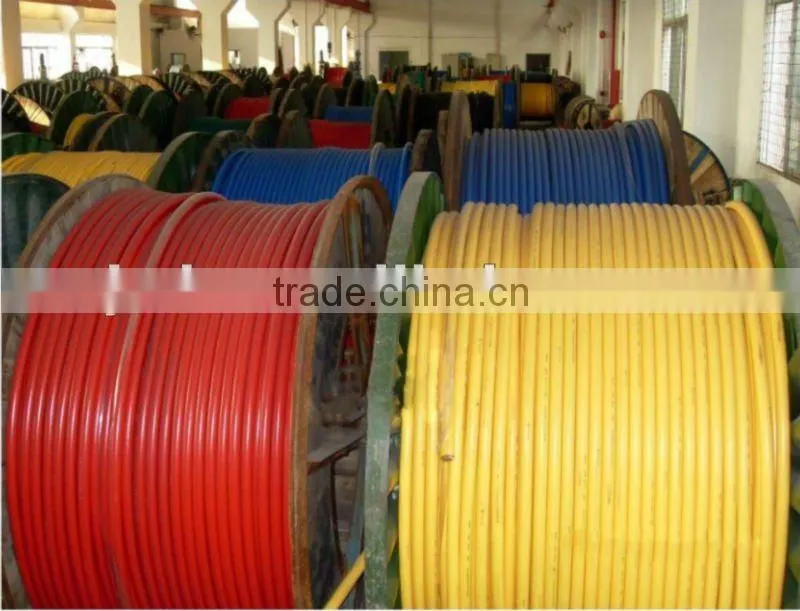

Our stock house

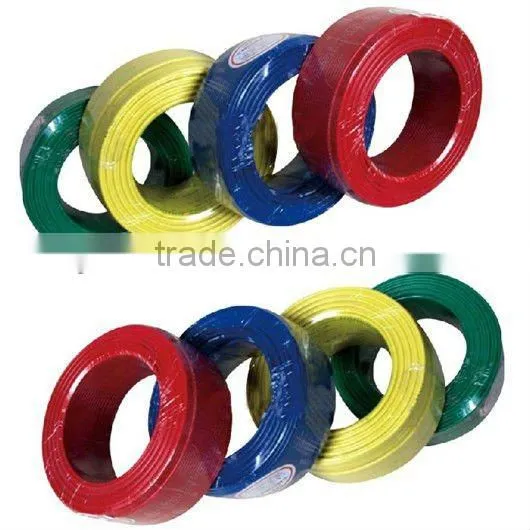

Packing--(size from BV1.5mm² to BV16mm² )
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Packing--(size above BV25mm²)
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
|
Code Designation by IEC |
Code Designation by GB |
Rated Voltage |
Name |
Application |
Rated Temperature |
60227 IEC 01 |
BV |
300/500V |
Copper conductor PVC insulated rigid cable (electrical wire) |
Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 |
BV |
450/750V |
|||
|
BLV |
450/750V |
Aluminum conductor PVC insulated rigid cable (electrical wire) |
||
|
BVR |
450/750V |
Copper conductor PVC insulated semi-flexible cable (electrical wire) |
Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 |
BVV |
300/500V |
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
|
|
BLVV |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
||
|
BVVB |
300/500V
|
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
|
BLVVB |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
60227 IEC 02 |
RV |
450/750V
|
Copper conductor PVC insulated flexible connector cable (electrical wire) |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 |
RV |
300/500V |
|||
60227 IEC 42 |
RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
||
|
RVS |
300/300V
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227 IEC 52
|
RVV |
300/300V
|
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
60227 IEC 53 |
RVV |
300/500V |
Noted:BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 3% of BV.

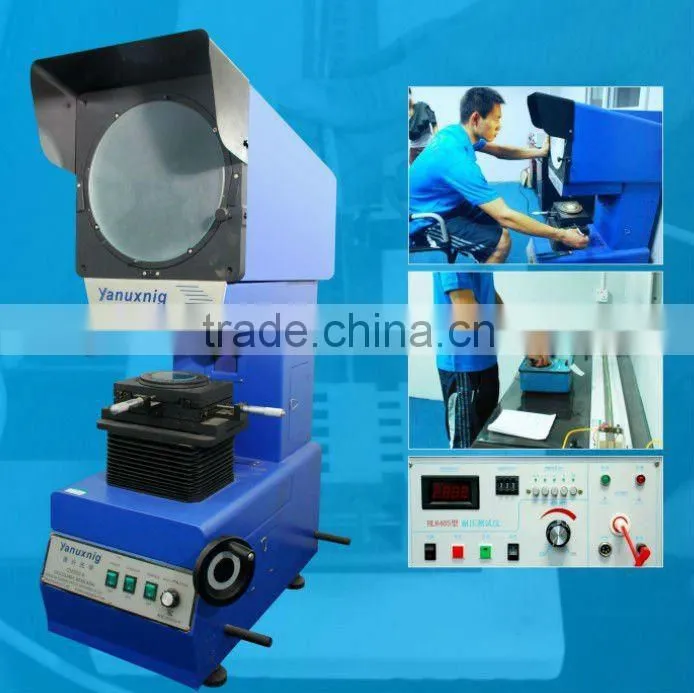

Testing Machine
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
