1mmSemi-flexible Copper Cable Wire Use for Electric Wiring
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YONGKUNTAI TIANXIANG | |
| Model Number | BVR | Type | Insulated | |
| Application | Other, electric wiring,building,construction | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | Other, PVC, PVC (Polyvinyl Chloride |
Product Description
Specifications
1)Use for electric wiring2)PVC single core cable
3)Semi-flexible&stranded copper
4)Low price good quality
5)China BVR
BVR Structure
BVR in stock
The following specifications are in stock,small quantity is welcome.
Name | Usage | Specification |
450/750V Copper conductor PVC insulated semi-flexible cable (electrical wire)
| Be for laying permanent place where flexible required.
| BVR 0.75mm² |
BVR 1mm² | ||
BVR 1.5mm² | ||
BVR 2.5mm² | ||
BVR 4mm² | ||
BVR 6mm² | ||
BVR 10mm² | ||
BVR 16mm² | ||
BVR 25mm² | ||
BVR 35mm² | ||
BVR 50mm² | ||
BVR 70mm² |
*Kindly note that also we can make cables and wires according to your requirements.

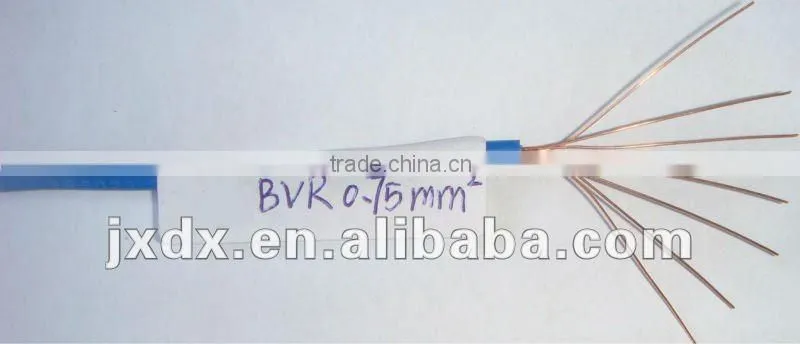

BVR 0.75mm² (7 pcs of copper wires)

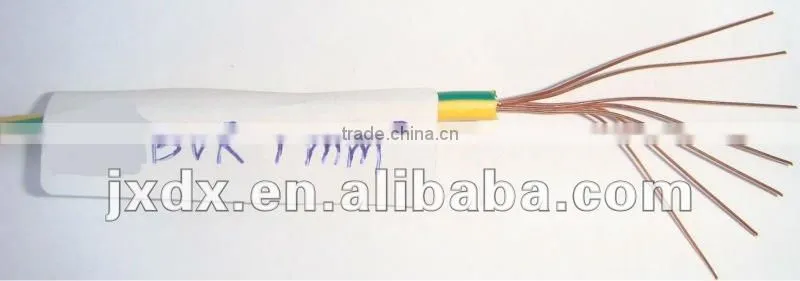

BVR 1mm² (7 pcs of copper wires)

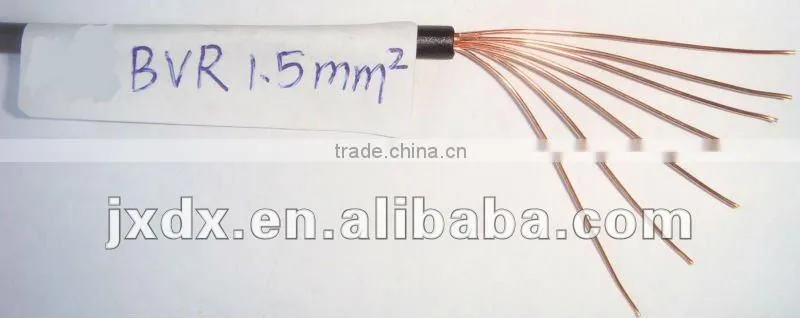

BVR 1.5mm² (7 pcs of copper wires)

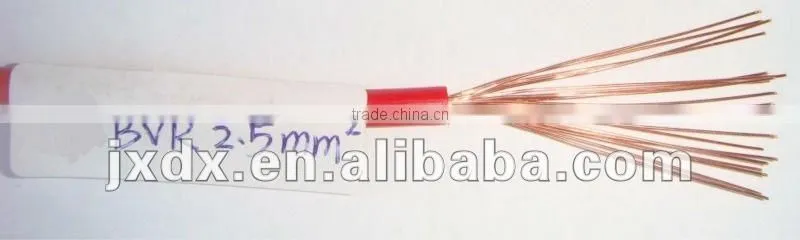

BVR 2.5mm² (19 pcs of copper wires)

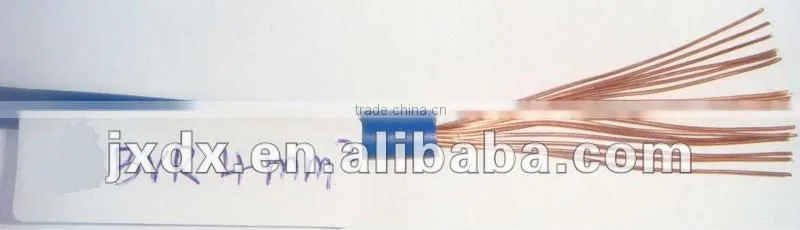

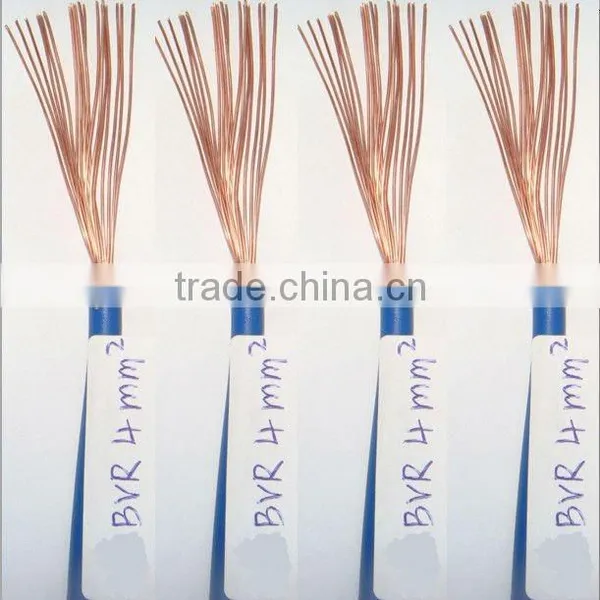

BVR 4mm² (19 pcs of copper wires)

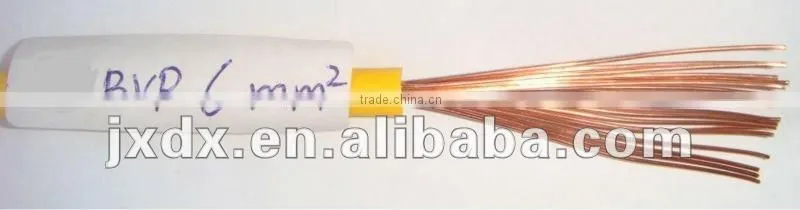

BVR 6mm² (19 pcs of copper wires)

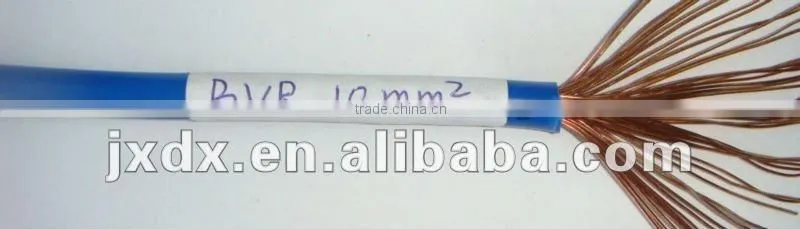

BVR 10mm² (49 pcs of copper wires)

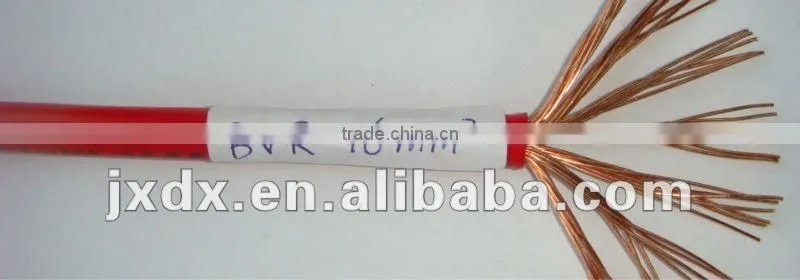

BVR16mm² (49 pcs of copper wires)
Packing--(size from BVR0.75mm² to BVR16mm² )
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Packing--(size above BVR25mm²)
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
All models:
BV,BLV,BVR,BVV,BLVV, BVVB, BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Noted:
BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 3% of BV.
Electrical cables in stock
Certifications:CE,RoHS,CCC
Our testing system
Our factory
*Kindly note that also we can make cables according to your requirements.
