Specifications
BVV SERIES ELECTRICAL CABLE1- Rate Voltage: 300/500V
2-Conductor: Strand
3- Insulation/ Jacket :PVC
4- Round / hard wir
Standard
The cable is manufactured according to GB5023-2008 and JB8734-1998 national
standard or international standard of 60227IEC.
Application
The cables can be applied to the copper(aluminum)-core cables in the rated A/C
voltage ofU/U450/750V and the below power, lighting, daily electric appliances,
apparatus and telecommunication equipments.
Operation characteristics
1-U0/U is 450/750V and 300/500V ;
2-The allowed long-term working temperature of wire should not exceed 70°C,
The cable (wire) shall be installed at temperature not lower than 0°C;
3-The bending radius shall not be less than 4D of the cable overall diameter it is less
25mm; the bending radius shall not be less than 6D of cable overall diameter when
it is more than 25mm.
Manufacture length
1-The coil length of cable (wire) shall be 100M, filled reel length shall be more than
1000M;
2-The short cable are permitted with a length not less than 10m for each and their
quantity shall not exceed 10% of the total supply length, and short length quantity
of every piece not more than 2pcs;
3-Any supply length is permitted based on the agreement with buyer.
The error of metering shall not exceed ±0.5%.
| BVV Series | ||||||||
| Model No. | Nominal cross-sectional area (mm2) | No.of wires (mm) |
Insulation Material | Conductor Material | Sheath | Voltage | Colour | Paking |
| BVV10mm2 | 10mm2 | 7 | PVC | Copper | PVC | 300/500V | black,green,red and so on,as your requirement | 100M/ Roll or as your requiremen |
| BVV16mm2 | 16mm2 | 7 | PVC | Copper | PVC | 300/500V | ||
| BVV25mm2 | 25mm2 | 7 | PVC | Copper | PVC | 300/500V | ||
| BVV35mm2 | 35mm2 | 7 | PVC | Copper | PVC | 300/500V | ||
| BVV50mm2 | 50mm2 | 19 | PVC | Copper | PVC | 300/500V | ||
| BVV70mm2 | 70mm2 | 19 | PVC | Copper | PVC | 300/500V | ||
| BVV95mm2 | 95mm2 | 19 | PVC | Copper | PVC | 300/500V | ||
| BVV120mm2 | 120mm2 | 37 | PVC | Copper | PVC | 300/500V | ||
| BVV150mm2 | 150mm2 | 37 | PVC | Copper | PVC | 300/500V | ||
| BVV185mm2 | 185mm2 | 37 | PVC | Copper | PVC | 300/500V | ||

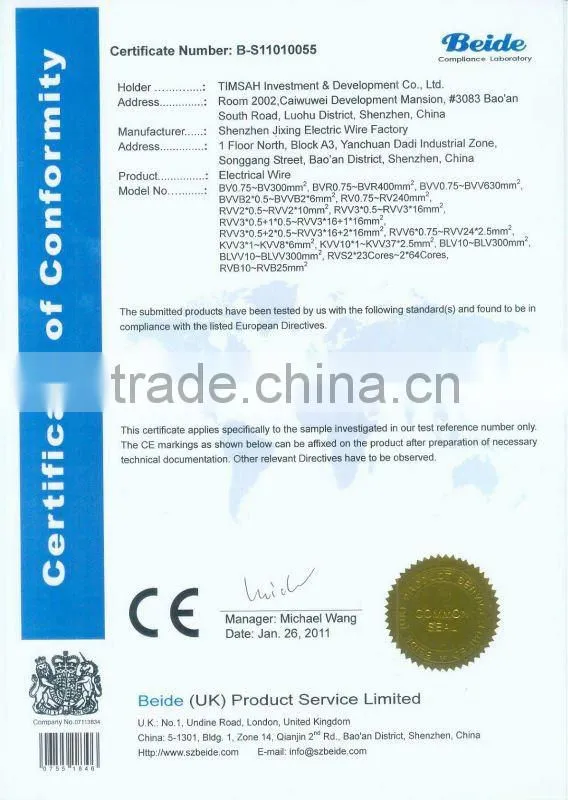

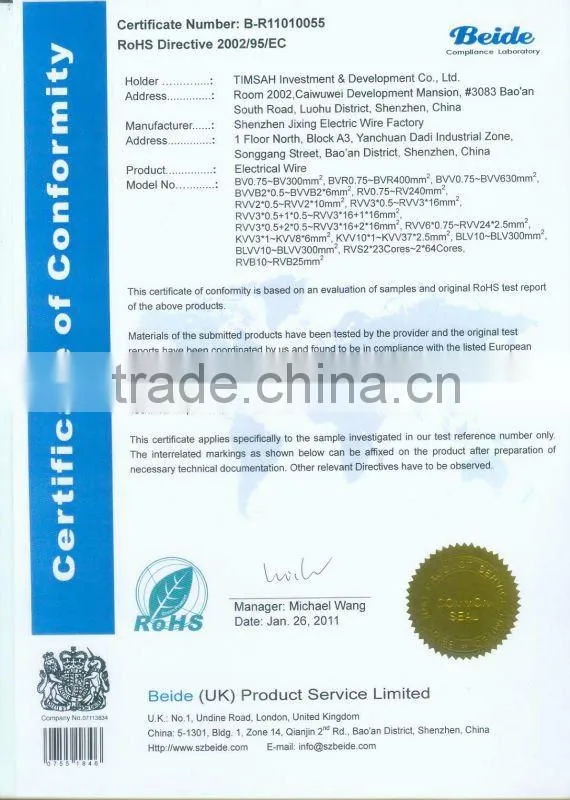

Certification:

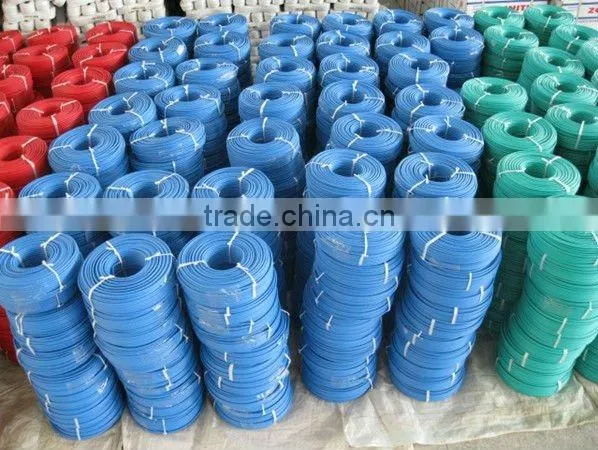

Packing Picture:

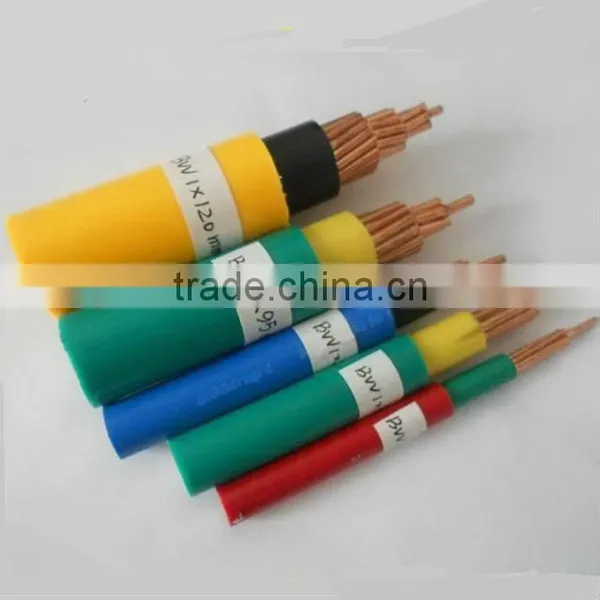

BVV picture (7,19 or 37 pcs of copper wires)
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
