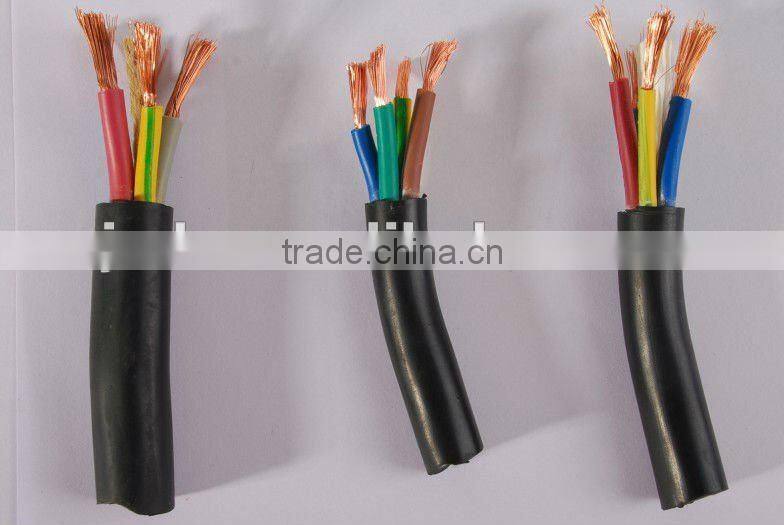

4 Core Power Cable for Household Appliances

FOB Price

US$ 0.137 - 6.865 / Meter

2000 Meters(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	YONGKUNTAI TIANXIANG
Model Number	RVV	Insulation Material	PVC
Type	Low Voltage	Application	Other, 4 core power cord for household appliances,i.e.conditioner,etc.
Conductor Material	Copper	Jacket	PVC

Product Description

Specifications

1)Quick cargo delivery
2)For household appliances
3)Low price good quality
4)PVC insulation and jacket
5)China RVV 4C

RVV 4 core cable

Specification	Usage
RVV 4×0.5 mm²	For lighting as well as light duty appliances
RVV 4×0.75 mm²
RVV 4×1mm²
RVV 4×1.5mm²
RVV 4×2.5 mm²
RVV 4×4 mm²	1.For power transfer from electrical pole to house mains 2.To connect heavy electrical appliances like stoves, conditionerand heave machinery.
RVV 4×6mm²
RVV 4×10mm²
RVV 4×16mm²

*Kindly note that also we can make cables and wires according to your required specification.

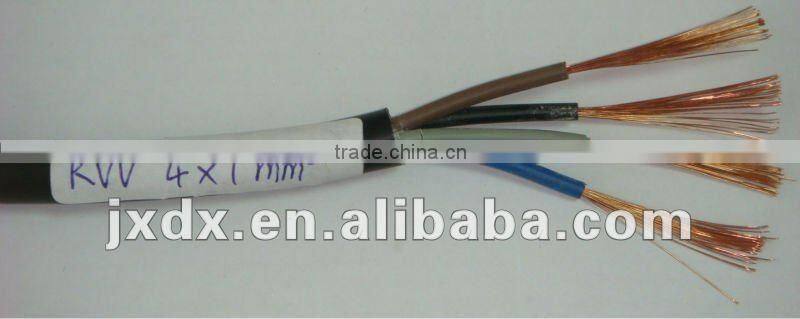

RVV 4×1mm² (4C×32 pcs of copper wires )

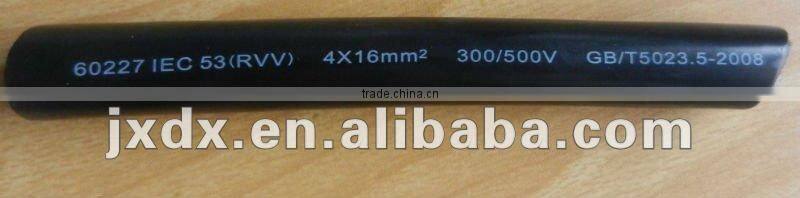

Printing on cable (RVV 4×16mm² )

Why choose us?

1)Rated Voltage: 300/300V,300/500V

2)Rated temperature:0°C to 70 °C

3)Standard: GB, IEC. etc.

4)Testing Voltage: 2.5KV

5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046

6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)

7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey

8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey available)

9)Certification: CCC,CE,RoHS

10)20 years manufacturing experience

11)Specialized in electric/electrical appliances,lighting,construction,home applicances

12)Customer wire cable

13)Stock available, free sample

14)Small profits, quick returns

15)High quality and competitive price

16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery

All models:

BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV

Code Designation by IEC	Code Designation by GB	Rated Voltage	Name	Application	Rated Temperature
60227 IEC 01	BV	300/500V	Copper conductor PVC insulated rigid cable (electrical wire)	Fixed laid indoors Instrument etc.	0°C to +70°C
60227 IEC 05	BV	450/750V
	BLV	450/750V	Aluminum conductor PVC insulated rigid cable (electrical wire)
	BVR	450/750V	Copper conductor PVC insulated semi-flexible cable (electrical wire)	Be for laying permanent place where flexible required.	0°C to +70°C
60227 IEC10	BVV	300/500V	Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire)	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	0°C to +70°C
	BLVV	300/500V	Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
	BVVB	300/500V	Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
	BLVVB	300/500V	Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
60227 IEC 02	RV	450/750V	Copper conductor PVC insulated flexible connector cable (electrical wire)	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	0°C to +70°C
60227 IEC 06	RV	300/500V
60227 IEC 42	RVB	300/300V	Copper conductor PVC insulated flat flexible connector cable (electrical wire)
	RVS	300/300V	Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
60227 IEC 52	RVV	300/300V	Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
60227 IEC 53	RVV	300/500V

Packing--(size from RVV 4×0.5mm² to RVV 4×2.5mm² )

1-paper reel

2-plastic reel

3-metal reel

4-plastic film (free)

5-plastic bag+belt

Packing--(size above RVV 4×4mm²)

Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag

Option3-plywood reel

Our factory

*Kindly note that also we can make cables according to your requirements.
