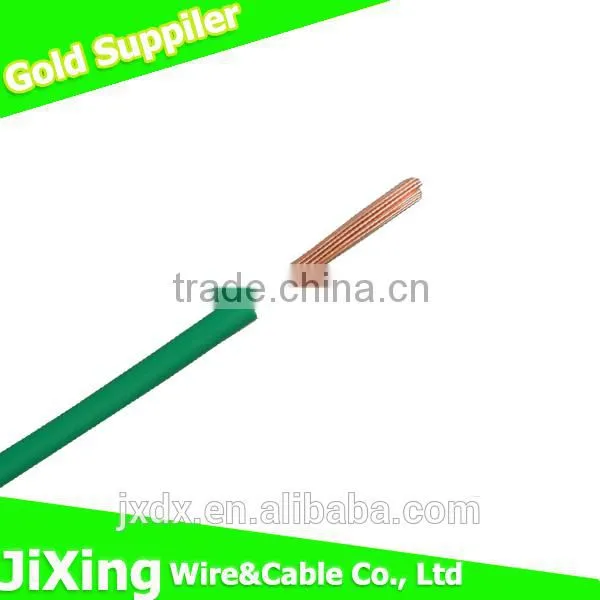

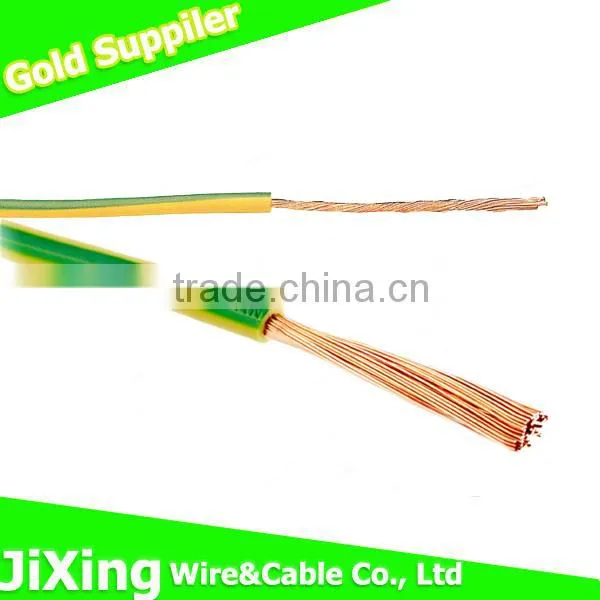

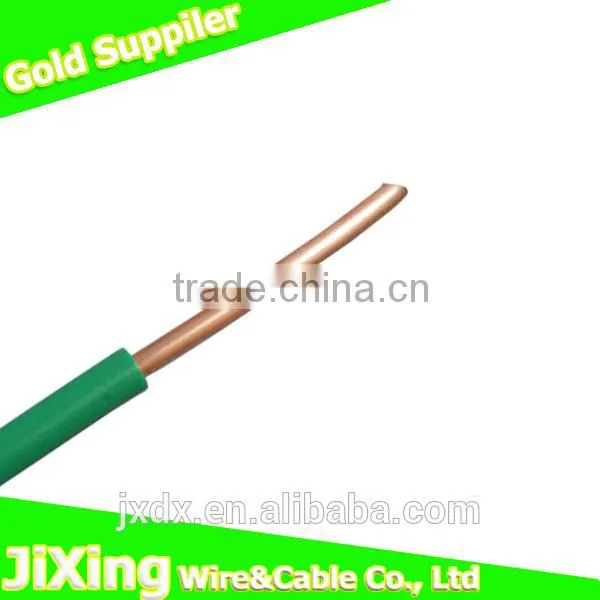

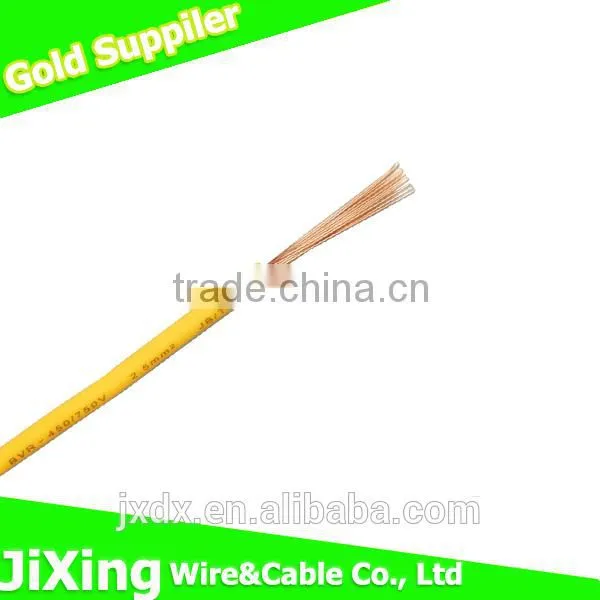

High Quality Multi Core Copper Electric Wire 4mm For Building
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model |
Name |
RV |
Copper Core PVC Insulation Flexible Wire |
RVB |
Copper Core PVC Insulation Flat Flexible Wire |
RVS |
Copper Core PVC Insulation Twisted Flexible Wire |
RVV |
Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB |
Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 |
Copper Core Heat-resistak Losc PVC Flexible Wire |
4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
0.3 |
16/0.15 |
2.3 |
6.4 |
0.4 |
23/0.15 |
2.5 |
8.1 |
0.5 |
16/0.2 |
2.6 |
9.1 |
0.75 |
24/0.2 |
2.8 |
12.2 |
1.0 |
32/0.2 |
3.0 |
15.1 |
RV 450/750V
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
1.5 |
30/0.25 |
3.5 |
21.4 |
2.5 |
49/0.25 |
4.2 |
24.5 |
4 |
56/0.20 |
4.8 |
51.8 |
6 |
84/0.30 |
6.4 |
74.1 |
10 |
84/0.30 |
8.0 |
12.4 |
Other sizes can also be produced as you required.

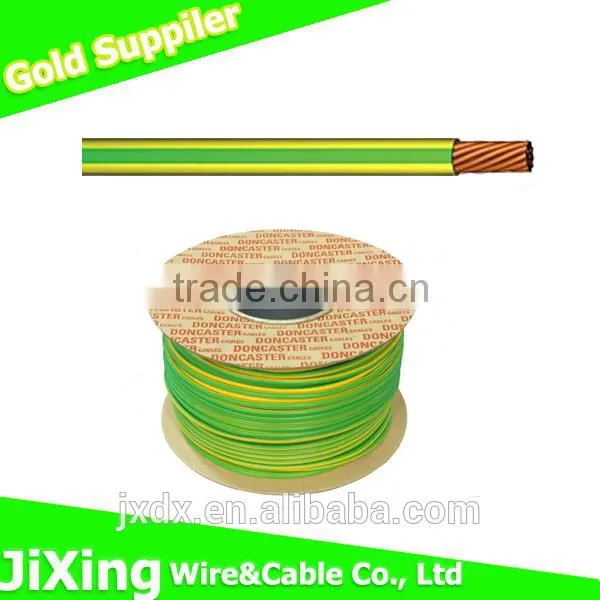

Our Packing:
Our factory:
shenzhen jixing wire&cable co.,ltd .is a specializing in the production of wire and cable, our products : 0.6/1kv plastic insulation,cross-linked insulated power cable,LSZH cables environmentally friendly,flame retardant cables,fire resistant cables,aluminum cable,branch cable,B series(rated voltage 450/750 and bellow) plastic wire and cable,XLPE wires and specifications. Company has the most advanced testing equipment and production equipement,quality has reached the national and industry standards.
Our customers:
Certification:
Jixing cables:
Shenzhen Jixing Electric Cable & Wire Co., Ltd welcome you!
whatsapp: 18123855747
wechat: 15692553467
contact person: Tina
contact number: 18123855747
