Home > Products > flat wire /cable > BVVB Stranded Pvc Core Wire 300/500V

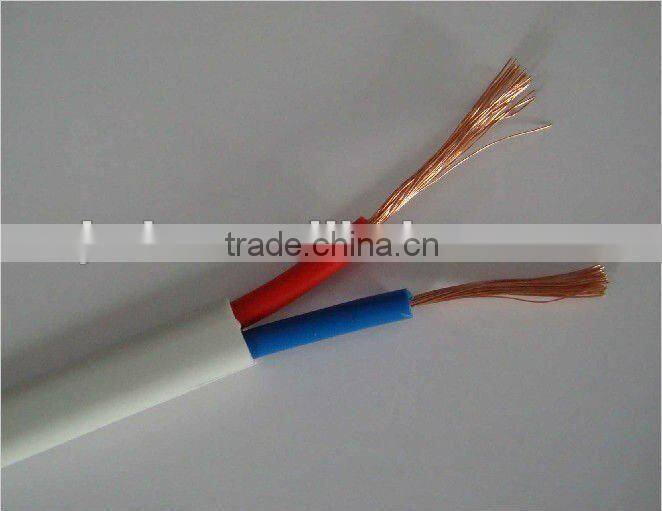

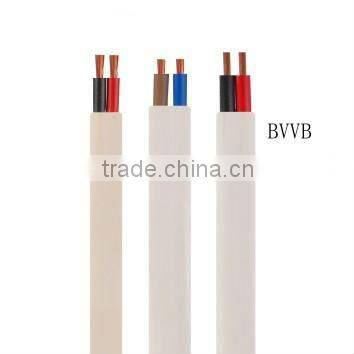

BVVB Stranded Pvc Core Wire 300/500V
- Shenzhen
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YONGKUNTAI TIANXIANG | |
| Model Number | BVVB | Insulation Material | PVC | |
| Type | Low Voltage | Application | Other, Household Appliances | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Specifications
1)Two core flat cable2)PVC insulation&sheath
3)Stranded&flexible copper
4)Low price good quality
5)China BVVB series

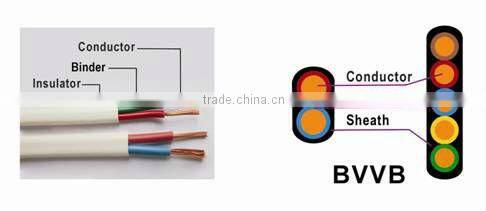

BVVB (flexible) Structure
BVVB (flexible) Regular Specifications
Name | Usage | Specification |
Copper conductor PVC insulated PVC Sheathed rigid flat cable (electrical wire) | Power cord for house appliances | BVVB 2×1mm² |
BVVB 2×1.5mm² | ||
BVVB 2×2.5mm² | ||
BVVB 2×4mm² | ||
BVVB 2×6mm² |
*Kindly note that also we can make cables and wires according to your required specification.
Packing
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Why choose us?
1)Rated Voltage: 300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey,cream,milk available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
All models:
BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Our factory
*Kindly note that also we can make cables according to your requirements.
