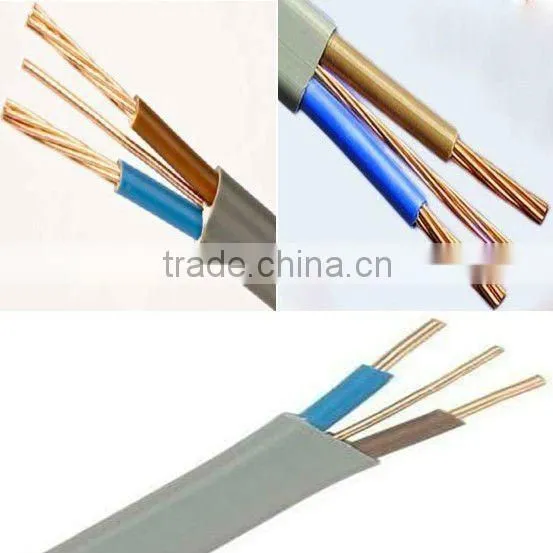

Help CenterBVVB+E Two Core and Earth Cable 300/500V
Related Products
-
450/750V 3 Core 3* 1.5mm 3*2.5mm YDYP WireUS$ 0.1 - 1MOQ: 2000 Meters -
Thermoplastic-sheathed UL719 Nm-b Romex Cable for BuildingUS$ 0.1 - 1MOQ: 5000 Meters
-
High Quality Flat Power Cable All Electrical MaterialsUS$ 0.7 - 300MOQ: 500 Meters
-
High Quality Flat Power Cable Core 2 WhiteUS$ 0.7 - 300MOQ: 500 Meters
-
300/500V BVVB 3 Core Flat Cable With Pvc Insulated&sheathedUS$ 0.7 - 300MOQ: 500 Meters
About us
Our factory
Raw material:
Testing equipment:
We provide an extensive range of PVC single core cable and PVC multicore cablewith copper ,aluminium or copper clad aluminium conductor for lighting and construction. Our cables are available in the following specifications, material of construction and range:
Voltage and Temperature:
- 450/750V,300/500V,300/300V
- Max.Working Temperature:70°C
Material Of Construction:
- Conductor-Aluminum/Copper/Copper Clad Aluminium
- Type-Solid/Stranded/Flexible/Extra Flexible
- Insulation-PVC
- Sheath-PVC
Range:
- BV0.75~ BV 300mm²
- BVR0.75~ BVR 400mm²
- BVV0.75~ BVV 630mm²
- BVVB2*0. 5~ BVVB 2*6mm²
- RV0.75~ RV 240mm²
- RVV2*0. 5~ RVV 2*10mm²
- RVV3*0. 5~ RVV 3*16mm²
- RVV3*0. 5+1*0. 5~ RVV 3*16+1*16mm²
- RVV3*0. 5+2*0. 5~ RVV 3*16+2*16mm²
- RVV6*0.75~ RVV 24*2.5mm²
- KVV3*1~ KVV 8*6mm²
- KVV10*1~ KVV 37*2.5mm²
- BLV10~300mm²
- BLVV10~300mm²
- RVS 2*23Cores~ RVS 2*64Cores
- RVB10~ RVB 25mm²
Packing--(size from RVV 3×0.5mm² to RVV 3×2.5mm² )
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Packing--(size above RVV 3×4mm²)
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
All models:
BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV
|
Code Designation by IEC |
Code Designation by GB |
Rated Voltage |
Name |
Application |
Rated Temperature |
60227 IEC 01 |
BV |
300/500V |
Copper conductor PVC insulated rigid cable (electrical wire) |
Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 |
BV |
450/750V |
|||
|
BLV |
450/750V |
Aluminum conductor PVC insulated rigid cable (electrical wire) |
||
|
BVR |
450/750V |
Copper conductor PVC insulated semi-flexible cable (electrical wire) |
Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 |
BVV |
300/500V |
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
|
|
BLVV |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
||
|
BVVB |
300/500V
|
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
|
BLVVB |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
60227 IEC 02 |
RV |
450/750V
|
Copper conductor PVC insulated flexible connector cable (electrical wire) |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 |
RV |
300/500V |
|||
60227 IEC 42 |
RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
||
|
RVS |
300/300V
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227 IEC 52
|
RVV |
300/300V
|
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
60227 IEC 53 |
RVV |
300/500V |
Black sheath
Orange sheath
Why choose us?
1)Rated Voltage: 300/300V,300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
Our factory
Certifications:
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
