300/500V / BVV16MM2 Double PVC Hard Cable for Household Appliance Wire

FOB Price

US$ 0.1 - 99 / Meter

5000 Meters(Min. Order)

Port Shenzhen
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yongkuntai
Model Number	BVV16MM2	Insulation Material	PVC
Type	Medium Voltage	Application	Construction
Conductor Material	Copper	Jacket	PVC

Product Description

Specifications

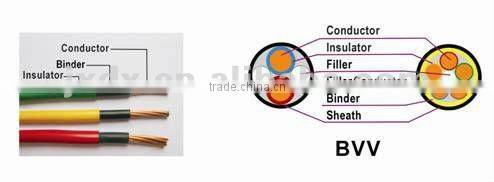

BVV SERIES ELECTRICAL CABLE
1- Rate Voltage: 300/500V
2-Conductor: Strand
3- Insulation/ Jacket :PVC
4- Round / hard wire

Standard

The cable is manufactured according to GB5023-2008 and JB8734-1998 national

standard or international standard of 60227IEC.

Application

The cables can be applied to the copper(aluminum)-core cables in the rated A/C

voltage ofU/U450/750V and the below power, lighting, daily electric appliances,

apparatus and telecommunication equipments.

Operation characteristics

1-U0/U is 450/750V and 300/500V ;

2-The allowed long-term working temperature of wire should not exceed 70°C,

The cable (wire) shall be installed at temperature not lower than 0°C;

3-The bending radius shall not be less than 4D of the cable overall diameter it is less

25mm; the bending radius shall not be less than 6D of cable overall diameter when

it is more than 25mm.

Manufacture length

1-The coil length of cable (wire) shall be 100M, filled reel length shall be more than

1000M;

2-The short cable are permitted with a length not less than 10m for each and their

quantity shall not exceed 10% of the total supply length, and short length quantity

of every piece not more than 2pcs;

3-Any supply length is permitted based on the agreement with buyer.

The error of metering shall not exceed ±0.5%.

BVV Series
Model No.	Nominal cross-sectional area (mm²)	No.of wires (mm)	Insulation Material	Conductor Material	Sheath	Voltage	Colour	Paking
BVV10mm²	10mm²	7	PVC	Copper	PVC	300/500V	black,green,red and so on,as your requirement	100M/ Roll or as your requiremen
BVV16mm²	16mm²	7	PVC	Copper	PVC	300/500V
BVV25mm²	25mm²	7	PVC	Copper	PVC	300/500V
BVV35mm²	35mm²	7	PVC	Copper	PVC	300/500V
BVV50mm²	50mm²	19	PVC	Copper	PVC	300/500V
BVV70mm²	70mm²	19	PVC	Copper	PVC	300/500V
BVV95mm²	95mm²	19	PVC	Copper	PVC	300/500V
BVV120mm²	120mm²	37	PVC	Copper	PVC	300/500V
BVV150mm²	150mm²	37	PVC	Copper	PVC	300/500V
BVV185mm²	185mm²	37	PVC	Copper	PVC	300/500V

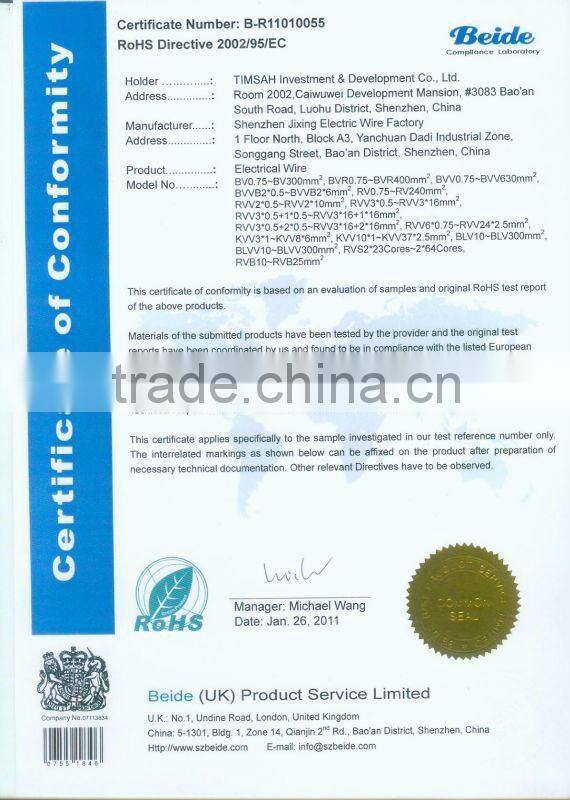

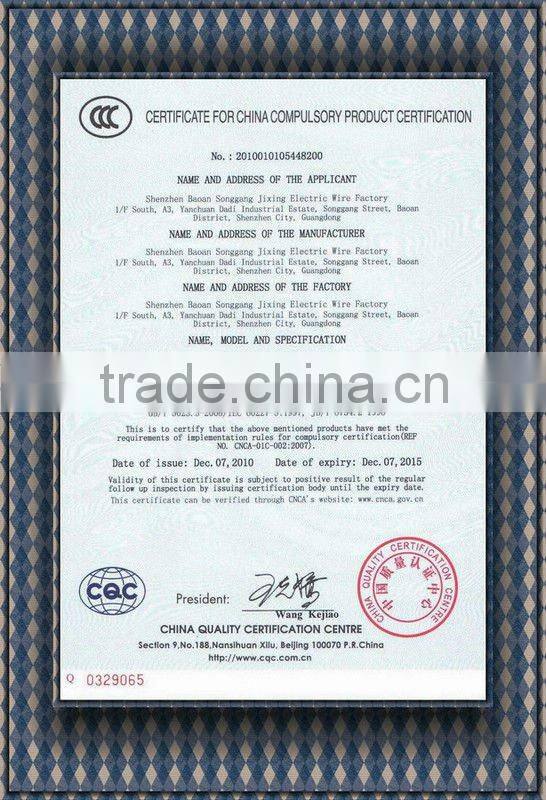

Certification:

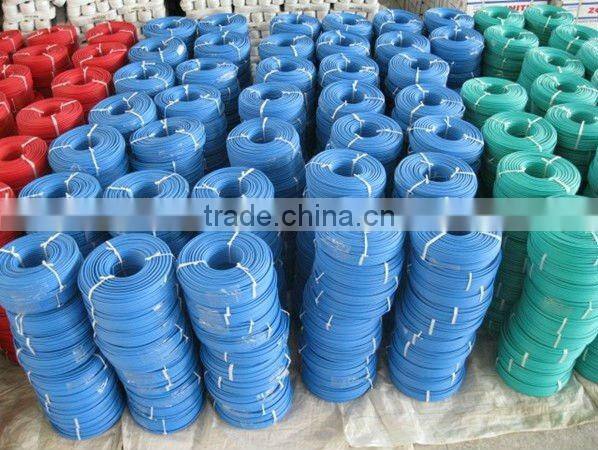

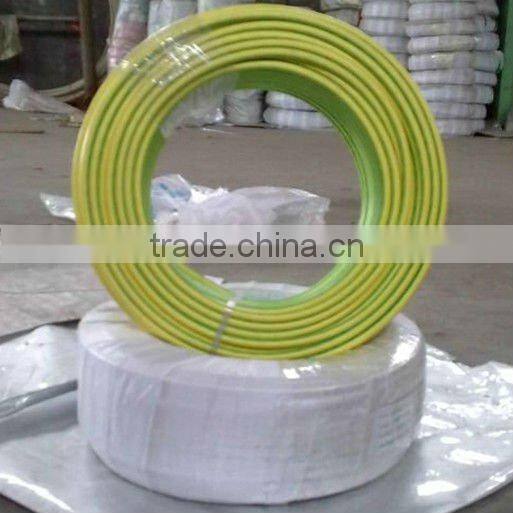

Packing Picture:
