KVV Auto Controlling Power Cable Distribution PVC Insulation Control Cable

FOB Price

US$ 0.75 - 400 / Meter

500 Meters(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yongkuntai
Model Number	KVV	Type	Insulated
Application	Other, control	Conductor Material	Copper
Conductor Type	Solid	Insulation Material	PVC

Product Description

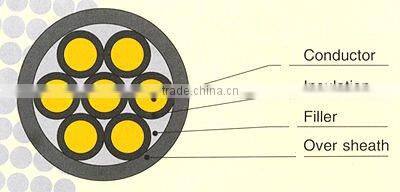

KVV auto controlling power cable distribution PVC insulation control cable

Model:KVV control cable

1.Standard

GB/T 9330-2008

2.Application

The product is suitable for the situation of control the return circuit and protect the line and so on which the AC rated voltage is Uο/U450/750V or lower that.

3.Operational performance

(1).Rated voltage Uο/U450/750V

(2).The max permissible conductor operating for long term service shall be :PVC insulation is 70°C,XLPE insulation is 90°C

(3).The cable laid tempretrue should not lower 0 °C ,the recommend permissible bending radius is:

—Cable without armour layer should not less than 6times of cable diameter

—Cable armored or copper tape screen construction should not less than 12 times of cable diameter

—The flexible cable with screen construction should not less than 6 times of cable diameter

Specification:

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75--2.5	2--16	Permanent installation indoors,in cable ditches or pipes
		4, 6	2--14
		10	2--10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75--2.5	2--61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4, 6	2--14
		10	2--10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75--2.5	4--10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4, 6	7--61
		10	4--10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75--2.5	7--61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4, 6	4--14
		10	4--14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5,2.5	4--61	Installation indoors where flexibility and movability are required

Other sizes can also be produced as you required.
