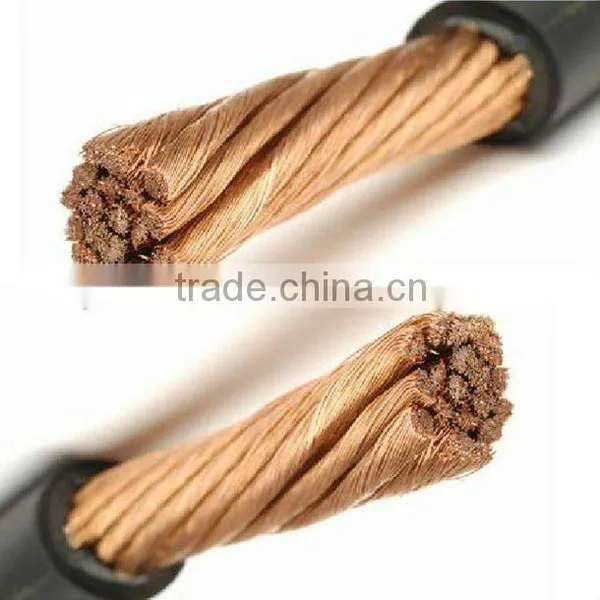

China CCC pvc electric wire and cable 120mm with extra flexible copper
- 30000000 Meter / Meters per Month
- Shenzhen
- T/T
-
NF24Q100-01 Carlisle Tensolite Aviation cables
-
GSC-13-84943-07 GORE Aviation fiber optic transmission cable
-
RCN8687 GORE Advantage products RCN8687 8989 9053
-
TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
-
Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
-
Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | YONGKUNTAI TIANXIANG | Model Number: | RV |
| Type: | Insulated | Application: | Other, suitable for power and lighting circuits and building wiring | Conductor Material: | Copper |
| Conductor Type: | Other, Extra Flexible and Stranded | Insulation Material: | Other, PVC (Polyvinyl Chloride) |
Product Description
Specifications
1.PVC single core cable2.Extra flexible cable
3.Low price good quality
4.Professional cable manufacturer
5.China RV series
RV---regular specification
Name | Usage | Specification |
300/500V or 450/750V Copper conductor PVC insulated flexible connector cable (electrical wire)
| Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required
| RV 0.3mm² |
RV 0.5mm² | ||
RV 0.75mm² | ||
RV 1mm² | ||
RV 1.5mm² | ||
RV 2.5mm² | ||
RV 4mm² | ||
RV 6mm² | ||
RV 10mm² | ||
RV 16mm² | ||
RV 25mm² | ||
RV 35mm² | ||
RV 50mm² | ||
RV 70mm² |
RV 1mm ² (32pcs of copper wires)
RV 1.5mm ² (20 pcs of copper wires)
RV 2.5mm ² (80 pcs of copper wires)
RV 25mm ² (280 pcs of copper wires)
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Packing--(size from RV0.3mm² to RV16mm² )
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Packing--(size above RV25mm² )
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
Why choose us?
1)Rated Voltage: 300/500V,450/750V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:non-sheath
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
