Specifications

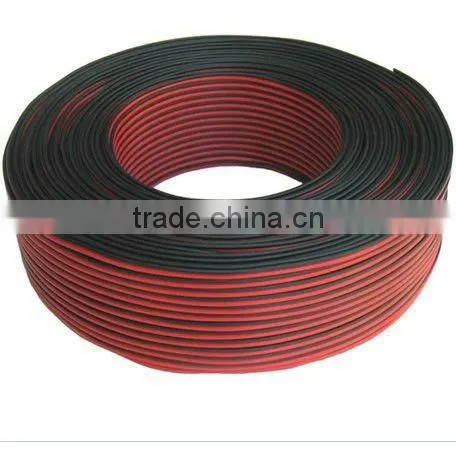

1)PVC flat cable2)Pure copper speaker cable
3)Low price good quality
4)Professional cable manufacturer
5)China RVB series

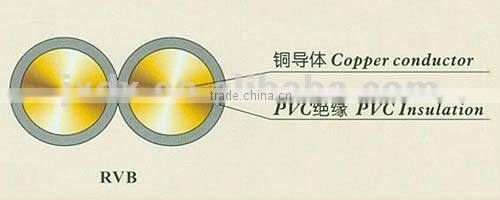

RVB Structure
RVB size
Specification |
RVB 2×0.5mm² |
RVB 2×0.75mm² |
RVB 2×1mm² |
RVB 2×1.5mm² |
RVB 2×2.5mm² |
RVB 2×4mm² |
RVB 2×6mm² |
RVB 2×10mm² |
*Kindly note that also we can make cables and wires according to your required specification.
Packing Picture
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Why choose us?
1)Rated Voltage: 300/300V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insulation:PVC (polyvinyl chloride) Color:red and black
8)Certification: CCC,CE,RoHS
9)20 years manufacturing experience
10)Specialized in electric/electrical appliances,lighting,construction,home applicances
11)Customer wire cable
12)Stock available, free sample
13)Small profits, quick returns
14)High quality and competitive price
15)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
