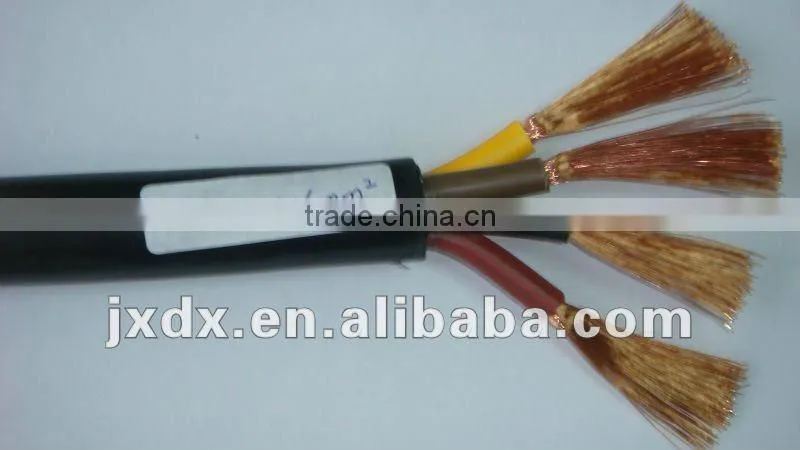

Help CenterPvc Core Wire 3+1 Core Cable 300/500V
Related Products
-
China High Quality Pvc Insulated Earthing Copper CableUS$ 0.1 - 10MOQ: 1000 Meters -
Copper Electrical 35mm Wire Stranded WireUS$ 0.1 - 10MOQ: 10000 Meters
-
3 Core Pvc Insulation&sheath Wires & CablesUS$ 0.137 - 6.865MOQ: 5000 Meters
-
300/500V 3 Core Flexible Power Copper Cable With PVC Insulation&sheathUS$ 0.137 - 6.865MOQ: 5000 Meters
-
PVC Insulation&sheath 3 Core Power Cable 6mm With Flexible Copper for Home Appliances 300/500VUS$ 0.137 - 6.865MOQ: 5000 Meters
Specifications
1)For household appliances2)Low price good quality
3)High pure copper
4)PVC insulation&jacket
5)China RVV 3+1 core cable
Stock--RVV 3+1 core
We have the following sizes in stock,small quantity is welcome.
Specification |
Usage |
RVV 3×1.5+1×1mm² |
For lighting as well as light duty appliances
|
RVV 3×2.5+1×1.5mm² | |
RVV 3×4+1×2.5mm² |
1.For power transfer from electrical pole to house mains 2.To connect heavy electrical appliances like stoves, conditionerand heave machinery. |
RVV 3×6+1×4mm² | |
RVV 3×10+1×6mm² | |
RVV 3×16+1×10mm² |
*Kindly note that also we can make cables and wires according to your required specification.
Packing picture
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
All models:
BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV
|
Code Designation by IEC |
Code Designation by GB |
Rated Voltage |
Name |
Application |
Rated Temperature |
60227 IEC 01 |
BV |
300/500V |
Copper conductor PVC insulated rigid cable (electrical wire) |
Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 |
BV |
450/750V |
|||
|
BLV |
450/750V |
Aluminum conductor PVC insulated rigid cable (electrical wire) |
||
|
BVR |
450/750V |
Copper conductor PVC insulated semi-flexible cable (electrical wire) |
Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 |
BVV |
300/500V |
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
|
|
BLVV |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
||
|
BVVB |
300/500V
|
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
|
BLVVB |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
60227 IEC 02 |
RV |
450/750V
|
Copper conductor PVC insulated flexible connector cable (electrical wire) |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 |
RV |
300/500V |
|||
60227 IEC 42 |
RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
||
|
RVS |
300/300V
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227 IEC 52
|
RVV |
300/300V
|
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
60227 IEC 53 |
RVV |
300/500V |
Why choose us?
1)Rated Voltage: 300/300V,300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
