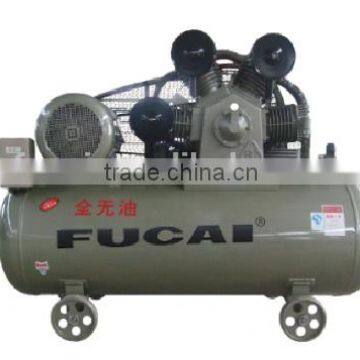

CE approved China classic Model FC-3.2/12 (22 KW 12Bar 3.2m3/min 500L tank ) piston compressor oil free

Technical Data:

CE approved China classic Model FC-3.2/12 oil free piston air comprssor

Motor (KW/HP):  22/30

Displacement:        3200 (L/min),  3.2 M3/min ,  113 cfm


Discharge Pressure   (bar/psi)  :    12/174

Cylinder (diameter* piece):   130*3  130*1 mm

Rotate speed of compressor (rpm):     730

Tank capacity (L):            500

Overall dimension (Lx Wx H cm):         183*77*139

Net weight (Kg):   545

22kw 30hp 174 Psi Piston Air Compressor

1. High efficiency cooling

2. Longer usage life

3. Big volume air tank

4. Easy operation

5. High performance

6. Oil-free, belt driven, piston type

7.Conpetitive Price with First Class Quality

8. It manufactures clean oil-free compressed air, and widely used in medical, chemical, food, electronic, spraying industry and other places which required compressed air

9. Using the enclosed crankcase bearings to create a green environment

10. Using high strength and high temperature, wear -resistant bearings to make its long using life.

11. Using special wear-resistant, high temperature of piston rings to extend the replacement of ring more than 8000 hours.

12. Reliable, easily installed, economical, portable, easy handle, Simple structure, high efficiency and cost-effective.

Guarantee and after-sales service:

One year guarantee for the whole machine except maintenance parts

24 hours technical support by mail or call

Contract Manufacturing:

OEM Service Offered

Other electricity supply can customize,such as 110V/1Phase/60hz,220V/3Phase/60Hz,415V/3Phase/50Hz etc.

Different size tank can also make to order .

We’re manufacturer !
