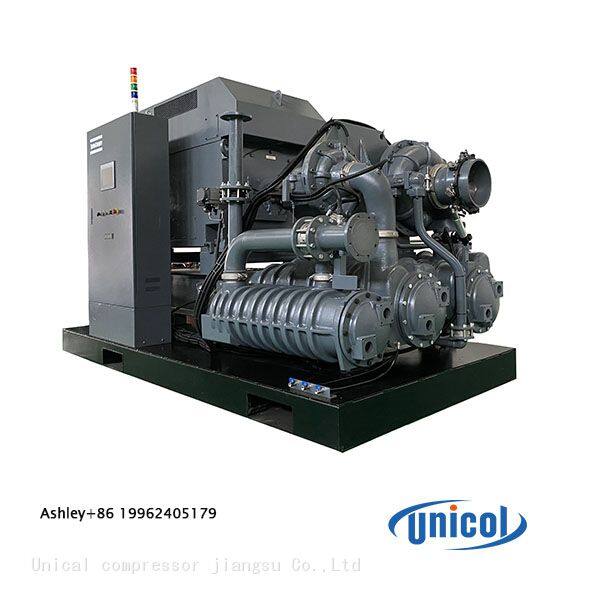

TC1500-8 Centrifugal Compressor 150m3/min-8ba

Unicol Compressor Manufacturing Co., LTD., headquartered in Beijing Economic and Technological Development Zone, China, has its own research and development center and a China production plant in Yancheng, Jiangsu province.

In 2009, the company began to focus on manufacturing centrifugal compressor, so far has more than 15 years of experience in centrifugal compressor design and manufacturing, for the most stable compressor in the industry. Now, Zhanjiang Baosteel, Liugang, Angang and other centrifugal air compressor products in China's steel industry stable operation.

The company's TC series centrifugal compressor unit adopts the most cutting-edge technology in the industry, and the product design meets the unique market requirements in China, more suitable for the characteristics of local working conditions.

1.2 TC1500-8 series centrifugal compressor unit provides compressed air and the driver is equipped with efficient asynchronous motor.

1.3 The compressor unit is arranged as a single layer, and the compressor, motor, oil station, intercooler and other components are arranged on the same steel integral shell installation seat.

1.4 The compressor and the motor share one oil supply system.

1.5 The compressor adopts the inlet guide leaf regulating device for flow adjustment. The inlet guide leaf, vent regulating valve (pneumatic), oil mist filter and auxiliary oil pump are all electric. Instrument gas is not needed during the operation of the whole machine, which can save the installation cost for users.

1.6 Compressor, motor and its electric control and instrument control are indoor indoors.

Main design parameters of the compressor num ber item Unit Rated running point parameters 1． Compressor model TC1500-8 2． Compressed medium air 3． Compressed series three-level 4． set number set 1 5． atmospheric pressure BarA 0.98 6． Design intake temperature ℃ 35 7． Design relative humidity % 60 8． discharge pressure MPa(G) 0.8 9． Design exhaust flow Im³/min 150 10． Rated power of the main motor KW 850 11． Design shaft power kW 800 12． Exhaust temperature (including rear cooling) ℃ ≤ 45 13． Cooling water inlet temperature ≤℃ ≤ 32 14． Cooling water supply pressure Mpa 0. 2-0.5 15． consumption of cooling-water m³/h 69 16． noise dB(A) ≤ 855 / 22 num ber item Unit Rated running point parameters 17． Exhaust oil content 100%oil free， 18． adjustable range % 70～100 19． P co o n w d e i r tio su n p s ply high-handed low pressure frequency 6 kV 380V 50Hz 20． Total weight of the compressor unit Kg 15000 21． External size LWH mm 4200×1850×2317
