UNWX-3B Oil Free Scroll Compressor
US$ 2000 - 2400
/ Set
1 Set(Min. Order)
- shanghai
- T/T
- 20 days
You May Like
Product Details
| Brand Name | UNICOL | Place of Origin | China | |
| Model Number | UNWX-3B | Warranty | 2 years | |
| Weight | 243kg | Dimension(L*W*H) | 1450*1100*1300mm | |
| Condition | New |

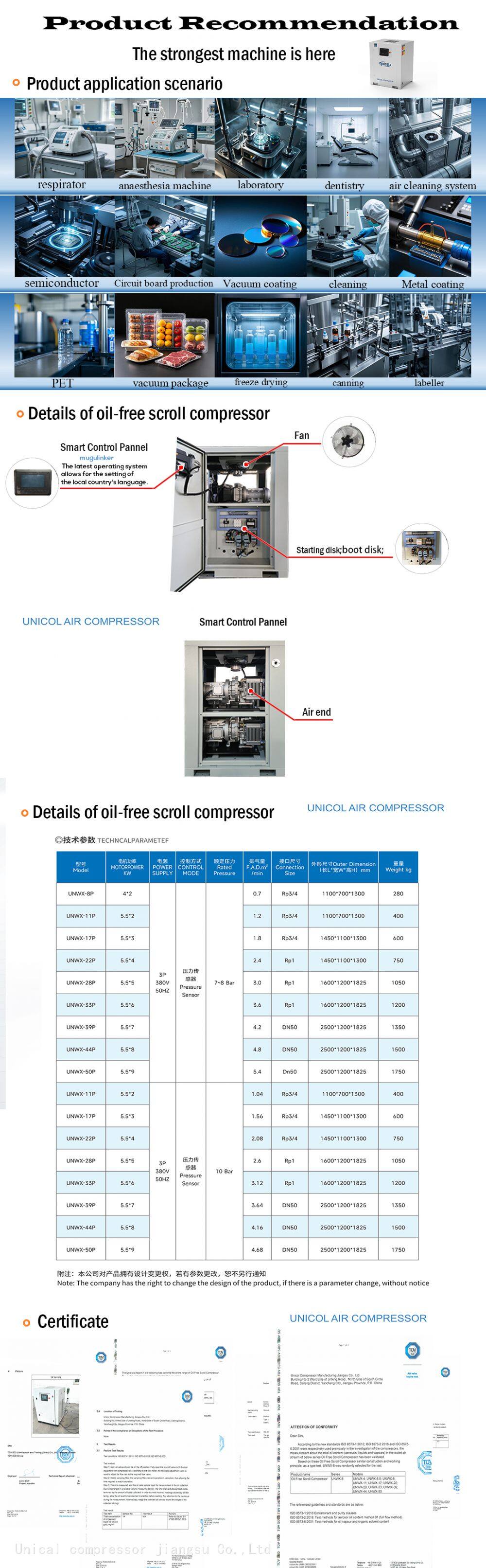

Product Description
Product introduction video
| Model | UNWX-3B | |||||||
| manufacturer | unicol | |||||||
| volume flow | m3/min | 0.24 | ||||||
| discharge pressure | Mpa | 0.8 | ||||||
| Rated Power | KW | 2.2 | ||||||
| Driving Method | Belt | |||||||
| power | V/Hz/Ph | 380/50/3 | ||||||
| Start | direct starting | |||||||
| Maximum ambient temperature | °C | ≤40 | ||||||
| Cooling mode | Wind cold | |||||||
| discharge temperature | °C | Ambient temperature of + 20 | ||||||
| Motor Security Level | IP54 | |||||||
| Electrical insulation grade | F | |||||||
| The exhaust outlet | Top/side air discharge | |||||||
| Exhaust interface | DN | Rp3/4 | ||||||
| Dimensions size | mm | 1100*730*1450 | ||||||
| Net Weight | Kg | 300 | ||||||
| Tank volume | L | 120 | ||||||
| mode of operation | auto | |||||||
