Helium leak detectors

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port SHANGHAI

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	KYKY
Model Number	ZQJ		Usage	Other

Product Description

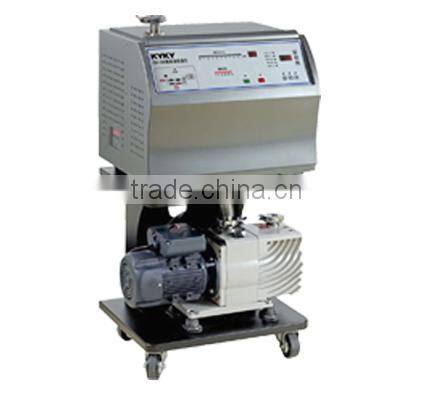

Helium leak detectors

Product Description

Helium Mass SpectrometerLeakDetector refers to as a diagram with helium or hydrogen gas leak, a gas analyzer helium mass spectrometer leak. The low noise floor of helium, small molecular weight and viscosity coefficient, and therefore easy to spread easily through the drain hole; In addition, the inert gas helium-based, non-corrosive, it is commonly used as shown helium gas leak. This gas will then have to spray the gas analyzer (adjusted only for helium from the operating state of the reaction) was seized container, if the container tainted holes, namely the analyzer to react, so we can see where the leak and drain volume size.

Specification:

model	ZQJ-542	ZQJ-530	ZQJ-530G
Minimum leak rate(Pa·M3/S)	≤5*10-12	≤5*10-11	≤5*10-11
Leak measurement range(Pa·M3/S)	5*10-12---1	210-11---110-5	210-11---110-5
Maximum pressure leak port(Pa)	1000	20	20
Response time(S)	≤1	≤3	≤3
Start Time(min)	≤2	≤8	≤8
Power
working environment
Dimensions(mm)	541410440	5005001000	6504501000
weight(kg)	65	92	95

Application:

Used in aerospace, scientific research, power industry, large-scale production line.

Leak detection principle:

Helium leak vacuum leak detection technology is indispensable to a field of technology, due to the high efficiency of leak detection, simple and easy to operate, the instrument responsive, high precision, easy to interference by other gases, has been in the resistance furnace leak detection widely used. Helium leak detectors are based on the principle of mass spectrometry, as shown with helium leak into the system leak testing equipment. By mass spectrometry chamber and exhaust systems and electrical parts from the ion source, analyzer, collector, cold cathode gauges and other components of. MS room filament emitted electrons oscillate back and forth in the room, and the indoor gas leak through the hole and into the interior of the helium collision ionizing positive ions, helium ions into the magnetic field in the accelerating electric field, Since the Lorentz force generated by the deflection, a circular arc-shaped track, can change the accelerating voltage of ions of different mass through a magnetic field and receiving slits reach the receiving electrode is detected. Helium spray method, a method is sucked helium mass spectrometer leak in the helium leak resistance furnace in the two most commonly used methods.

Packaging & Shipping

Packaging Details: Export Standard Packaging.

Delivery Detail: 60 days after receipt of payment.

Our Services

Before sales:

Our engineers are ready to provide custom made design and recommendation for each customer's case.

We provide professional consulting service for leak detector.

We also have set up good relations with the suppliers of relative consumables and parts for your needs.

After-sales:

We will send the engineers to your place for installation, fine tune and for operation training,if you need.

We will provide troubleshooting service all lifetime.

The warranty period of the machine is 1 year.

We will contact you to ask for about the conditions of the machine in periodically.

We also provide the service for further extension on your existing machine.

Inquiry Guides

Dear Customer: :-)

Good day.

When you are going to send us a inquiry, in order to recommend the most appropriate machine for your project, please answer the following questions in your letter:

1.What types(model) of leak detector do you need.

2. What is the possible Minimum leak rate according to your request.

3. What is the pressure of products or any details about the leak detector.

The answers to the above question will help us a lot on quotation or do the recommendation.

Welcome to inquiry our machines.
