Home > Products > IP PTZ Camera > 1.3Mp HD Cost-effective IR PTZ Dome IP Camera
1.3Mp HD Cost-effective IR PTZ Dome IP Camera
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Linovision or Customize | |
| Model Number | PTZ-HD6C120T | Type | Other, IP Camera, 1.3M PTZ Dome Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
Model
PTZ-HD6C120T: 1.3Mp HD Cost-effective IR PTZ Dome IP Camera , 25/30fps @1.3M(1280x 960) & 720P resolution, 4.7mm~94mm(20x Optical zoom), DWDR, IP66 ,IR Distance up to 100m;
Feature
>20x optical zoom
>Support Triple-streams encoding
>Max. 25/30fps @1.3M(1280x 960) & 720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus

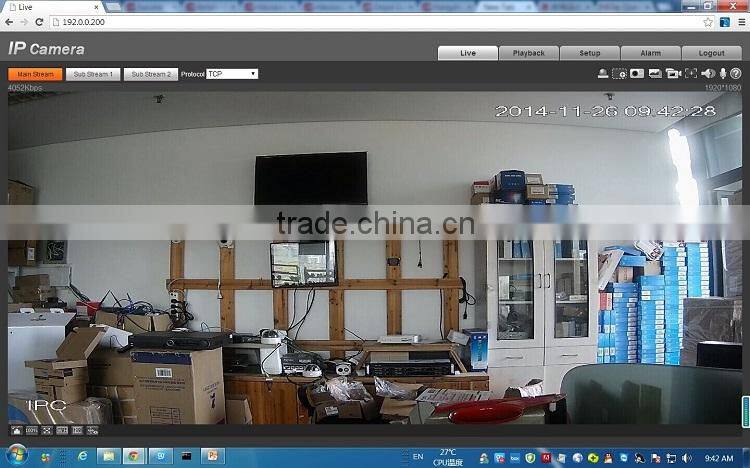

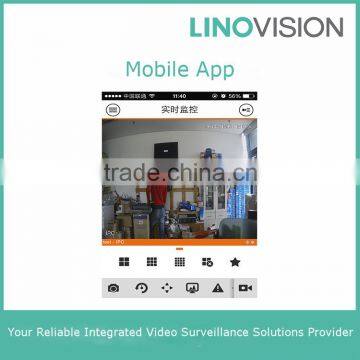

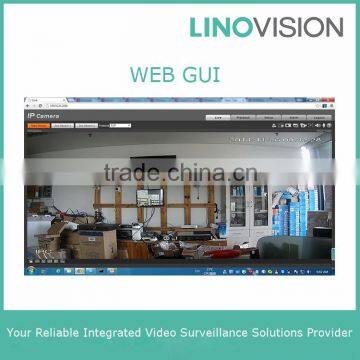

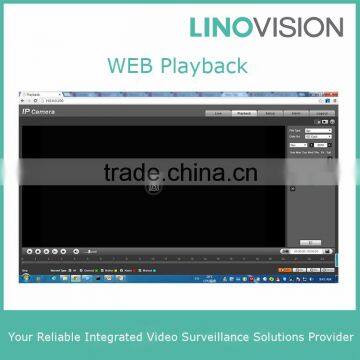

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m
Specification
Model | PTZ-HD6C120T | |
Camera | ||
Image Sensor | 1/3” Exmor CMOS | |
Effective Pixels | 1280(H) x 960(V) | |
Scanning System | Progressive | |
Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
Min. Illumination | Color: 0.05Lux @F1.4; B/W: 0.005Lux @F1.4, 0Lux (IR on) | |
S/N Ratio | More than 50dB | |
Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Privacy Masking | Up to 24 areas | |
Digital Zoom | 16x | |
Lens | ||
Focal Length | 4.7mm~94mm(20x Optical zoom) | |
Max Aperture | F1.4 ~ F2.6 | |
Focus Control | Auto / Manual | |
Angle of View | H: 54.1° ~ 3.2° | |
Close Focus Distance | 100mm~ 1000mm | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
Preset | 300 | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Time Task | Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time | |
Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
IR Distance | 100 Meters (2 near IR LED+ 4 far IR LED) | |
Video | ||
Compression | H.264/ MJPEG | |
Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576/ 704×480) /CIF | |
Frame Rate | Main Stream | 1.3M/ 720P (1 ~ 25/30fps) |
Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps | |
Audio | ||
Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
Interface | 1/1 channel In/Out | |
Intelligent Function | ||
IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
Face Detection | Support | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
Compatibility | ONVIF PSIA CGI | |
Max. User Access | 20 users | |

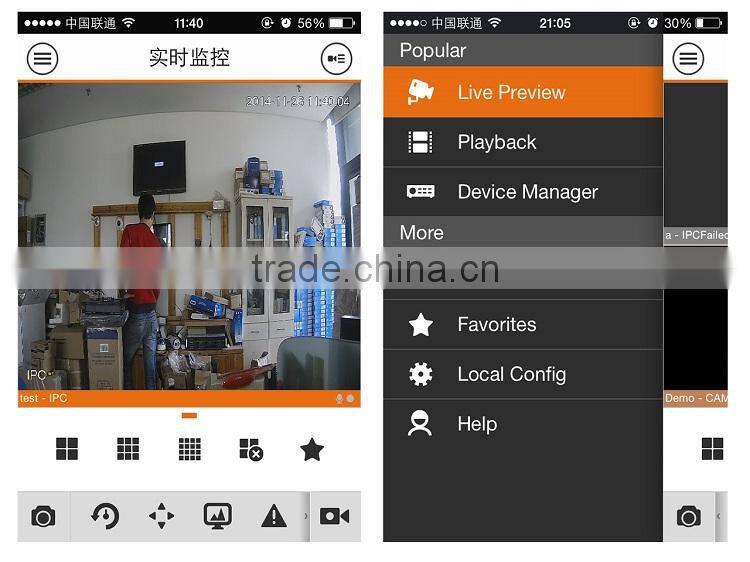

Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD,Max 128GB | |
RS485 | 1 | |
Alarm | 2/1 channel In/Out | |
General | ||
Power Supply | AC 24V/3A (±10%) | |
Power Consumption | 10.5W, 26W (IR on, Heater on) | |
Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
Ingress Protection | IP66 | |
Dimensions | Φ204.7(mm) x 359.9(mm) | |
Weight | 5kg | |

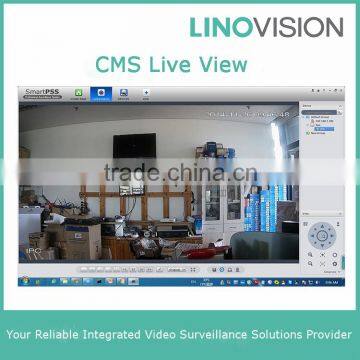

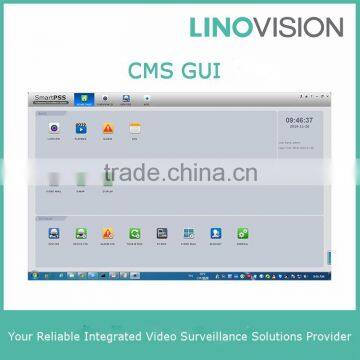

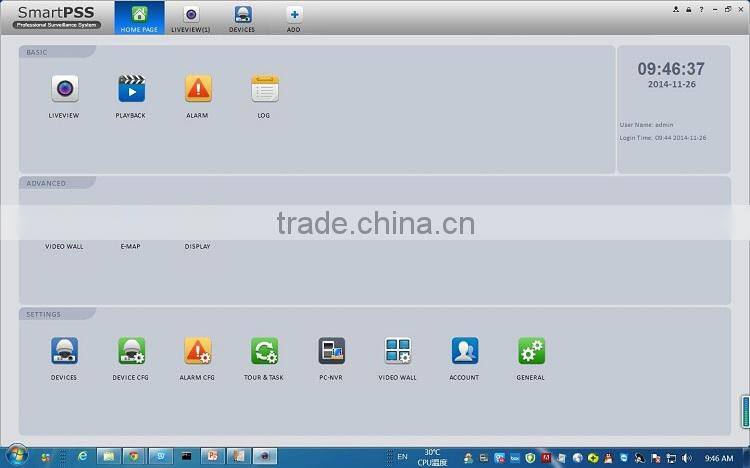

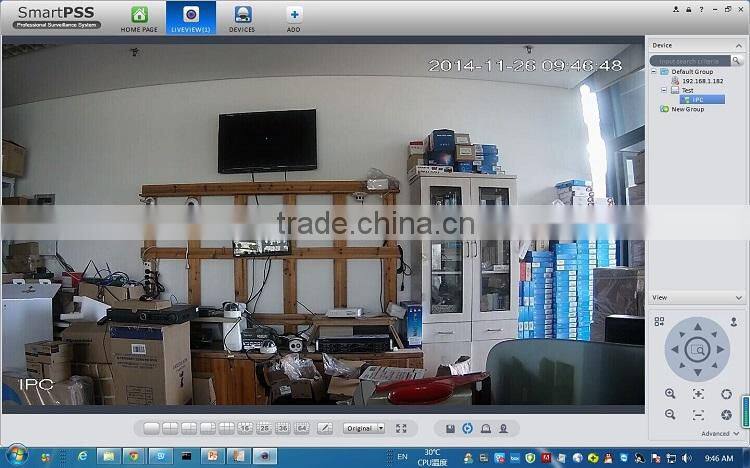

CMS



Combining with advanced and unique hardware, our strong technical team is capable of integrating and customizing developments as per clients’ specific needs.There are tens of thousands of successful deployment in more than 80 countries.Benefiting from the competitive solution and excellent technical support of Linovision, many customers have been expanding their business quickly for more than 5 years.
All of our customers think highly of our professional technical service and have faith in our follow-up cooperation.
Now, we are looking forward to cooperating with you to make a bright future together!
Our Location

Q1: What can we purchase from your company?
A: Thanks to this 9 years experience, We are proud of supplying a complete line of products, including IP cameras, NVRs, IP speed domes, HDCVI products, POE switch, transmissions, video wall, Intercom, Converters, etc.
Further more,our core products cover value, professional and even very high-end market.
We can even make purchase nationwide as your solution required.That would be our pleasure to make sure that you can get an easy and cozy purchasing experience from us.
Q2: Are your products reliable? What post-sale service do you offer?
A: Working together with world leading manufacturers, we can assure you that all of our products are of top quality and you can enjoy two years hardware warranty ,lifetime technical support(free software update included).
Besides,our products are compatible with third-party software platform and can meet many necessary standards required by world market, such as FCC, CE, RoHS.
Q3: What does the one-stop service mean? What can you do for us?
A: Once you choose us, you can enjoy a wholehearted service, including make laser etching logo printing, OEM label or even help your qualified supplier make payment, combine shipping,etc. We are very glad to be your reliable one-stop qualified source partner in China.
Q4: Is there anything special for VIP customers?
A: For our valued customers, we have a dedicated and high efficient team to process order, arrange manufacturing, fast delivery and prompt technical support. This is our unique advantage you may not experience from other suppliers.
