2MP 20x Optical Zoom IR Outdoor PTZ IP Camera

Model

PTZ-HD6972

Camera

Image Sensor

1/2.8” Exmor CMOS

Effective Pixels

1920(H) x 1080(V)

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux: F1.4; B/W: 0.005Lux: F1.4

S/N Ratio

More than 50dB

Video Output

BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

4.7mm~94mm(20x Optical zoom)

Max Aperture

F1.4 ~ F2.6

Focus Control

Auto / Manual

Angle of View

H: 54.1° ~ 3.2°

Close Focus Distance

100mm~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 240° /s; Tilt: 200° /s

Preset

80(DH-SD), 255(Pelco-P/D)

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

IR Distance

100m (2 near IR LED+ 4 far IR LED)

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240)

Frame Rate

Main Stream

1080P/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression

G.711a / G.711u(32kbps)/ PCM(128kbps)

Interface

1/1 channel In/Out

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

ONVIF

ONVIF Profile S

Max. User Access

20 users

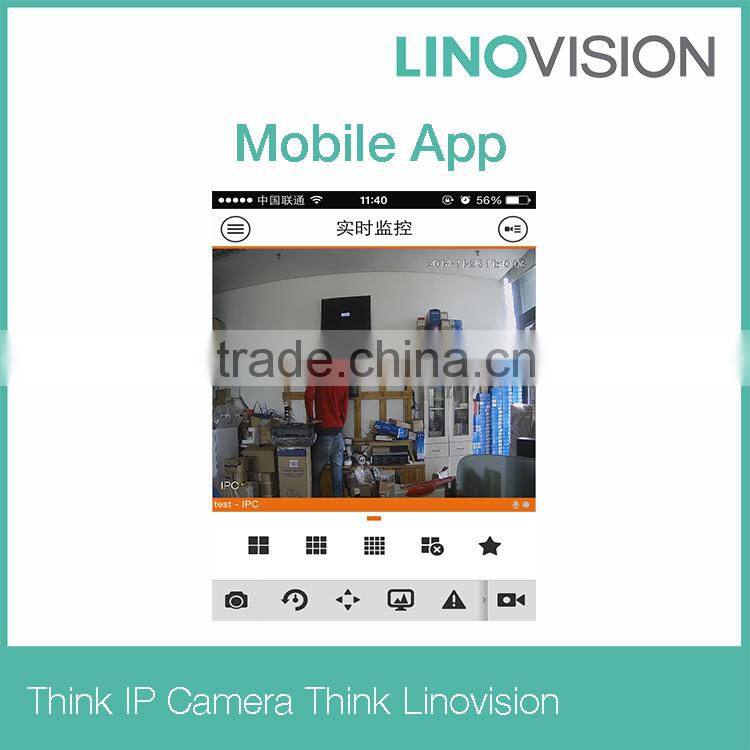

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

RS485

1

Alarm

2/1 channel In/Out

General

Power Supply

AC 24V/2.2A (±10%)

Power Consumption

10.5W, 26W (IR on, Heater on)

Working Environment

-40ºC ~ 60ºC / Less than 90% RH

Ingress Protection

IP66

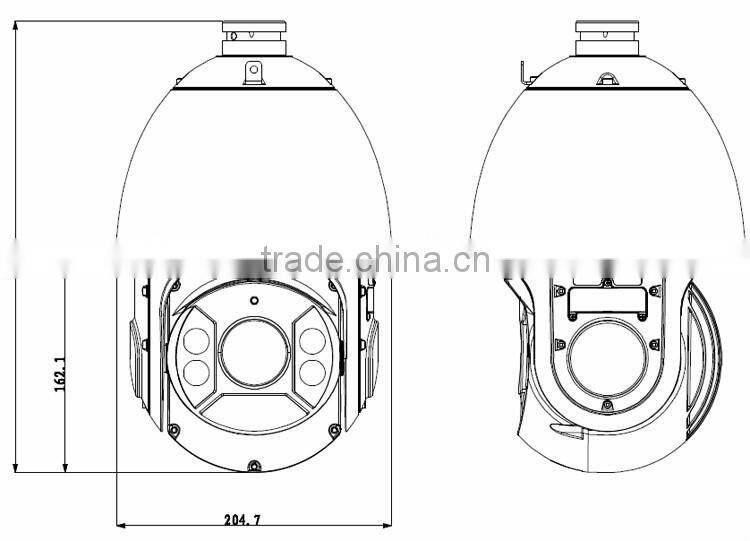

Dimensions

Φ204.7(mm) x 359.9(mm)

Weight

7.8kg
