Help Center2MP 40x Super 300M IR Professional IP PTZ Camera
Related Products
-
2MP 30x Super 300M IR Professional IP PTZ CameraUS$ 1,506 - 1,928MOQ: 1 Piece -
2MP 20x Optical Zoom POE IR Economic IP Speed Dome CameraUS$ 444 - 568MOQ: 1 Piece
-
3MP 20x Optical Zoom IR WDR Outdoor IP Speed Dome CameraUS$ 1,013 - 1,296MOQ: 1 Piece
-
2MP 20x Optical Zoom Outdoor IP Speed Dome CameraUS$ 428 - 547MOQ: 1 Piece
-
3MP 20x Optical Zoom WDR Outdoor IP Speed Dome CameraUS$ 809 - 1,035MOQ: 1 Piece
Model
PTZ-HD79230: 2MP IR Positioning System, Max 60fps@720P and 30fps@1080P resolution, 30x
optical zoom, Pan range 360° endless, DWDR, ICR, Alarm I/O, Audio, SD Card IP PTZ camera
PTZ-HD79240: 2MP IR Positioning System, Max 60fps@720P and 30fps@1080P resolution, 40x
optical zoom, Pan range 360° endless, DWDR, ICR, Alarm I/O, Audio, SD Card IP PTZ camera
Features
> Powerful 30x/40x optical zoom
> Support Triple-stream encoding
> Max 60fps@720P and 30fps@1080P resolution
> Defog, Wiper, DWDR, Ultra DNR, Ultra low bitrate, EIS, ROI, Day/Night(ICR), Auto iris, Auto focus
> Support Auto tracking and IVS
> Pan range: 360° endless, speed up to 160°/s
> Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
> Support intelligent 3D positioning
> IR Distance up to 300m, IP66
> Free CMS, free mobile phone APPs
Specification
Model |
PTZ-HD79230 |
PTZ-HD79240 |
|
Camera | |||
Image Sensor |
1/2.8" Exmor CMOS |
||
Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
||
Min. Illumination |
Color: 0.05Lux: F1.6, B/W: 0.005Lux: F1.6, 0Lux (IR on) |
||
S/N Ratio |
More than 55dB |
||
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
||
Camera Features | |||
Day/Night |
Auto(ICR) / Color / B/W |
||
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
||
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
||
Gain Control |
Auto / Manual |
||
Noise Reduction |
Ultra DNR (2D/3D) |
||
Privacy Masking |
Up to 24 areas |
||
Digital Zoom |
16x |
||
Defog |
On / Off |
||
ROI |
Support |
||
Wiper |
Support |
||
Lens | |||
Focal Length |
4.3mm ~ 129mm |
7.9mm ~ 316mm |
|
Max Aperture |
F1.6 ~ F5.0 |
F1.6 ~ F6.1 |
|
Focus Control |
Auto / Manual |
||
Angle of View |
H: 65.1° ~ 2.34° |
H: 41.5° ~ 1.1° |
|
Close Focus Distance |
100mm ~ 1000mm |
||
PTZ | |||
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° |
||
Manual Control Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s |
||
Preset Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s |
||
Preset |
300 |
||
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
||
Positioning Accuracy |
±0.1° |
||
Speed Setup |
Human-oriented focal length/ speed adaptation |
||
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
||
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
||
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
||
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
||
IR Distance |
300m |
||
Video | |||
Compression |
H.264 / MJPEG |
||
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF |
||
Frame Rate |
Main Stream |
1080P (1 ~ 25/30fps) / 720P(1~50/60fps) |
|
Sub Stream1 |
D1/CIF(1 ~ 25/30fps) |
||
Sub Stream2 |
720P/D1/CIF(1 ~ 25/30fps) |
||
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
||
Audio | |||
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
||
Interface |
1/1 channel In/Out |
||
Intelligent Function | |||
Auto Tracking |
Single-scene, multiple-scene, panorama-scene |
||
IVS |
Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc. |
||
Tracking Trigger Mode |
Manual / Auto (alarm triggered) |
||
Tracking Trigger Event |
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. |
||
Network | |||
Ethernet |
RJ-45 (10/100Base-T) |
||
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
||
Compatibility |
ONVIF PSIA CGI |
||
Max. User Access |
20 users |
||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||
Auxiliary Interface | |||
Memory Slot |
Micro SD, Max 64GB |
||
RS485 |
1 port |
||
Alarm |
7/2 channel In/Out |
||
General | |||
Power Supply |
AC 24V/5A |
||
Power Consumption |
≤100W |
||
Working Environment |
-40ºC ~ 70ºC / Less than 90% RH |
||
Ingress Protection |
IP66, All-metal aluminum alloy, 6000V anti-lightning surge |
||
Dimensions |
391(mm) x 203 (mm) x 472 (mm) |
||
Weight |
10.5Kg |
||

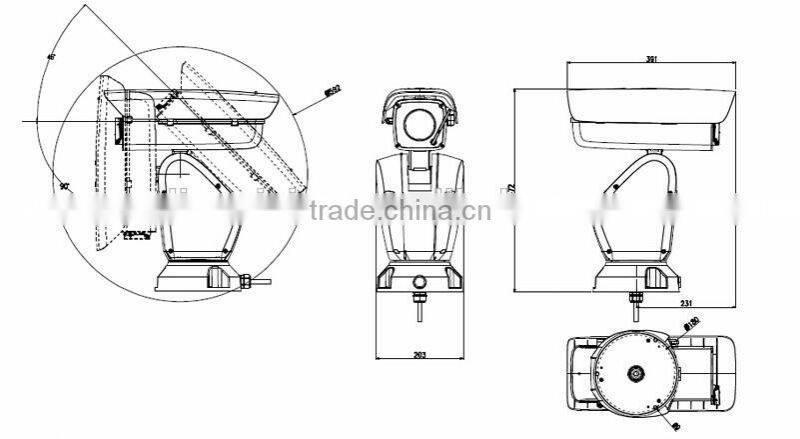

Dimension (mm)
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
