Model

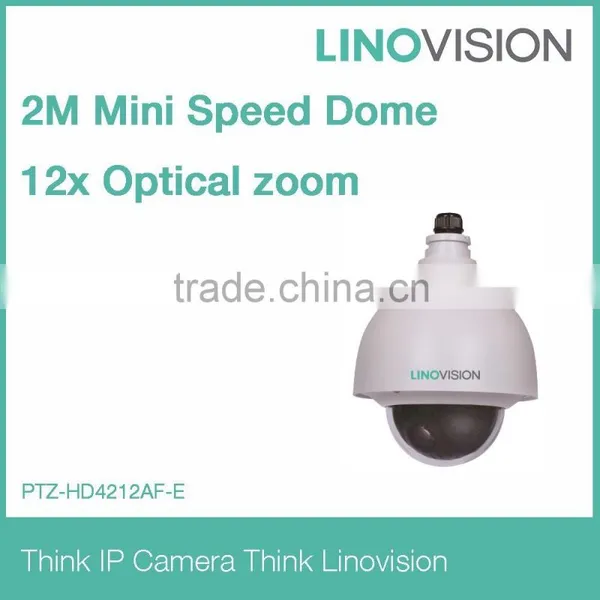

PTZ-HD4212AF-E/BF-E/CF-E: 2.0M CMOS Mini PTZ camera Dome, 25/30fps: 1920x1080, 12x optical zoom, 5.1-61.2mm lens, Support DWDR, ICR Day/Night, IP66, POE+ PTZ camera price
Feature
> Powerful 12x optical zoom(5.1 mm~61.2mm)
> Max. 25/30fps: 1080P & 50/60fps: 720P
> DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
> Max 300°/s pan speed, 360° continuous pan rotation
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> IP66, POE+

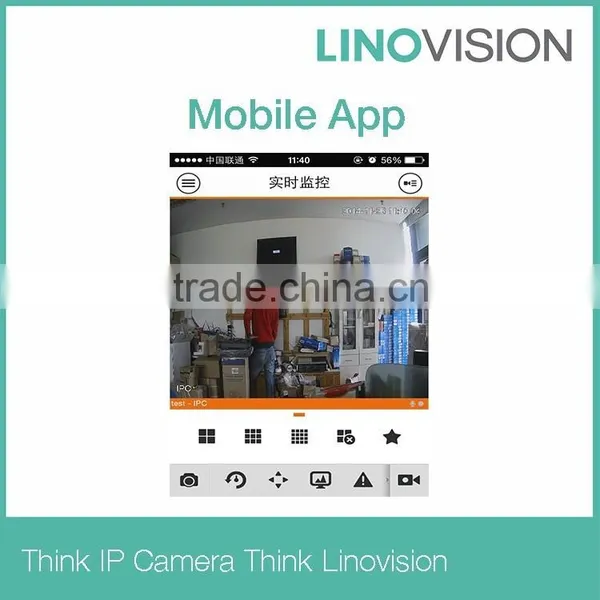

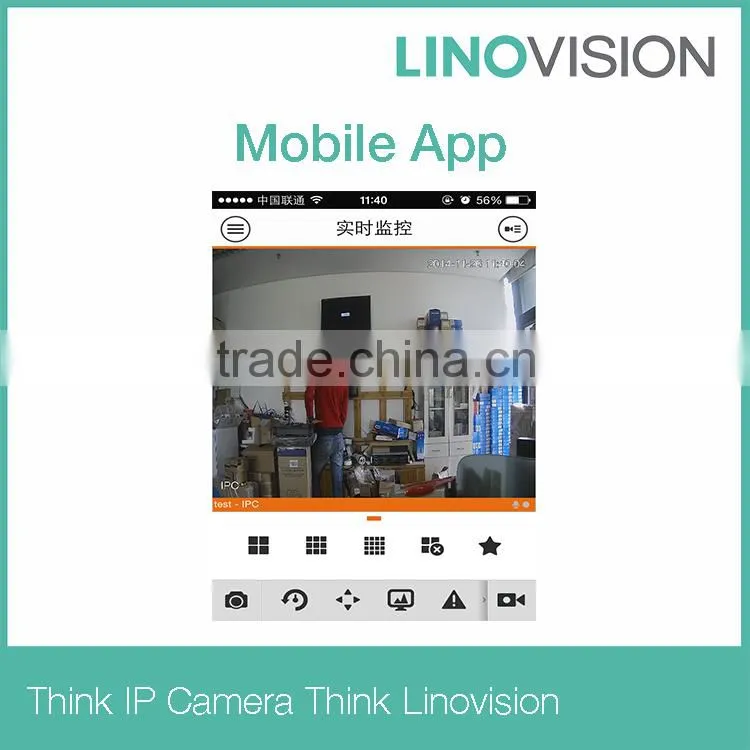

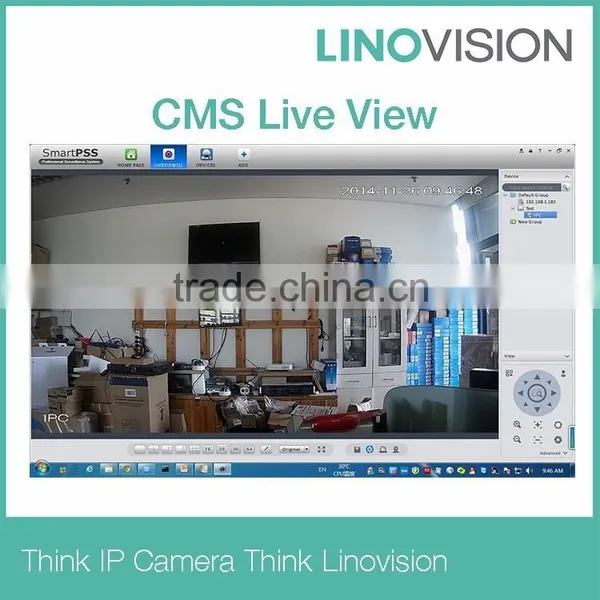

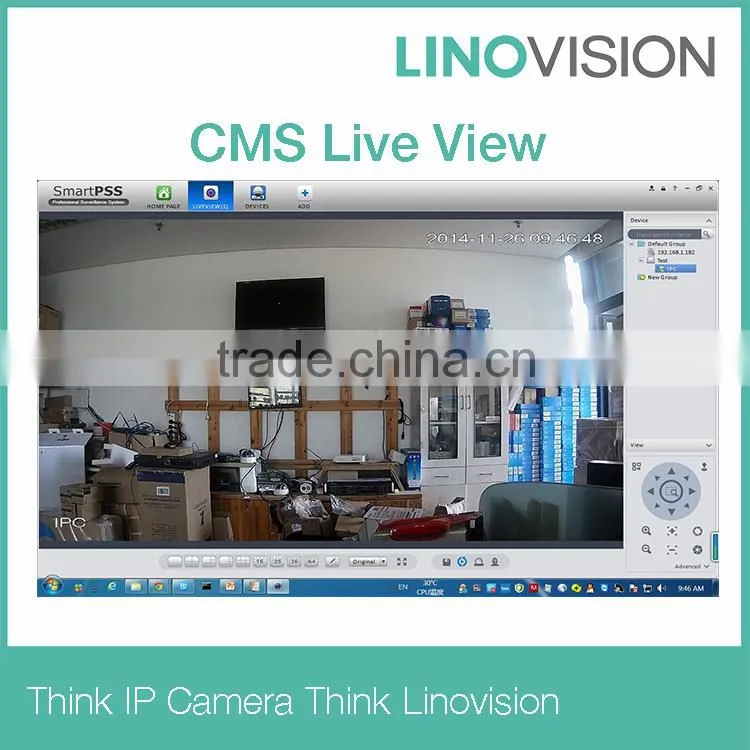

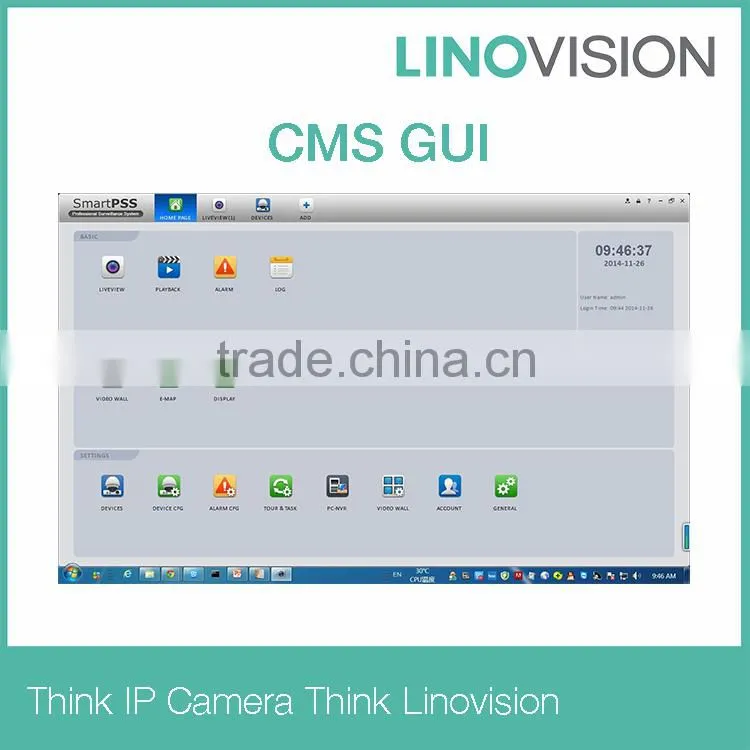

> Free CMS, free mobile phone APPs
Specification
Model |
PTZ-HD4212AF-E |
PTZ-HD4212BF-E |
PTZ-HD4212CF-E |
|
Camera | ||||
Image Sensor |
1/3"ExmorCMOS |
|||
Effective Pixels |
1944(H) x 1092(V),2 Megapixels |
|||
Horizontal Resolution |
>1000TVL |
|||
Scanning System |
Progressive |
|||
Electronic Shutter Speed |
1/3s ~1/30,000s |
|||
Min. Illumination |
Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 |
|||
S/N Ratio |
More than 55dB |
|||
Video Output |
BNC(1.0Vp-p/75Ω), PAL/NTSC |
|||
Camera Features | ||||
Day/Night |
Auto(ICR) / Color / B/W |
|||
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|||
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|||
Gain Control |
Auto / Manual |
|||
Noise Reduction |
2D / 3D |
|||
Privacy Masking |
Up to 24 areas |
|||
Digital Zoom |
16x |
|||
Lens | ||||
Focal Length |
5.1 mm~61.2mm (12x Optical zoom) |
|||
Max Aperture |
F1.2~ F2.1 |
|||
Focus Control |
Auto / Manual |
|||
Angle of View |
51.3° ~ 4.64° |
|||
Close Focus Distance |
100mm~1000mm |
|||
PTZ | ||||
Pan/Tilt Range |
Pan: 0° ~ 360°endless;Tilt: -2° ~ 90°, auto flip 180° |
|||
Manual Control Speed |
Pan: 0.1° ~ 300°/s;Tilt: 0.1° ~120°/s |
|||
Preset Speed |
Pan:300°/s;Tilt:200°/s |
|||
Preset |
80(DH-SD) , 255(Pelco-P/D) |
|||
PTZ Mode |
5 Pattern, 8 Tour, 5Auto Scan, Auto Pan |
|||
Speed Setup |
Human-oriented focal length/ speed adaptation |
|||
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|||
Idle Motion |
Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
|||
Time Task |
Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time |
|||
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|||
Video | ||||
Compression |
H.264 / MJPEG |
|||
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|||
Frame Rate |
Main Stream |
1080P/D1 (1 ~ 25/30fps) /720P(1~50/60fps) |
||
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|||
Bit Rate |
H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|||
Audio | ||||
Compression |
G.711a / G.711u (32kbps) / PCM (128kbps) |
|||
Interface |
1/1 channel In/Out |
|||
Network | ||||
Ethernet |
RJ-45 (10/100Base-T) |
|||
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|||
ONVIF |
ONVIF Profile S |
|||
Max. User Access |
20 users |
|||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||
Auxiliary Interface | ||||
Memory Slot |
Micro SD, Max 64GB |
|||
RS485 |
N/A |
|||
Alarm |
2/1channel In/Out |
|||
General | ||||
Power Supply |
AC24V/1.5A(±10%), POE+(802.3at) |
|||
Power Consumption |
12W, 22W(Heater on) |
12W |
||
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
-10ºC ~ 60ºC / Less than 90% RH |
||
Ingress Protection |
IP66 |
N/A |
||
Vandal Resistance |
IK10 (optional) |
|||
Dimensions |
Φ186mm×234mm |
Φ170mm×155mm |
Φ198mm×158mm |
|
Weight |
2.3Kg |
1.8Kg |
2.3Kg |
|

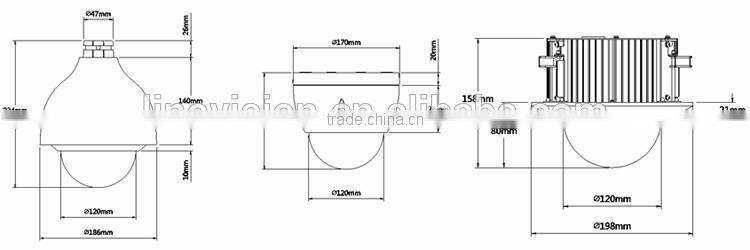

Dimension (mm)
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
